NOTES:

Part #	Number on image	Usage Notes
404-000-126	27	P/N sold per metre please specify length required

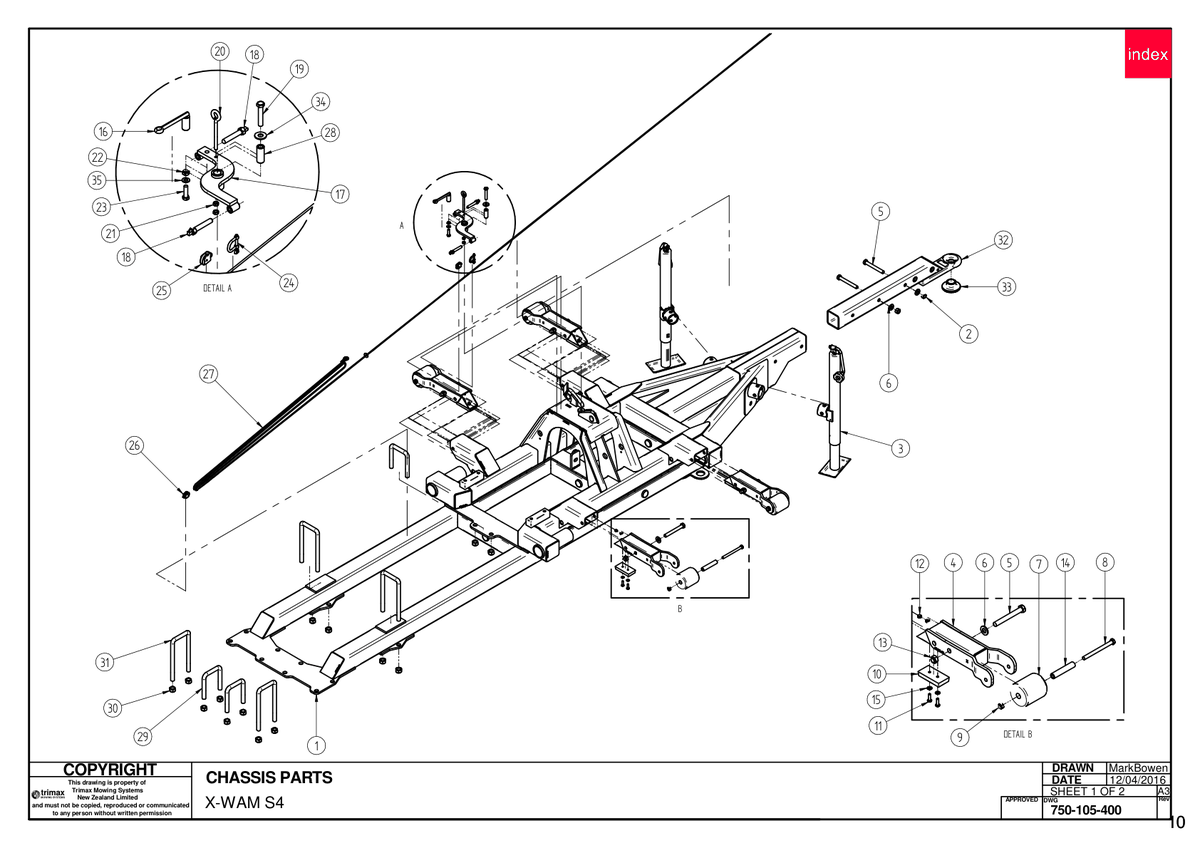

750 - X-WAM S1 1040 - Chassis Parts

X-WAM S1 1040

Grouped product items
No.	Product Name	Price
2	Nut - Plain 307-216-013 More Info >	£1.01
3	Parking Jack Assembly 418-000-217 More Info >	£280.98
4	Guide Roller Arm Welded Assembly 418-000-418 More Info >	£245.94
5	Bolt - Hex Head - M16 x 130 - Trimax Specification 301-616-133 More Info >	£5.86
6	Washer - Heavy Flat 308-160-063 More Info >	£0.58
7	Guide Roller 418-844-120 More Info >	£47.99
8	Bolt - Hex Head - M12 x 140 - Trimax Specification 301-612-143 More Info >	£5.39
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
10	Buffer Pad 418-840-300 More Info >	£17.80
11	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	£0.65
12	Nut - Nyloc 307-208-056 More Info >	£0.53
13	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
14	Bush 402-844-130 More Info >	£16.69
15	Washer - Flat 308-080-016 More Info >	£0.33
16	Release Rope Mount Weldment 418-840-680 More Info >	£42.44
18	Release Lever Pin Assembly 419-000-013 More Info >	£13.05
19	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	£2.39
21	Nut - Plain 307-208-013 More Info >	£0.33
22	Nut - Nyloc 307-210-053 More Info >	£0.53
23	Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353 More Info >	£0.91
24	Bow Shackle - Stainless - Ø6mm 214-446-250 More Info >	£6.34
27	Release Rope 11m i See notes section for usage notes on this part 404-000-126	Price on Request
28	Bush 402-840-650 More Info >	£17.53
29	U-Bolt 215-840-400 More Info >	£34.42
30	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
31	U-Bolt 215-840-402 More Info >	£65.56
32	Drawbar Weldment 418-844-020 More Info >	£361.91
33	Wear Bush - Tow Eye 402-840-130 More Info >	£40.86
34	Washer - Heavy Flat 308-120-063 More Info >	£0.33
35	Washer - Flat 308-100-013 More Info >	£0.33
