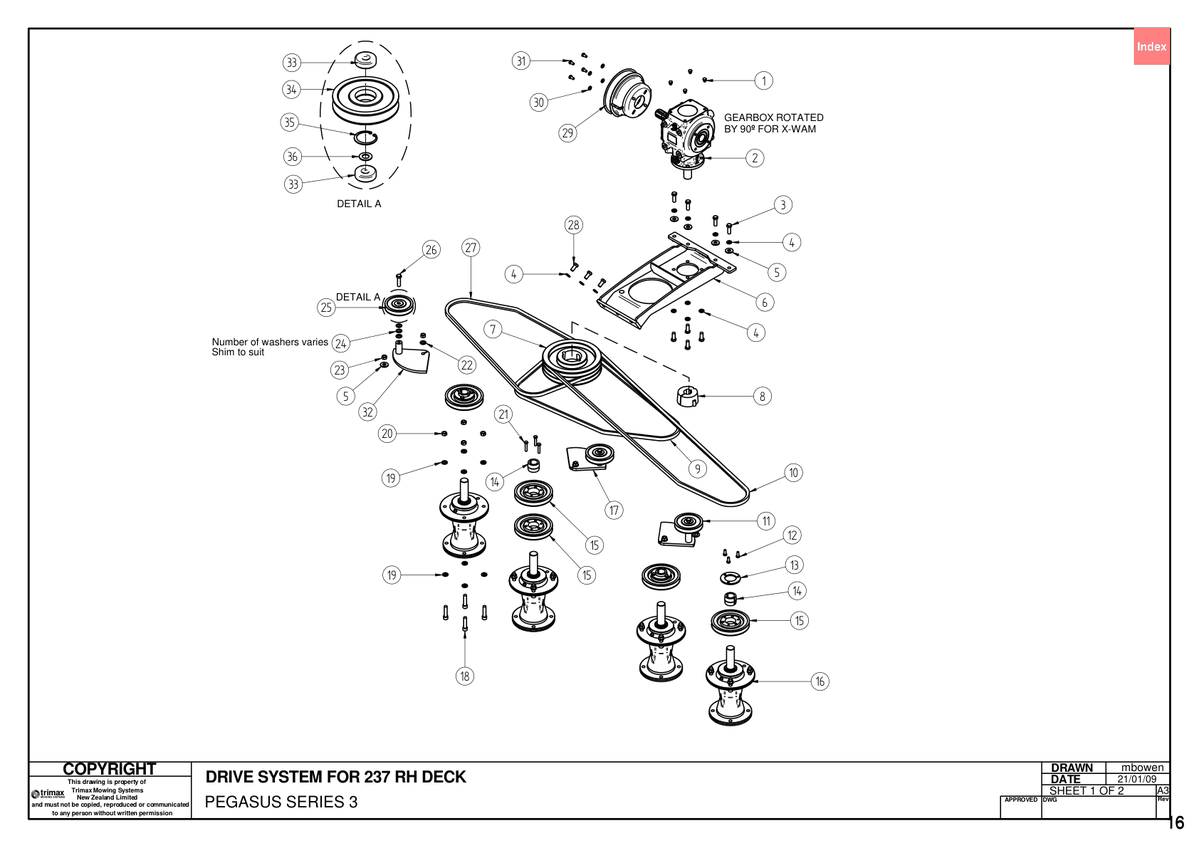

750 - X-WAM S1 1040 - Drive System 237 RH Deck

X-WAM S1 1040

Grouped product items
No.	Product Name	Price
1	Blanking Plug - M12 209-900-012 More Info >	£0.91
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
5	Washer - Heavy Flat 308-120-063 More Info >	£0.33
6	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	£226.19
7	Pulley 403-000-038 More Info >	£174.20
8	Bush - Taper Lock 402-060-820 More Info >	£31.05
9	Vee Belt - Trimax Specification 404-040-750 More Info >	£20.01
10	Vee Belt - Trimax Specification 404-041-150 More Info >	£33.16
11	Idler Quadrant Assembly 504-330-414 More Info >	£87.95
12	Set Screw 313-208-203 More Info >	£1.02
13	Retainer Ring 402-060-450 More Info >	£6.66
14	Bush 402-060-320 More Info >	£20.19
15	Pulley 403-360-300 More Info >	£35.19
16	Spindle Assembly - Type 5a Ext 50mm 504-328-042 More Info >	Price on Request
17	Idler Quadrant Assembly 504-330-416 More Info >	£137.30
18	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	£2.01
19	Washer - Hardened 108-071-513 More Info >	£1.69
20	Nut - Plain 307-212-010 More Info >	£0.83
21	Set Screw 313-208-403 More Info >	Price on Request
23	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
24	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
25	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
26	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	£1.64
28	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	£1.16
29	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
30	Washer - Flat 308-080-013 More Info >	£0.33
31	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
32	Idler Tower Incl Base 403-330-432 More Info >	£39.97
33	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
34	Pulley - Idler 403-360-110 More Info >	£20.59
35	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
36	Washer - Flat 108-071-413 More Info >	£1.22
