NOTES:

Part #	Number on image	Usage Notes
408-000-030	31	Seal Kit 408-000-032 inc all seals for head and piston
408-000-034	32	From 750-105-001-0008 onwards the ram spear end was changed to a 7/8" set screw (refer to SB40) Ram spear incl Piston and Piston Seals p/n 408-000-034 Ram Head 408-000-052 inc seals

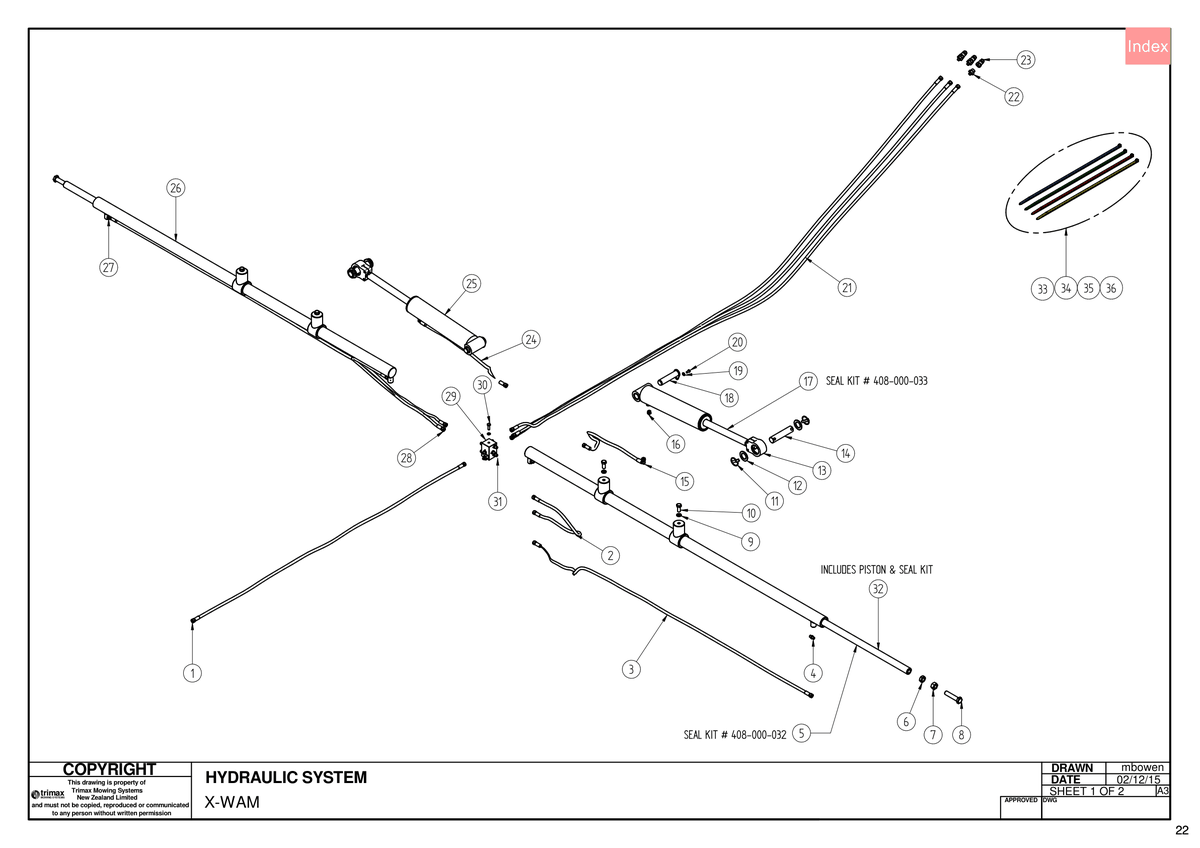

750 - X-WAM S1 1040 - Hydraulic System

X-WAM S1 1040

Grouped product items
No.	Product Name	Price
1	Hose Assembly 409-000-049 More Info >	Price on Request
2	Hose Assembly 409-000-047 More Info >	Price on Request
3	Hose Assembly 409-000-046 More Info >	Price on Request
6	Nut - Half 107-114-023 More Info >	£9.66
7	Nut 450-000-107 More Info >	£19.91
8	Screw 450-000-106 More Info >	£58.22
9	Washer - Spring 308-160-043 More Info >	£0.43
10	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	£2.59
11	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
12	Heavy Washer 402-845-580 More Info >	£10.09
13	Ram End 408-845-330 More Info >	£127.85
14	Pin - Hydraulic Cylinder 419-845-560 More Info >	£29.67
16	Breather 408-448-480 More Info >	Price on Request
17	Ram 409-000-042 More Info >	£1,303.21
18	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	£33.94
19	Washer - Spring 308-100-043 More Info >	£0.33
20	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
21	Hose Assembly 409-448-400 More Info >	£141.47
22	Nipple 408-448-280 More Info >	£12.25
23	Coupling 408-447-580 More Info >	£19.48
30	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
31	Adaptor i See notes section for usage notes on this part 408-000-030 More Info >	Price on Request
32	Spear Inc Piston & Seals i See notes section for usage notes on this part 408-000-034 More Info >	Price on Request
33	Cable Tie - Blue 210-900-015 More Info >	Price on Request
34	Cable Tie - Green 210-900-016 More Info >	Price on Request
35	Cable tie 210-900-017 More Info >	Price on Request
36	Cable tie 210-900-018 More Info >	Price on Request
