NOTES:

Part #	Number on image	Usage Notes
460-000-234	19	Item 19 Includes items 4,5,6,15 & 18 as Kit.

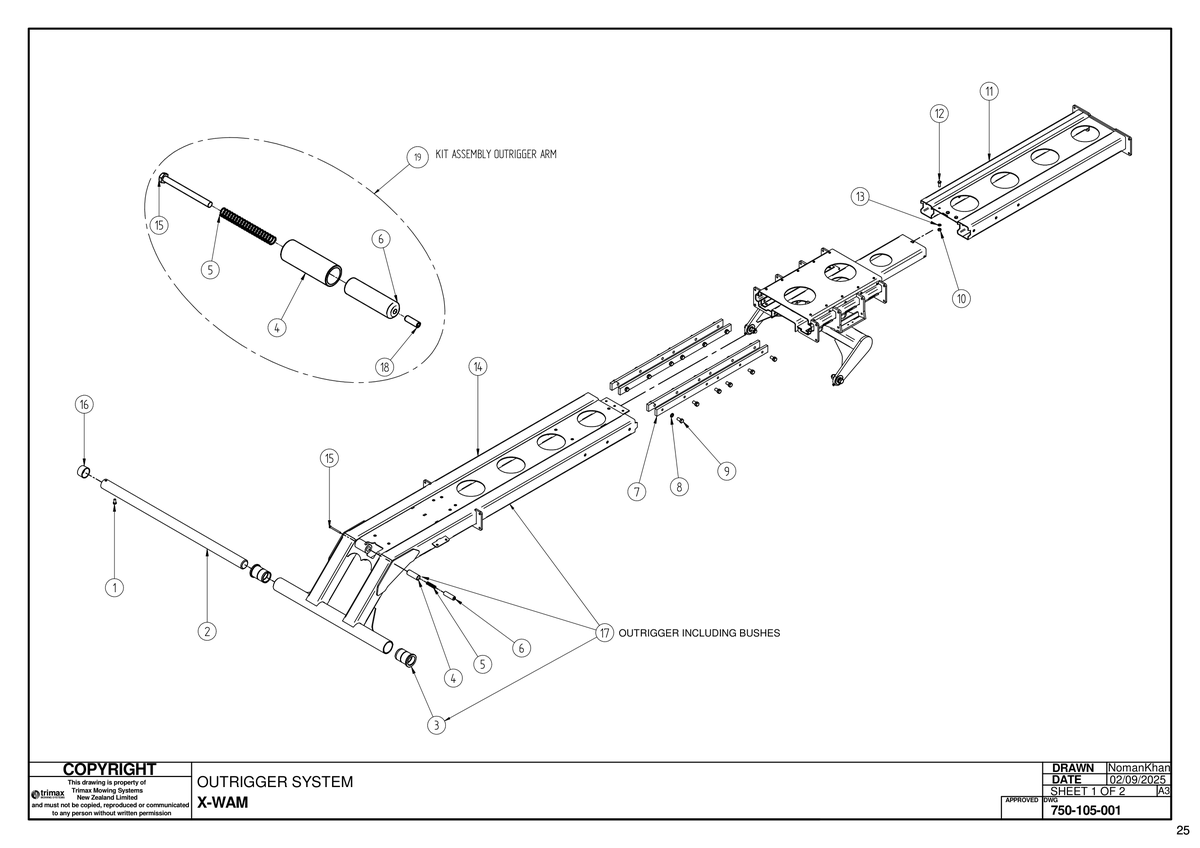

750 - X-WAM S1 1040 - Outrigger System

X-WAM S1 1040

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	£1.16
2	Pin - Outrigger Hinge - Side 419-840-210 More Info >	£196.89
3	Bush 402-840-260 More Info >	£96.34
4	Bush 402-840-710 More Info >	£54.22
5	Spring - Compression 207-840-720 More Info >	£6.13
6	Pin - Transport Lock 419-840-700 More Info >	£67.41
8	Washer - Spring 308-160-043 More Info >	£0.43
9	Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303 More Info >	£2.39
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
12	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
15	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	£5.02
16	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	£5.13
18	Grub Screw 312-208-255 More Info >	£0.80
19	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	£126.90
