NOTES:

Part #	Number on image	Usage Notes
405-200-720	15	For LH offset use counter rotation gearbox: 405-200-721

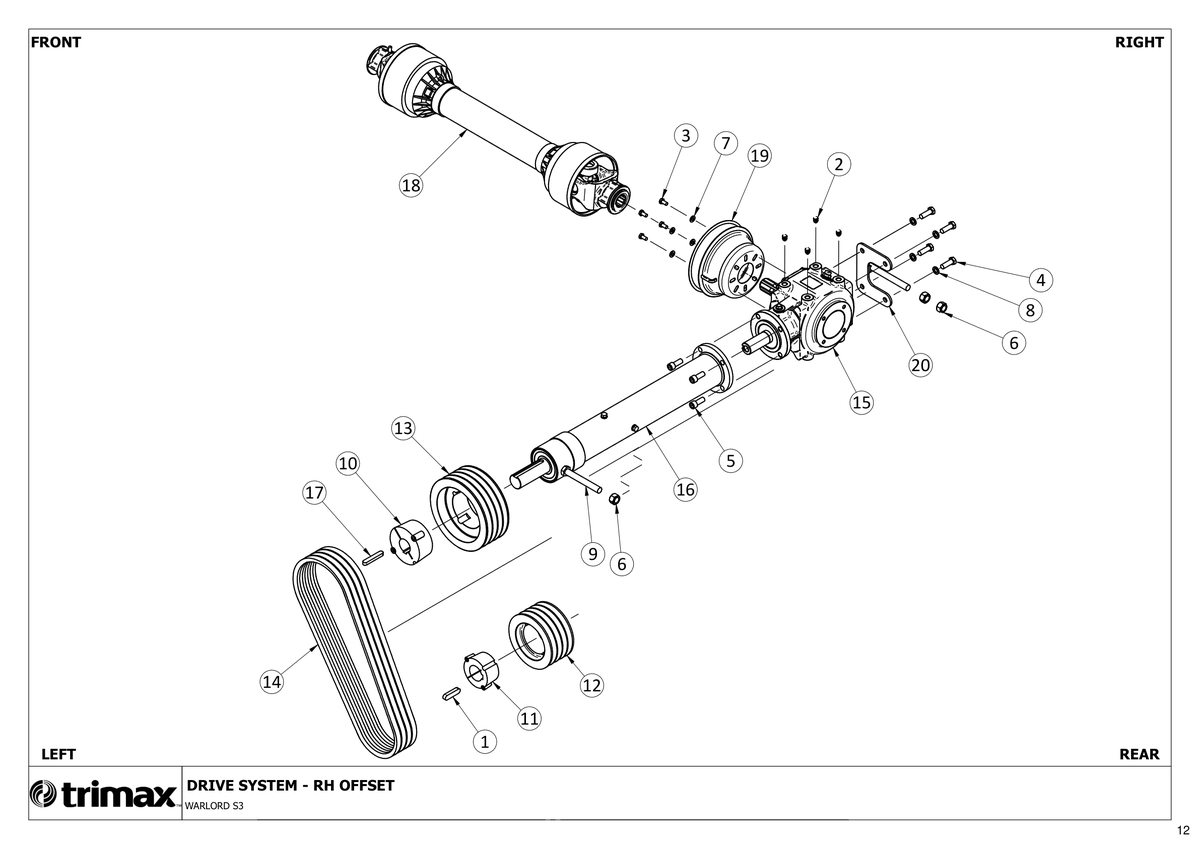

753 - Warlord S3 205 - Drive System

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Key - 14x9mm (Trimax Specification) 205-425-920 More Info >	£8.40
2	Blanking Plug - M12 209-900-012 More Info >	£0.91
3	Bolt 301-208-163 More Info >	£0.53
4	Bolt 301-212-353 More Info >	£1.38
5	Cap Screw 303-212-305 More Info >	£1.87
6	Nut - Plain 307-216-013 More Info >	£1.01
7	Washer - Flat 308-080-016 More Info >	£0.33
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
10	Bush - Taper Lock - 40mm (Trimax Specification) 402-060-710 More Info >	£39.59
11	Bush - Taper Lock - 45mm (Trimax Specification) 402-060-730 More Info >	£31.15
12	Pulley - Taper Lock 403-361-180 More Info >	£121.41
13	Pulley - Taper Lock 403-361-270 More Info >	£131.97
14	Vee Belt 404-040-512 More Info >	£30.52
15	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
16	Extension Shaft Assembly - Gearbox 405-201-780 More Info >	£477.34
17	Key - 12x8mm (Trimax Specification) 405-425-910 More Info >	£7.39
18	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	£391.79
19	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
20	Adjuster 417-000-428 More Info >	£25.45
