NOTES:

Part #	Number on image	Usage Notes
417-001-672	21	Bolted on rear hinge pin used form serial number 753-235-301-1056127 onwards ,Use part number 417-000-190 - Hinge Pin - Flap 235 for welded on pin.

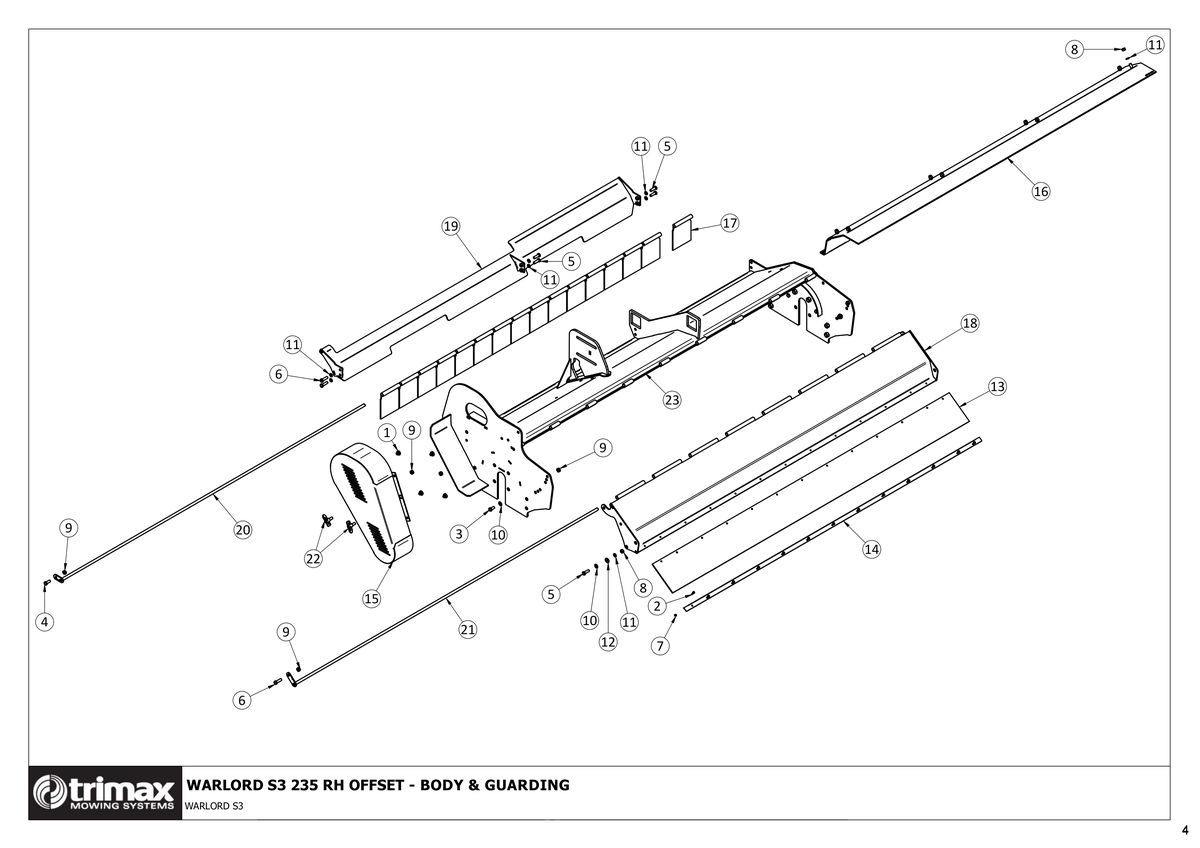

753 - Warlord S3 235 - Body & Guarding - RH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Button - Anti Rattle 209-000-006 More Info >	£7.91
2	Bolt 301-206-203 More Info >	£0.43
3	Bolt 301-212-253 More Info >	£1.16
4	Bolt 301-212-303 More Info >	£1.27
5	Bolt 301-212-353 More Info >	£1.38
6	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
12	Washer - Heavy Flat 308-120-063 More Info >	£0.33
13	Flap 410-480-204 More Info >	£140.31
14	Clamp Strip 410-480-214 More Info >	£70.48
15	Belt Guard Weldment 410-480-441 More Info >	£397.52
16	Body 417-000-494 More Info >	£174.14
17	Flap Weldment - Front WL3 417-001-050 More Info >	£52.89
18	Rear Flap Assembly - 235 Warlord 417-001-078 More Info >	Price on Request
19	Pruning Guide Weldment - RH Offset 235 417-001-083 More Info >	£315.56
20	Hinge Rod Weldment - Front Flap 235 Warlord S3 417-001-096 More Info >	£37.01
21	Hinge Rod Weldment - Rear Flap 235 Warlord S3 i See notes section for usage notes on this part 417-001-672 More Info >	Price on Request
22	Drop Latch - Anti-loose 423-080-400 More Info >	£14.99
23	Body Weldment - Warlord S3 RH Offset 235 502-000-099 More Info >	Price on Request
