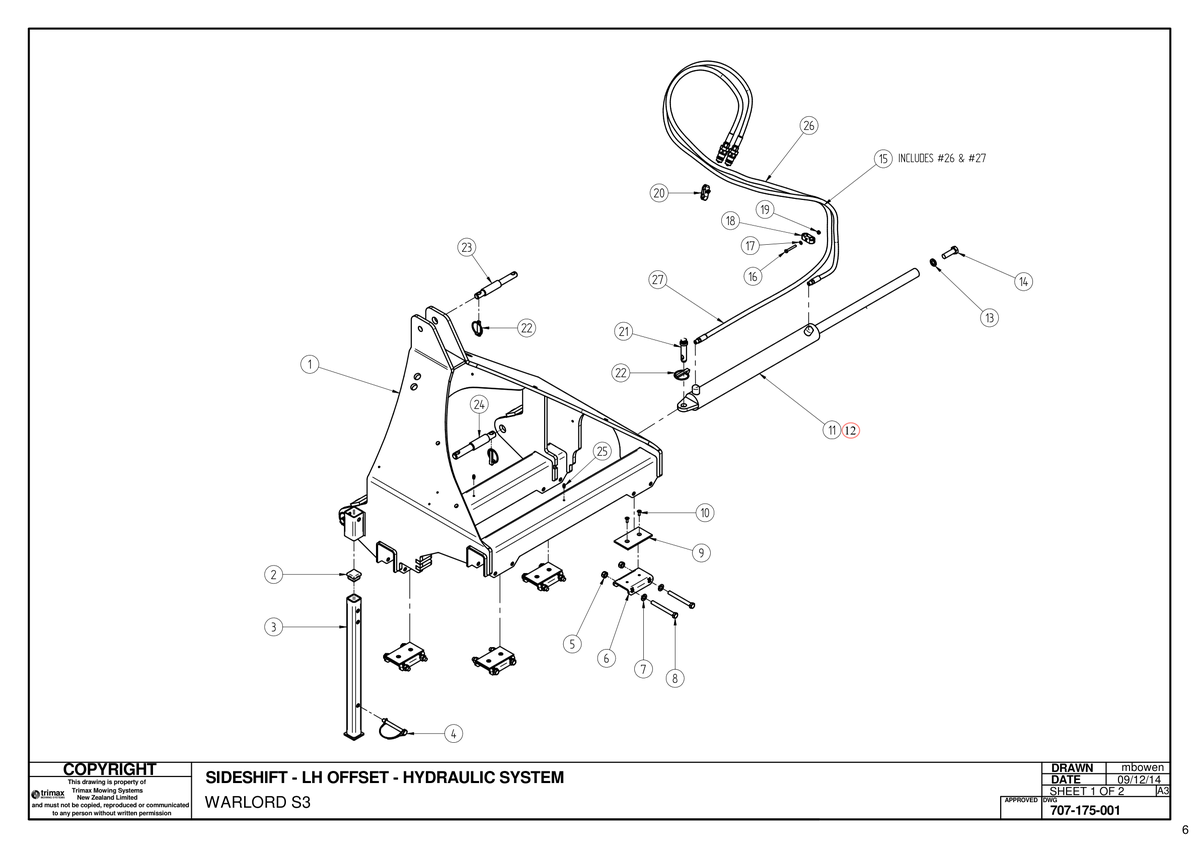

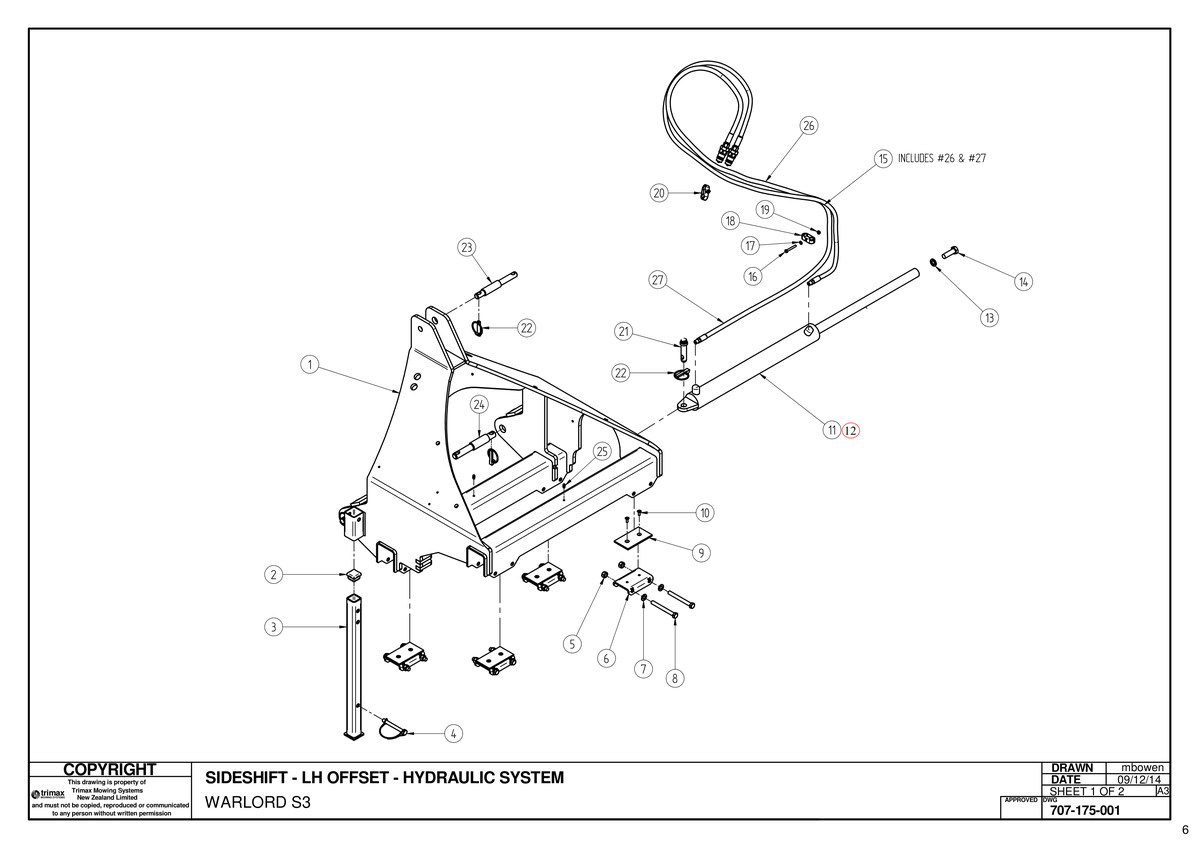

753 - Warlord S3 235 - Hydraulic System LH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
2	Cap - Tube Insert Square 209-480-661 More Info >	£4.66
3	Stand - Front 413-000-073 More Info >	£62.72
4	Pin 406-346-410 More Info >	£6.29
5	Nut - Nyloc 307-212-053 More Info >	£0.53
6	Slide Plate - Side Shift 413-000-086 More Info >	£26.08
7	Washer - Flat 308-120-013 More Info >	£0.33
8	Bolt 301-212-113 More Info >	Price on Request
9	Slide Pad - Side Shift 413-000-087 More Info >	£24.92
10	Countersunk Screw 302-206-165 More Info >	£0.58
12	Seal Kit - Side Shift 408-000-062 More Info >	£79.18
13	Washer - Spring 308-160-043 More Info >	£0.43
14	Bolt 301-216-503 More Info >	£2.80
16	Bolt 301-206-453 More Info >	£0.74
17	Washer - Flat 308-060-013 More Info >	£0.27
18	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	£5.28
19	Nut - Nyloc 307-206-053 More Info >	£0.33
20	Bolt 301-206-403 More Info >	£0.58
21	Pin - Top Link 419-000-023 More Info >	£7.77
22	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
23	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	£18.96
24	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
25	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
26	Hydraulic Hose 409-000-068 More Info >	£62.72
27	Hydraulic Hose 409-000-067 More Info >	£60.60
