NOTES:

Part #	Number on image	Usage Notes
301-612-133	8	Bolt M12x130 is stored in the Operators Manual Tube. Used to hold back tensioner when replacing V-Belts.
402-060-710	25	For 1000rpm tractor PTO speed, use taper lock bush 402-060-770
402-060-730	26	For 1000rpm tractor PTO speed, use taper lock bush 402-060-740
403-361-180	29	For 1000rpm tractor PTO speed system, the two belt pulleys are swapped: Item numbers 29 and 30. Different Taper lock bushes are used.
403-361-270	30	For 1000rpm tractor PTO speed system, the two belt pulleys are swapped: Item numbers 29 and 30. Different Taper lock bushes are used.
417-002-195	37	Service Tool. Used to ease re-assembly of the belt tensioning spring.

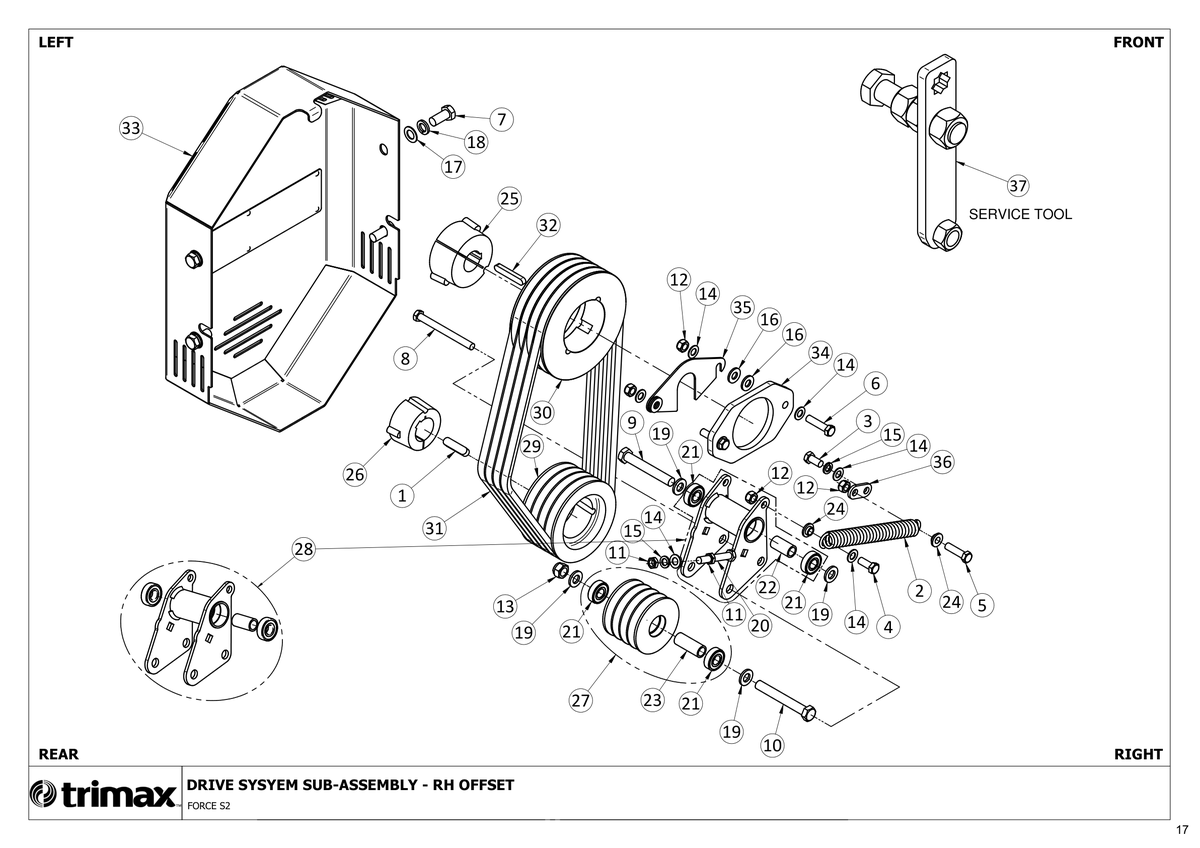

754-145 - Force S2 - Drive System Sub-Assembly - RH Offset

Force S2 145

Grouped product items
No.	Product Name	Price
1	Key 205-425-920 More Info >	£8.40
2	Spring - Tension 207-000-010 More Info >	£26.40
3	Bolt 301-212-253 More Info >	£1.16
4	Bolt 301-212-303 More Info >	£1.27
5	Bolt 301-212-453 More Info >	£1.64
6	Bolt 301-212-503 More Info >	£1.74
7	Bolt 301-216-353 More Info >	£2.59
8	Bolt i See notes section for usage notes on this part 301-612-133 More Info >	£4.35
9	Bolt 301-616-113 More Info >	£4.82
10	Bolt 301-616-123 More Info >	£4.97
11	Nut - Half 307-212-023 More Info >	£1.01
12	Nut - Nyloc 307-212-053 More Info >	£0.53
13	Nut - Nyloc 307-216-053 More Info >	£1.16
14	Washer - Flat 308-120-013 More Info >	£0.33
15	Washer - Spring 308-120-043 More Info >	£0.33
16	Washer - Heavy Flat 308-120-063 More Info >	£0.33
17	Washer - Flat 308-160-013 More Info >	£2.06
18	Washer 308-160-043 More Info >	£0.43
19	Transport Washer - Hardened - M16 - Force 308-160-093 More Info >	£0.38
20	Set Screw - M12x80mm 313-212-803 More Info >	Price on Request
21	Idler Bearing - 6203LLC3 NSK - Force 401-000-037 More Info >	£12.39
22	Idler Arm - Spacer Bush - Force 402-000-120 More Info >	£20.59
23	Idler Pulley - Spacer Bush - Force 402-000-126 More Info >	£24.81
24	Bush - Tensioner Spring 402-000-178 More Info >	Price on Request
25	Bush i See notes section for usage notes on this part 402-060-710 More Info >	£39.59
26	Bush i See notes section for usage notes on this part 402-060-730 More Info >	£31.15
27	16 Pulley - Ø100x4 403-000-201 More Info >	Price on Request
28	Tensioner Arm Assembly 403-000-202 More Info >	Price on Request
29	Pulley i See notes section for usage notes on this part 403-361-180 More Info >	£121.41
30	Pulley i See notes section for usage notes on this part 403-361-270 More Info >	£131.97
31	Vee Belt - 5VX560 or SPBX1410 404-040-542 More Info >	£31.42
32	Key 405-425-910 More Info >	£7.39
33	Belt Guard Assembly - 4 Belt 410-000-660 More Info >	Price on Request
34	Body - Extension Support - Bolt On 417-001-453 More Info >	Price on Request
35	Cover Plate - Extension Shaft Seal 417-002-160 More Info >	Price on Request
36	Spring Link Plate 417-002-162 More Info >	Price on Request
37	Service Tool Kit - Spring i See notes section for usage notes on this part 417-002-195 More Info >	Price on Request
