754-145 - Force S2 - Hydraulic Discharge Flap

Name: Cable Tie - 382x7.5mm - Black [210-900-011]

SKU#: 210-900-011

Price:

Price on Request

Name: Cable Tie - 200x4.8mm - Blue [210-900-015]

SKU#: 210-900-015

Price:

Price on Request

Name: Bolt [301-206-403]

SKU#: 301-206-403

Price:

£0.58

Name: Bolt [301-208-253]

SKU#: 301-208-253

Price:

£0.65

Name: Bolt [301-210-703]

SKU#: 301-210-703

Price:

£1.87

Name: Bolt [301-212-303]

SKU#: 301-212-303

Price:

£1.27

Name: Bolt [301-220-703]

SKU#: 301-220-703

Price:

£5.49

Name: Bolt [301-220-853]

SKU#: 301-220-853

Price:

£7.45

Name: Nut - Nyloc [307-206-053]

SKU#: 307-206-053

Price:

£0.33

Name: Nut - Nyloc [307-210-053]

SKU#: 307-210-053

Price:

£0.53

Name: Nut - Nyloc [307-220-053]

SKU#: 307-220-053

Price:

£1.38

Name: Washer - Flat [308-060-013]

SKU#: 308-060-013

Price:

£0.27

Name: Washer - Flat [308-080-013]

SKU#: 308-080-013

Price:

£0.33

Name: Washer - Spring [308-080-043]

SKU#: 308-080-043

Price:

£0.33

Name: Washer - Flat [308-100-013]

SKU#: 308-100-013

Price:

£0.33

Name: Washer - Flat [308-120-013]

SKU#: 308-120-013

Price:

£0.33

Name: Washer - Spring [308-120-043]

SKU#: 308-120-043

Price:

£0.33

Name: Washer - Flat [308-200-013]

SKU#: 308-200-013

Price:

£0.85

Name: Double Hose Clamp [408-000-055]

SKU#: 408-000-055

Price:

£5.28

Name: Hydraulic Cylinder - Ø1.5"xØ0.75"x545/393 [409-000-143]

SKU#: 409-000-143

Price:

Price on Request

Name: Hydraulic Hose Kit - Hydraulic Flap [409-000-144]

SKU#: 409-000-144

Price:

Price on Request

Name: Rear Flap Weldment - Hydraulic Centre Mount RH Offset - 145 [417-002-076]

SKU#: 417-002-076

Price:

Price on Request

Name: Upper Mount Weldment - Hydraulic Flap - Powder Coated [417-002-149]

SKU#: 417-002-149

Price:

Price on Request

Name: Stroke Limiter Weldment - Powder Coated [417-002-153]

SKU#: 417-002-153

Price:

Price on Request

Name: Spiral Tie - For Hydraulic Lines Plastic Black [450-900-014]

SKU#: 450-900-014

Price:

£23.76

Trimax Parts Shop.

Trimax Kits

Quick Order

Trimax Customer Centre.

Identify your Mower

Customer App

Trimax Dealer Centre.

Dealer App

Trimax Academy

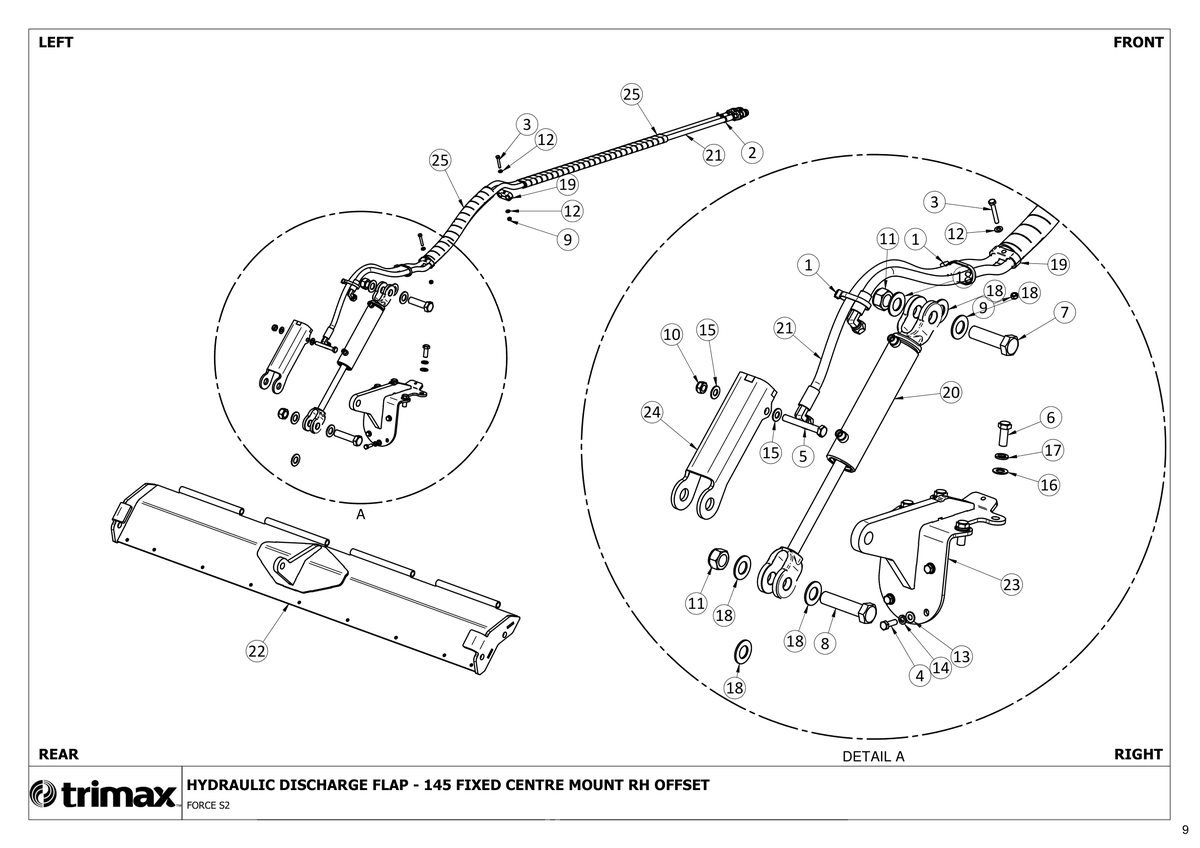

754-145 - Force S2 - Hydraulic Discharge Flap - Rear Mount

No.	Product Name	Price
1	Cable Tie - 382x7.5mm - Black 210-900-011 More Info >	Price on Request
2	Cable Tie - 200x4.8mm - Blue 210-900-015 More Info >	Price on Request
3	Bolt 301-206-403 More Info >	£0.58
4	Bolt 301-208-253 More Info >	£0.65
5	Bolt 301-210-703 More Info >	£1.87
6	Bolt 301-212-303 More Info >	£1.27
7	Bolt 301-220-703 More Info >	£5.49
8	Bolt 301-220-853 More Info >	£7.45
9	Nut - Nyloc 307-206-053 More Info >	£0.33
10	Nut - Nyloc 307-210-053 More Info >	£0.53
11	Nut - Nyloc 307-220-053 More Info >	£1.38
12	Washer - Flat 308-060-013 More Info >	£0.27
13	Washer - Flat 308-080-013 More Info >	£0.33
14	Washer - Spring 308-080-043 More Info >	£0.33
15	Washer - Flat 308-100-013 More Info >	£0.33
16	Washer - Flat 308-120-013 More Info >	£0.33
17	Washer - Spring 308-120-043 More Info >	£0.33
18	Washer - Flat 308-200-013 More Info >	£0.85
19	Double Hose Clamp 408-000-055 More Info >	£5.28
20	Hydraulic Cylinder - Ø1.5"xØ0.75"x545/393 409-000-143 More Info >	Price on Request
21	Hydraulic Hose Kit - Hydraulic Flap 409-000-144 More Info >	Price on Request
22	Rear Flap Weldment - Hydraulic Centre Mount RH Offset - 145 417-002-076 More Info >	Price on Request
23	Upper Mount Weldment - Hydraulic Flap - Powder Coated 417-002-149 More Info >	Price on Request
24	Stroke Limiter Weldment - Powder Coated 417-002-153 More Info >	Price on Request
25	Spiral Tie - For Hydraulic Lines Plastic Black 450-900-014 More Info >	£23.76
