NOTES:

Part #	Number on image	Usage Notes
402-000-134	21	Quantity varies per Idler Arm
403-360-111	26	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 36)
405-200-720	29	For Front Mount, three other gearboxes exist: 405-200-721 540rpm Counter Rotation 405-200-726 1000rpm Standard Rotation 405-200-725 1000rpm Counter Rotation
403-000-167	36	403-000-167 – Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer

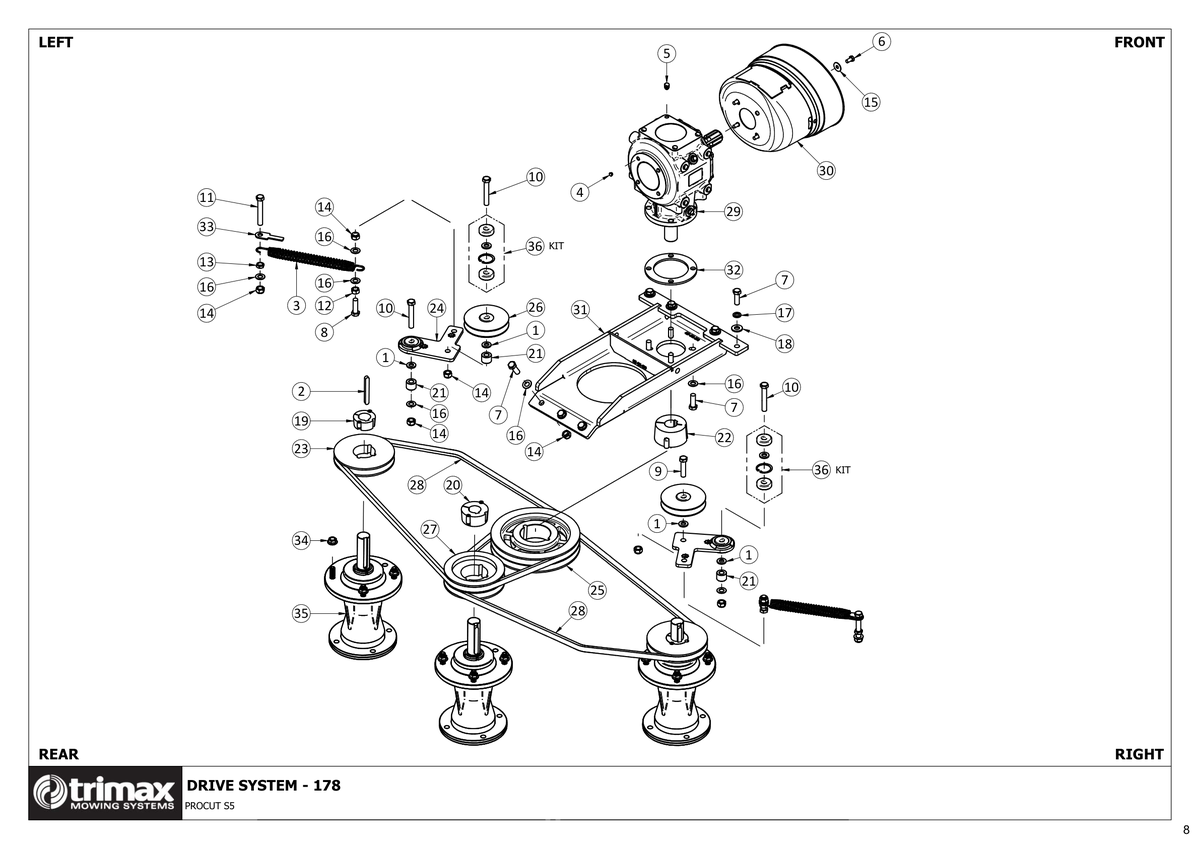

756 - Procut S5 178 - Drive System and Spindle Pulleys

ProCut S5 178

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	£2.97
3	Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - 207-000-009 More Info >	£12.42
4	Blanking Plug - M8 209-000-029 More Info >	£0.50
5	Blanking Plug - M12 209-900-012 More Info >	£0.91
6	Bolt 301-208-163 More Info >	£0.53
7	Bolt 301-212-353 More Info >	£1.38
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
9	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	£1.74
10	Bolt 301-212-753 More Info >	£2.54
11	Bolt 301-212-803 More Info >	£2.75
12	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
13	Nut - Half 307-212-023 More Info >	£1.01
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
15	Washer - Fender - M8 308-080-073 More Info >	£0.33
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
17	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
18	Washer - Heavy Flat 308-120-063 More Info >	£0.33
19	Bush - Taper Lock 402-000-078 More Info >	£13.47
20	Bush - Taper Lock 402-000-090 More Info >	£17.22
21	Idler Arm Spacer Bush - 19mm i See notes section for usage notes on this part 402-000-134 More Info >	£12.42
22	Bush - Taper Lock 402-060-820 More Info >	£31.05
23	Pulley - Taper Lock 403-000-083 More Info >	£50.73
25	Pulley - Taper Lock Ø224 SPB x 2 403-000-130 More Info >	£90.45
26	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	£45.50
27	Pulley - Taper Lock 403-361-140 More Info >	£53.47
28	Vee Belt - B75 - Trimax Specification - 404-040-750 More Info >	£20.01
29	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
30	PTO Cone - Wide angle - 52mm PCD 410-000-608 More Info >	£36.53
31	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
32	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
34	Nut - Flange 450-000-078 More Info >	£1.80
35	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	£473.49
36	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	£20.62
