NOTES:

Part #	Number on image	Usage Notes
502-000-229	27	For body weldment - Procut S5 210 - galvanized, use p/n: 502-000-233

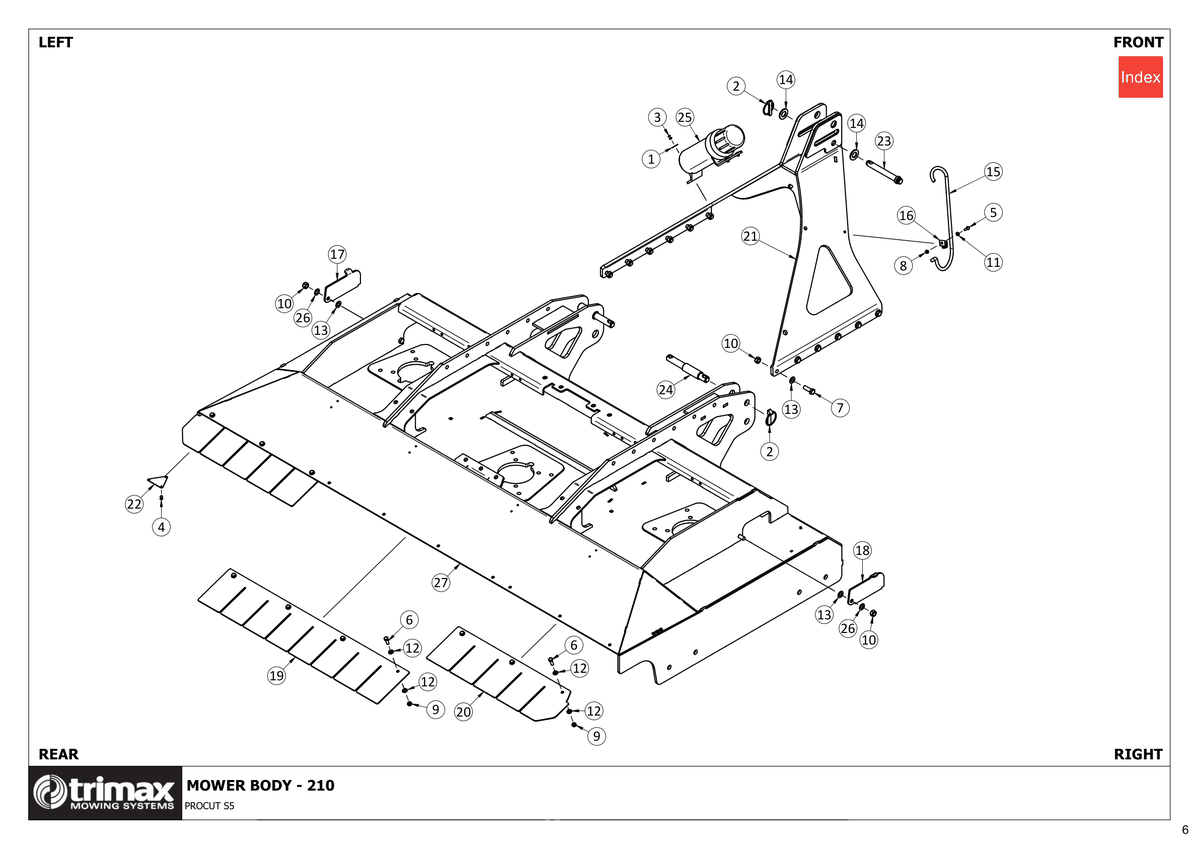

756 - Procut S5 210 - Mower Body

ProCut S5 210

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	£0.33
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Blind Rivet 213-000-004 More Info >	£0.47
4	Blind Rivet 213-443-250 More Info >	£0.28
5	Bolt 301-206-203 More Info >	£0.43
6	Bolt 301-208-253 More Info >	£0.65
7	Bolt 301-212-353 More Info >	£1.38
8	Nut - Nyloc 307-206-053 More Info >	£0.33
9	Nut - Nyloc 307-208-056 More Info >	£0.53
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
11	Washer - Flat 308-060-013 More Info >	£0.27
12	Washer - Flat 308-080-016 More Info >	£0.33
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
15	PTO Hanger 406-000-059 More Info >	£35.90
16	Retainer Clip - PTO Hanger 406-000-060 More Info >	£7.92
17	Wash Panel - RH 410-000-134 More Info >	£19.16
18	Wash Panel - LH 410-000-135 More Info >	£19.16
19	Rear Flap - Inner - 210 - Procut S5 410-000-462 More Info >	£66.76
20	Rear Flap - Outer - Procut S5 410-000-463 More Info >	£25.36
21	Headstock - Weldment - Procut S5 413-000-120 More Info >	£399.35
22	Cap Plate 417-001-024 More Info >	£2.33
23	Pin - Muck Protector 419-000-014 More Info >	£9.97
24	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
25	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	£31.95
26	Washer - Crinkle 450-000-116 More Info >	£1.11
27	Body Weldment - Procut S5 210 - Powdercoated - Procut S5 i See notes section for usage notes on this part 502-000-229 More Info >	Price on Request
28	Decal Sheet - Procut S5 - 210 424-000-317 More Info >	£46.58
29	Decal Sheet - Procut S5 - Common 424-000-320 More Info >	£46.58
