NOTES:

Part #	Number on image	Usage Notes
402-000-134	22	Quantity varies per Idler Arm
403-360-111	27	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 40)
405-200-720	33	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
504-000-133	38	Use Part number 407-000-028 - for Spindle repair kit
403-000-167	40	403-000-167 - Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer
405-000-015	41	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.
405-000-164	42	Locate and supply serial number when ordering new gearbox to order the correct gearbox. All gearboxes are backward compatible, 405-200-720 & 405-000-148 gearboxes should be used with 417-001-300 mount.

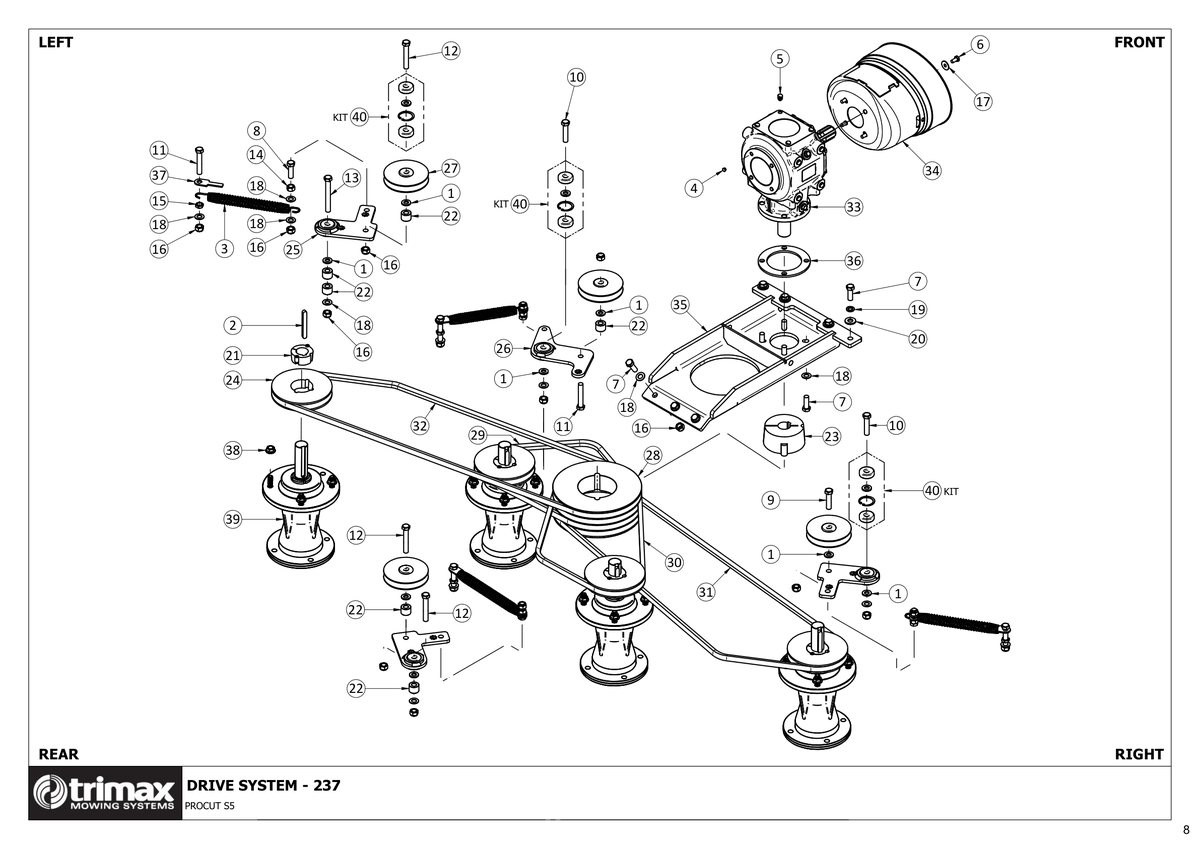

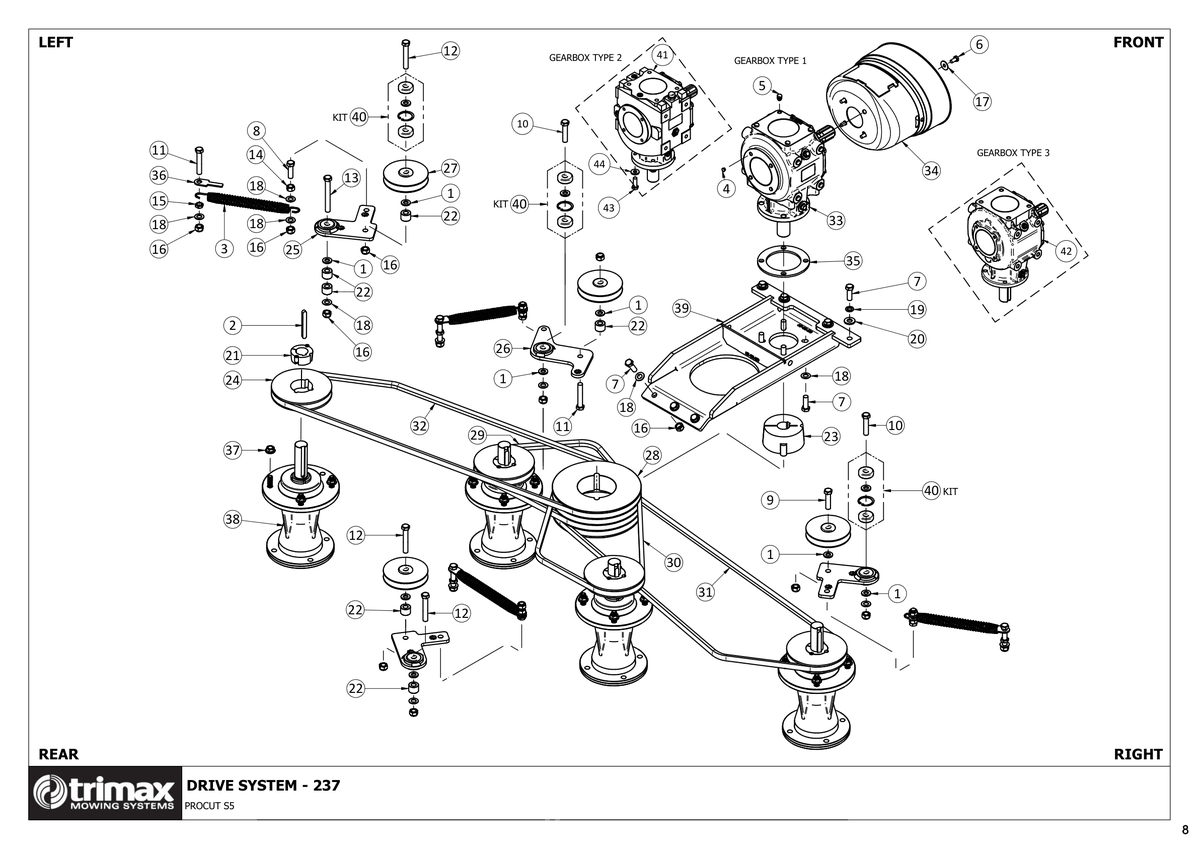

756 - Procut S5 237 - Drive System

ProCut S5 237

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	£2.97
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	£12.42
4	Blanking Plug - M8 209-000-029 More Info >	£0.50
5	Blanking Plug - M12 209-900-012 More Info >	£0.91
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
9	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	£1.74
10	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	£2.27
11	Bolt - Hex Head - M12 x 70 - Trimax Specification 301-212-703 More Info >	£2.39
12	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	£2.54
13	Bolt - Hex Head - M12 x 100 - Trimax Specification 301-612-103 More Info >	£2.64
14	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
15	Nut - Half 307-212-023 More Info >	£1.01
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
17	Washer - Fender - M8 308-080-073 More Info >	£0.33
18	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
19	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
20	Washer - Heavy Flat 308-120-063 More Info >	£0.33
21	Bush - Taper Lock 402-000-078 More Info >	£13.47
22	Idler Arm Spacer Bush - 19mm i See notes section for usage notes on this part 402-000-134 More Info >	£12.42
23	Bush - Taper Lock 402-060-680 More Info >	£43.76
24	Pulley - Taper Lock 403-000-083 More Info >	£50.73
27	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	£45.50
28	Pulley - Taper Lock 403-361-290 More Info >	£160.00
29	Vee Belt - Trimax Specification 404-040-460 More Info >	£15.52
30	Vee Belt - Trimax Specification 404-040-520 More Info >	£16.11
31	Vee Belt - Trimax Specification 404-040-900 More Info >	£25.19
32	Vee Belt - Trimax Specification 404-040-920 More Info >	£27.35
33	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	£644.30
34	PTO Cone - Wide angle - 52mm PCD 410-000-608 More Info >	£36.53
35	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
37	Nut - Flange 450-000-078 More Info >	£1.80
38	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	£473.49
39	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
40	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	£20.62
41	Gearbox i See notes section for usage notes on this part 405-000-015 More Info >	£584.56
42	Gearbox - 540rpm - Trimax Specification i See notes section for usage notes on this part 405-000-164 More Info >	Price on Request
43	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
44	Washer - Heavy Flat 308-100-063 More Info >	£0.33
