NOTES:

Part #	Number on image	Usage Notes
405-000-155	28	Includes 1x each of item #5,6,7,8,25,26 and 2x of item #22 33

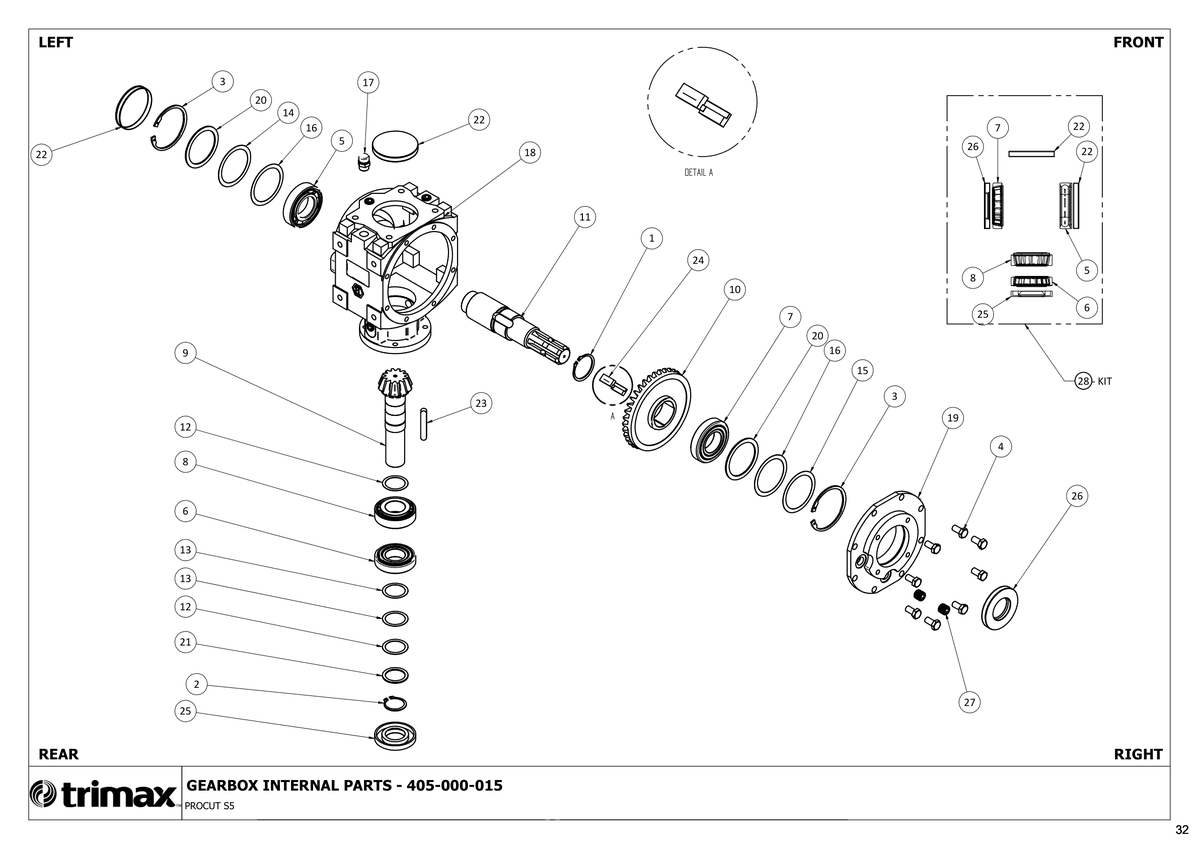

756 - Procut S5 290 - Gearbox Internal Parts - 405-000-015

ProCut S5 290

Grouped product items
No.	Product Name	Price
1	Circlip/Snap Ring - Trimax Specification 204-000-009 More Info >	Price on Request
2	Circlip/Snap Ring - Trimax Specification 204-000-010 More Info >	Price on Request
3	Circlip/Snap Ring 204-446-193 More Info >	£4.50
4	Bolt - Hex Head - M10 x 20 - Trimax Specification 301-210-203 More Info >	£0.58
5	Bearing 401-022-400 More Info >	£42.44
6	Bearing 401-022-490 More Info >	£40.02
7	Bearing 401-022-510 More Info >	£53.00
8	Bearing 401-022-520 More Info >	£49.62
9	Input Shaft 405-000-016 More Info >	£84.89
10	Crown Wheel 405-000-017 More Info >	£81.19
11	Output Shaft 405-000-018 More Info >	£59.39
12	Shim - Small - 0.50mm Benzi R140 & R240 405-000-028 More Info >	Price on Request
13	Shim - Small - 0.20mm Benzi R140 & R240 405-000-029 More Info >	Price on Request
14	Shim - Large - 0.50mm Benzi R140 & R240 405-000-032 More Info >	Price on Request
15	Shim - Large - 0.20mm Benzi R140 & R240 405-000-033 More Info >	Price on Request
16	Shim - Large - 0.35mm Benzi R140 & R240 405-000-034 More Info >	Price on Request
17	Gearbox - Breather - Trimax Specification 405-000-150 More Info >	Price on Request
18	Gearbox - Housing - Trimax Specification 405-000-151 More Info >	Price on Request
19	Gearbox - Top Cover - Trimax Specification 405-000-152 More Info >	Price on Request
20	Shim - Gearbox - Trimax Specification 405-000-153 More Info >	Price on Request
21	Shim - Gearbox - Trimax Specification 405-000-154 More Info >	Price on Request
22	Cap - Gearbox 405-207-151 More Info >	£22.50
23	Gearbox - Key - Trimax Specification 405-207-155 More Info >	Price on Request
24	Gearbox - Key with Spring - Trimax Specification 405-425-961 More Info >	Price on Request
25	Oil Seal - 35x72x10 422-380-300 More Info >	£9.80
26	Oil Seal 422-381-000 More Info >	£11.60
27	Gearbox - Plug - Trimax Specification 405-000-149 More Info >	Price on Request
28	Kit - Gearbox Repair Kit - Trimax Specification i See notes section for usage notes on this part 405-000-155 More Info >	Price on Request
