NOTES:

Part #	Number on image	Usage Notes
405-000-163	25	Includes 1x each of item #5,6,7,8,23,24 and 2x of item #21 35 35

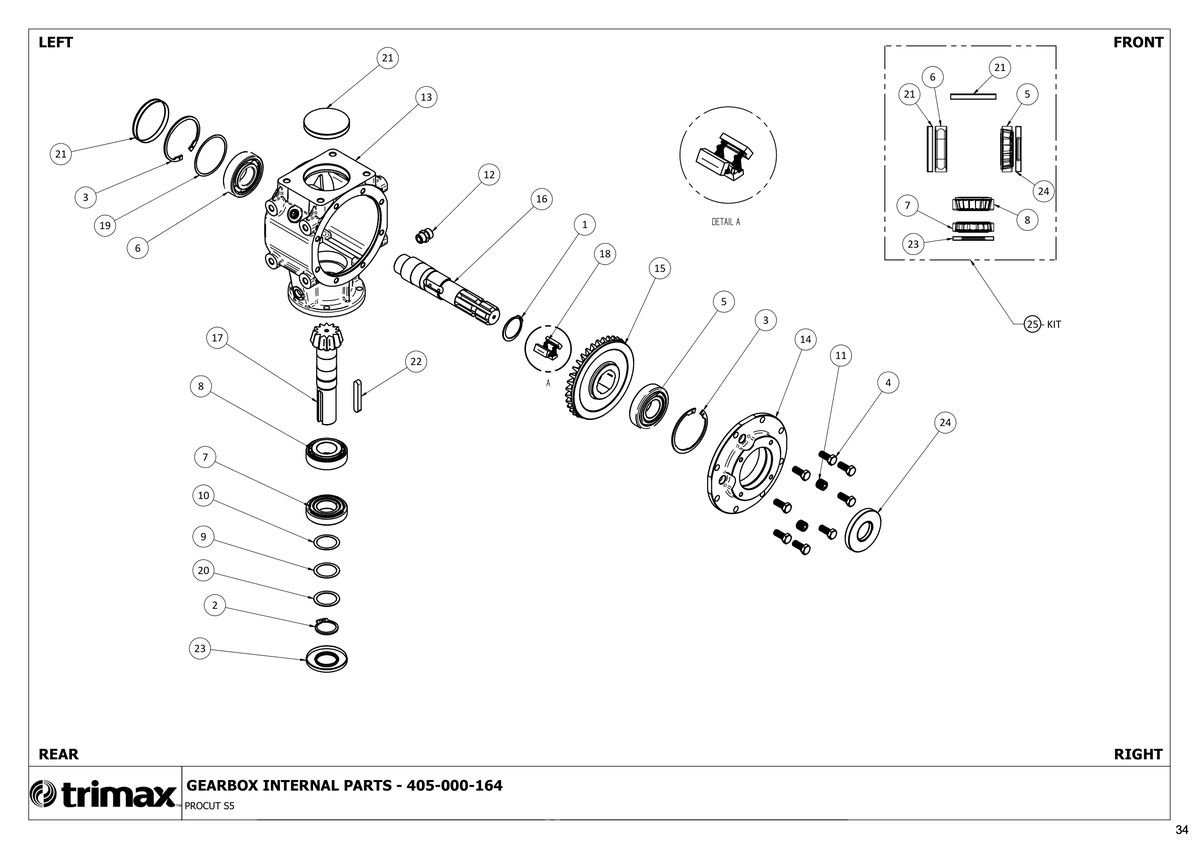

756 - Procut S5 290 - Gearbox Internal Parts - 405-000-164

ProCut S5 290

Grouped product items
No.	Product Name	Price
1	Circlip/Snap Ring - Trimax Specification 204-000-011 More Info >	Price on Request
2	Circlip/Snap Ring - Trimax Specification 204-000-012 More Info >	Price on Request
3	Circlip/Snap Ring 204-446-193 More Info >	£4.50
4	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	£0.74
5	Bearing 401-021-650 More Info >	£35.53
6	Bearing - Trimax Specification 401-022-401 More Info >	Price on Request
7	Bearing 401-022-490 More Info >	£40.02
8	Bearing 401-022-520 More Info >	£49.62
9	Shim - Small - 0.50mm Benzi R140 & R240 405-000-028 More Info >	Price on Request
10	Shim - Small - 0.20mm Benzi R140 & R240 405-000-029 More Info >	Price on Request
11	Gearbox - Plug - Trimax Specification 405-000-149 More Info >	Price on Request
12	Gearbox - Breather - Trimax Specification 405-000-150 More Info >	Price on Request
13	Gearbox - Housing - Trimax Specification 405-000-156 More Info >	Price on Request
14	Gearbox - Top Cover - Trimax Specification 405-000-157 More Info >	Price on Request
15	Gearbox - Crown Wheel - Trimax Specification 405-000-158 More Info >	Price on Request
16	Gearbox - Input Shaft - Trimax Specification 405-000-159 More Info >	Price on Request
17	Gearbox - Output Shaft - Trimax Specification 405-000-160 More Info >	Price on Request
18	Gearbox - Key with Spring - Trimax Specification 405-425-962 More Info >	Price on Request
19	Shim - Gearbox - Trimax Specification 405-000-161 More Info >	Price on Request
20	Shim - Gearbox - Trimax Specification 405-000-162 More Info >	Price on Request
21	Cap - Gearbox 405-207-151 More Info >	£22.50
22	Key - Gearbox 405-207-154 More Info >	£7.97
23	Gearbox - Oil Seal - Output Shaft - Trimax Specification 422-380-301 More Info >	Price on Request
24	Gearbox - Oil Seal - Input Shaft - Trimax Specification 422-381-001 More Info >	Price on Request
25	Kit - Gearbox Repair Kit - Trimax Specification i See notes section for usage notes on this part 405-000-163 More Info >	Price on Request
