NOTES:

Part #	Number on image	Usage Notes
406-000-059	28	Previous models used a wire type PTO hanger part number 404-000-059 which can be replaced by the current one

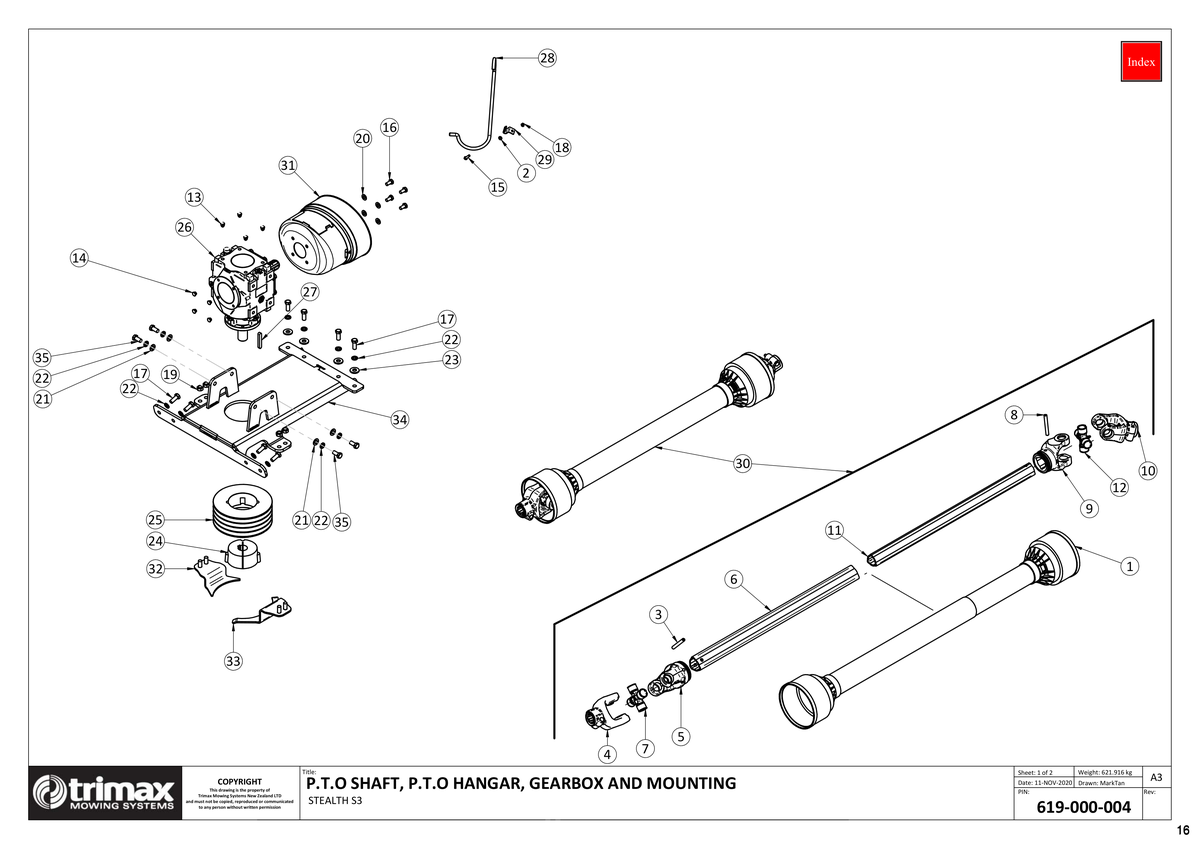

758 - Stealth S3 340 - PTO Shaft, PTO Hanger, Gearbox and Mounting

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	PTO Shaft - Cover Set 406-343-242 More Info >	£131.49
3	PTO Shaft - Yoke (Secure Lock Push Pin) 406-343-200 More Info >	£108.54
4	Yoke - Outer Profile - PTO Shaft 406-343-220 More Info >	£96.39
6	Universal Joint Cross - PTO Shaft 92x92x30 406-344-150 More Info >	£85.99
8	Yoke 403-343-210 More Info >	Price on Request
10	Tube - Inner Profile (45 X 4) Bypy T60 406-343-230 More Info >	Price on Request
12	Blanking Plug - M12 209-900-012 More Info >	£0.91
13	Blanking Plug 209-900-014 More Info >	£2.59
14	Bolt 301-206-253 More Info >	£0.43
15	Bolt 301-210-203 More Info >	£0.58
16	Bolt 301-212-303 More Info >	£1.27
17	Nut - Nyloc 307-206-053 More Info >	£0.33
18	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
19	Washer - Flat 308-060-013 More Info >	£0.27
20	Washer - Flat 308-100-013 More Info >	£0.33
21	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
22	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
23	Washer - Heavy Flat 308-120-063 More Info >	£0.33
24	Bush - Taper Lock 402-060-680 More Info >	£43.76
25	Pulley - Taper Lock 403-361-270 More Info >	£131.97
26	Gearbox 405-000-015 More Info >	£584.56
27	Key - Gearbox 405-207-154 More Info >	£7.97
28	PTO Hanger i See notes section for usage notes on this part 406-000-059 More Info >	£35.90
29	Retainer Clip - PTO Hanger 406-000-060 More Info >	£7.92
30	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) 406-340-870 More Info >	£322.38
31	PTO Cone - Wide angle - 52mm PCD 410-000-608 More Info >	£36.53
32	Gearbox Belt Retainer Weldment - Short 417-001-183 More Info >	£56.91
33	Gearbox Belt Retainer Weldment - Long 417-001-184 More Info >	£57.28
34	Gearbox Mount Welded Assembly 417-001-148 More Info >	£370.45
35	Bolt 301-212-253 More Info >	£1.16
