NOTES:

Part #	Number on image	Usage Notes
401-000-032	12	460-000-207 Roller Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
414-000-077	20	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-080	21	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-093	22	The old roller part number 414-000-066 has been replaced by 414-000-093 this new roller is backward compatible with older version.

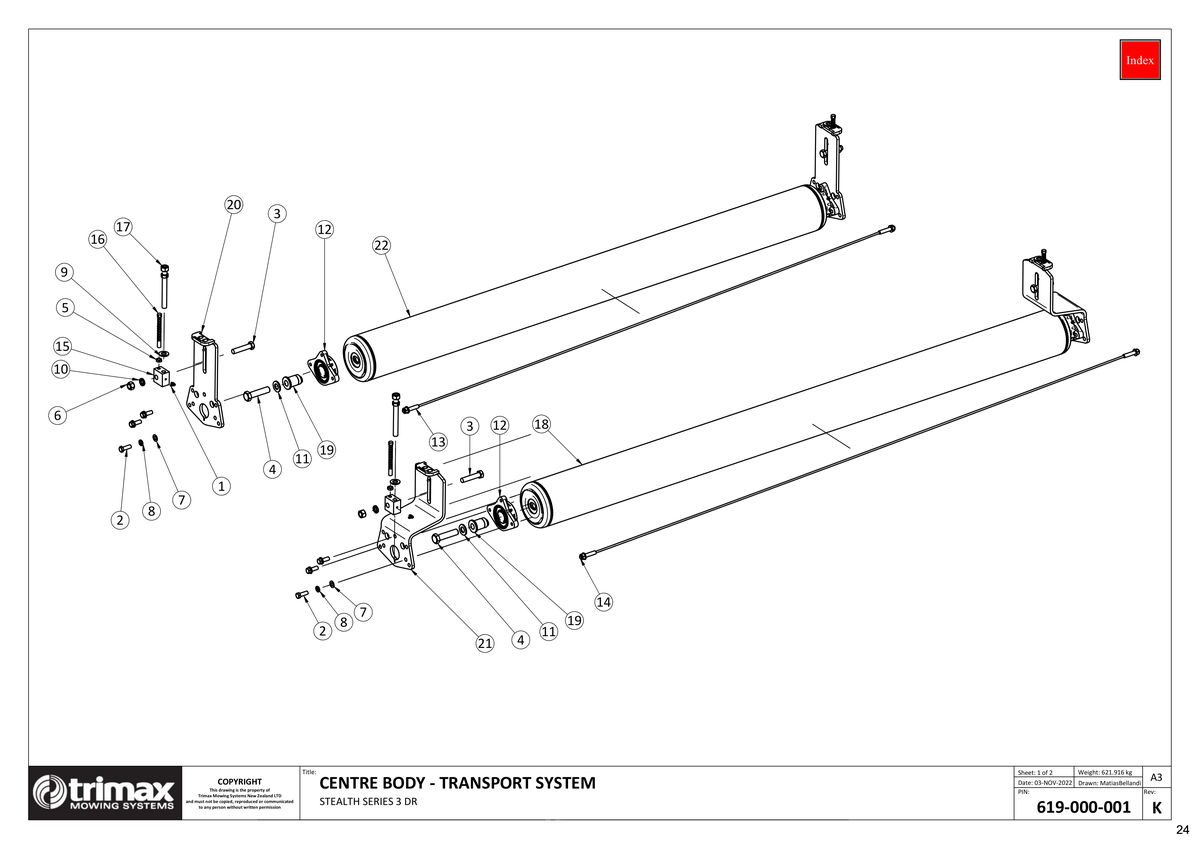

758 - Stealth S3 340 - Transport System - Centre Body

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-650 More Info >	£2.54
2	Bolt 301-212-353 More Info >	£1.38
3	Bolt 301-216-753 More Info >	£3.91
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	£7.45
5	Nut - Half 307-212-023 More Info >	£1.01
6	Nut - Plain 307-216-013 More Info >	£1.01
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
9	Washer - Heavy Flat 308-160-063 More Info >	£0.58
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
11	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
12	Roller Bearing Assembly - TriBolt 307-22 Oxide - i See notes section for usage notes on this part 401-000-032 More Info >	£61.08
13	Roller Scraper 404-000-122 More Info >	£42.48
14	Roller Scraper 404-000-123 More Info >	£48.08
15	Height Adjuster Block 412-000-255 More Info >	£42.13
16	Height Indicator - Metric 412-000-256 More Info >	£28.41
18	Roller Weldment - LocTek Centre Body Rear 414-000-072 More Info >	£665.47
19	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
20	Roller Mount Assembly i See notes section for usage notes on this part 414-000-077 More Info >	£123.63
21	Roller Mount - Centre Body - Rear i See notes section for usage notes on this part 414-000-080 More Info >	£172.82
22	Roller Weldment - Loctek 210 i See notes section for usage notes on this part 414-000-093 More Info >	£548.49
