NOTES:

Part #	Number on image	Usage Notes
401-000-032	18	401-000-022 Roller bearing kit is obsolete and is replaced by 401-000-032 Brg kit with twin grease holes
412-000-267	25	Weld on wear Skids also available: 412-000-271 Wear Skid LH Stealth S3. Galvanised alternative: 412-000-323 Side Channel Wing LH (Galvanised) Stealth S3
412-000-725	27	412-000-725 Height Adj. Screw Assy individual parts: 412-000-609 Set Screw M16 x 180 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-078	31	Serial number 719-340-002-0172 onwards has provision for greasing the roller bearing through the side roller mount plate holes.

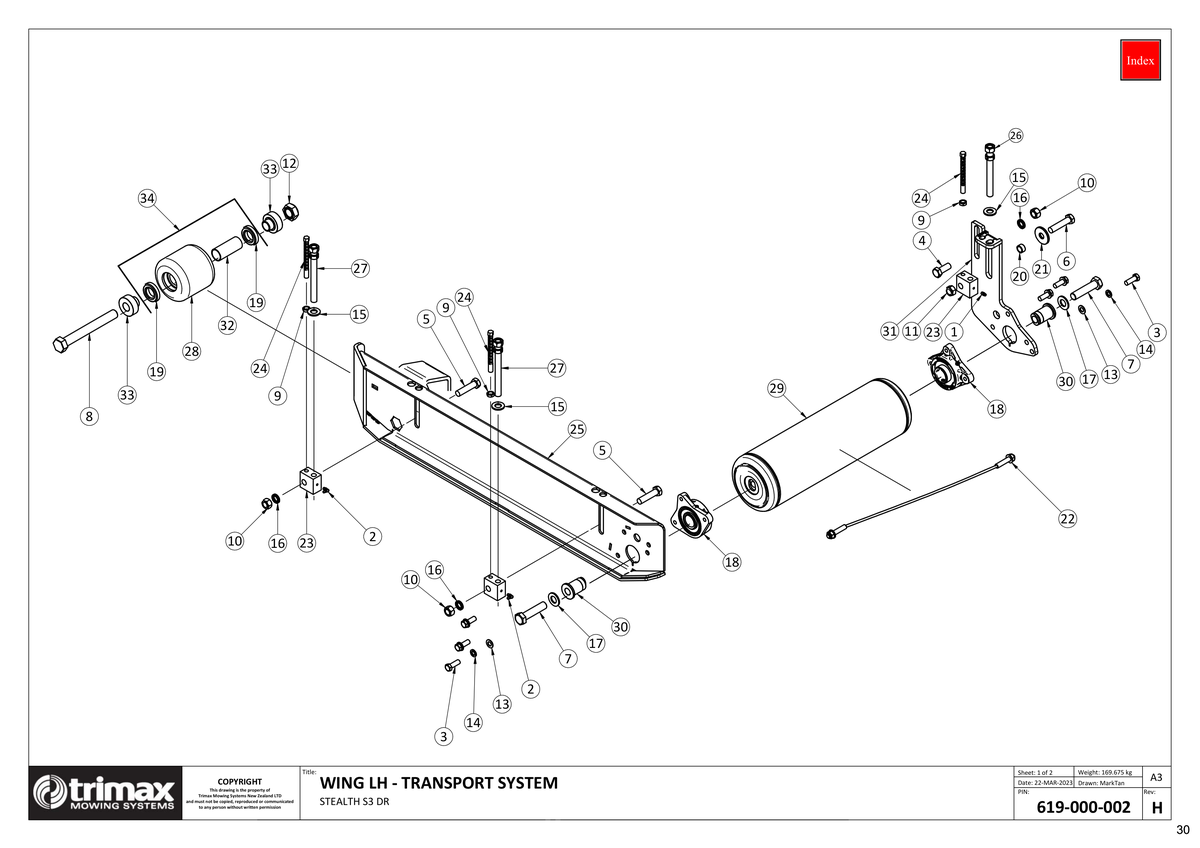

758 - Stealth S3 340 - Transport System - Wing LH

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
2	Grease Nipple 208-442-650 More Info >	£2.54
3	Bolt 301-212-353 More Info >	£1.38
4	Bolt 301-216-403 More Info >	£2.64
5	Bolt 301-216-653 More Info >	£3.65
7	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	£7.45
8	Bolt 301-624-203 More Info >	£24.18
9	Nut - Half 307-212-023 More Info >	£1.01
10	Nut - Plain 307-216-013 More Info >	£1.01
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
12	Nut Nyloc 307-224-053 More Info >	£3.54
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
15	Washer - Heavy Flat 308-160-063 More Info >	£0.58
16	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
17	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
18	Roller Bearing Assembly - TriBolt 307-22 Oxide - i See notes section for usage notes on this part 401-000-032 More Info >	£61.08
19	Bearing 401-023-700 More Info >	£12.52
20	Spacer Tube 402-000-091 More Info >	£12.42
21	Heavy Washer 402-840-560 More Info >	£17.58
22	Roller Scraper 404-000-124 More Info >	£13.65
23	Height Adjuster Block 412-000-255 More Info >	£42.13
24	Height Indicator - Metric 412-000-256 More Info >	£28.41
25	Side Channel Wing LH i See notes section for usage notes on this part 412-000-267 More Info >	£526.06
27	Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725 More Info >	£31.80
28	Roller 414-000-065 More Info >	£99.03
29	Roller Weldment - Rear Wing 414-000-075 More Info >	£441.76
30	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
31	Roller Mount - Inner Wing LH i See notes section for usage notes on this part 414-000-078 More Info >	£171.35
32	Bearing Spacer Tube 414-000-091 More Info >	£8.40
33	Bearing Spacer Outer 450-000-090 More Info >	£22.23
34	Front Wing Roller Assembly 414-000-090 More Info >	£132.70
