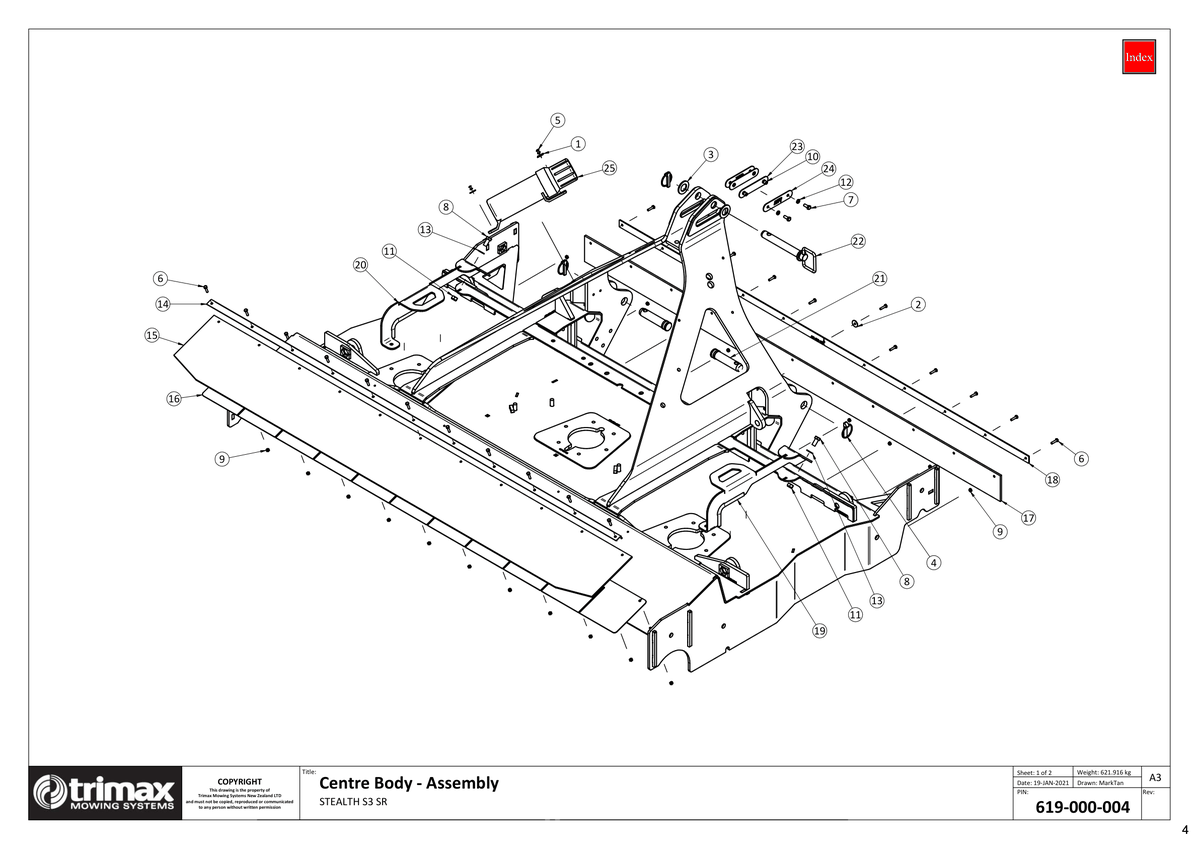

758 - Stealth S3 SR 340 - Centre Body Assembly

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	£0.33
2	Washer - Fender 108-041-613 More Info >	£0.47
3	Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification 108-163-113 More Info >	Price on Request
4	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
5	Blind Rivet 213-000-004 More Info >	£0.47
6	Bolt 301-206-253 More Info >	£0.43
7	Bolt 301-208-203 More Info >	£0.58
8	Bolt 301-212-253 More Info >	£1.16
9	Nut - Nyloc 307-206-053 More Info >	£0.33
10	Nut - Rivnut M8 ZP 307-208-423	Price on Request
11	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
12	Washer - Spring 308-080-043 More Info >	£0.33
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
14	Clamp Strip 410-000-103 More Info >	£68.20
15	Flap 410-000-268 More Info >	£98.33
16	Flap Stiffener 410-000-271 More Info >	£82.98
19	Cover Support Weldment 417-001-181 More Info >	£93.33
20	Cover Support Weldment - Centre Body LH 417-001-182 More Info >	£93.70
22	Pin - Top Link - Includes Linch Pin 419-000-052 More Info >	Price on Request
23	Slot Cover - Top Link SR Outer 419-000-053 More Info >	£7.91
24	Slot Cover - Top Link SR Inner 419-000-054 More Info >	£14.43
25	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	£31.95
