NOTES:

Part #	Number on image	Usage Notes
401-000-032	14	460-000-207 - Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.

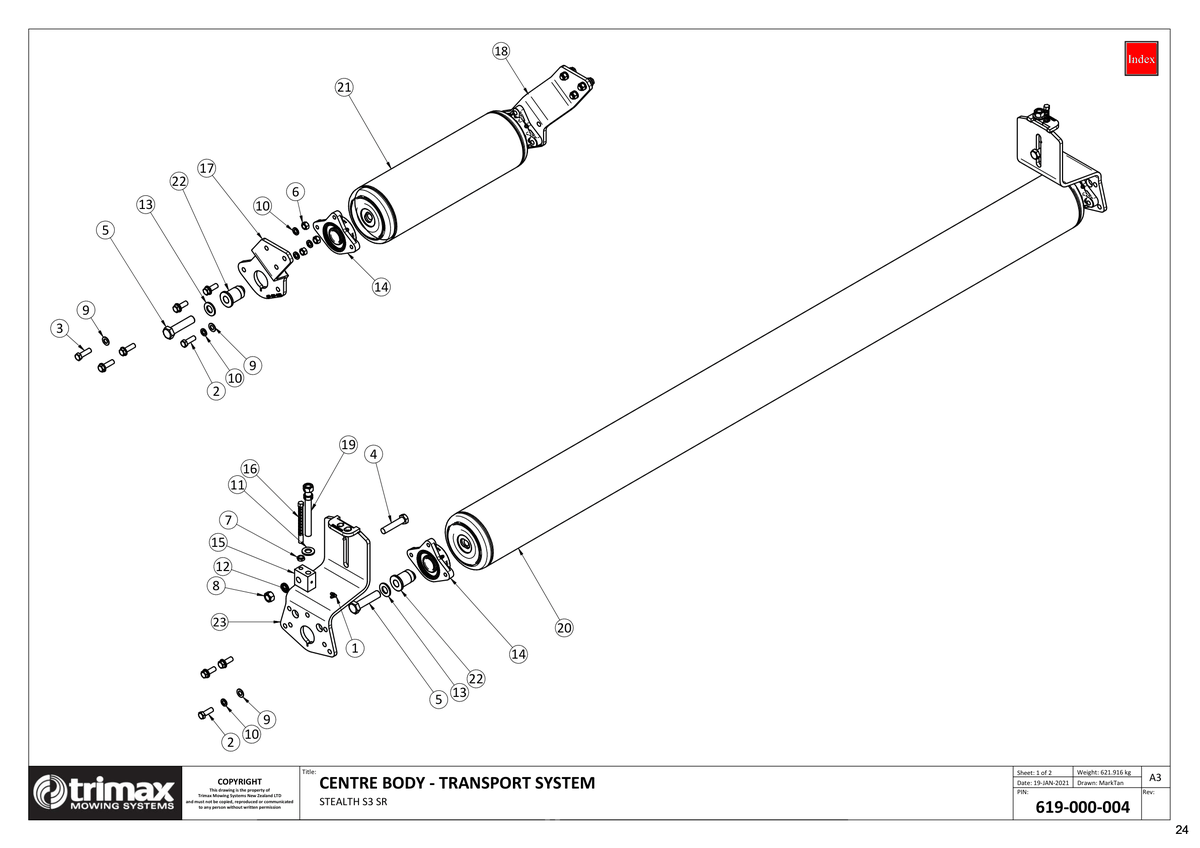

758 - Stealth S3 SR 340 - Centre Body Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-650 More Info >	£2.54
2	Bolt 301-212-353 More Info >	£1.38
3	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
4	Bolt 301-216-753 More Info >	£3.91
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	£7.45
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
7	Nut - Half 307-212-023 More Info >	£1.01
8	Nut - Plain 307-216-013 More Info >	£1.01
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
11	Washer - Heavy Flat 308-160-063 More Info >	£0.58
12	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
14	Roller Bearing Assembly - TriBolt 307-22 Oxide - i See notes section for usage notes on this part 401-000-032 More Info >	£61.08
15	Height Adjuster Block 412-000-255 More Info >	£42.13
16	Height Indicator - Metric 412-000-256 More Info >	£28.41
20	Roller Weldment - LocTek Centre Body Rear 414-000-072 More Info >	£665.47
21	Roller Weldment - Rear Wing 414-000-075 More Info >	£441.76
22	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
23	Roller Mount - Centre Body - Rear 414-000-080 More Info >	£172.82
