NOTES:

Part #	Number on image	Usage Notes
409-448-730	21	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3.
409-448-740	22	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3.
409-448-750	23	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3.

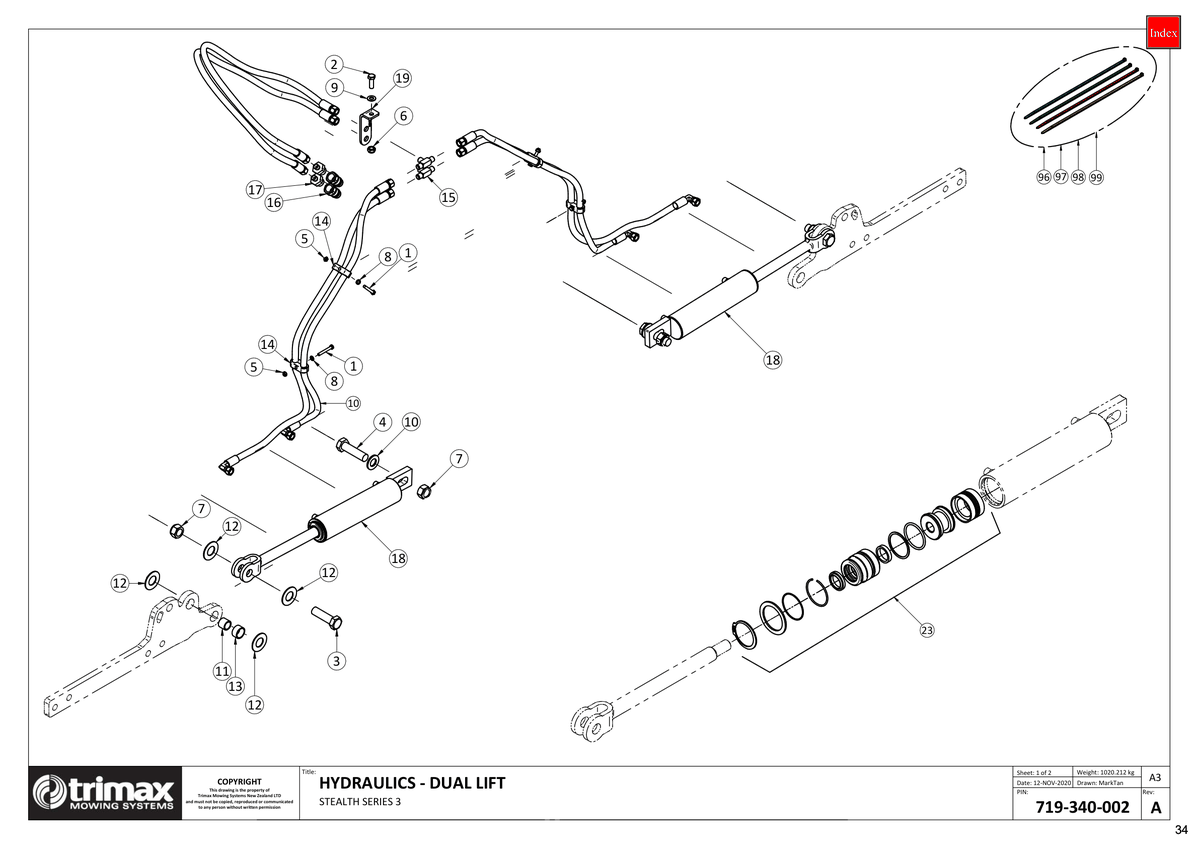

758 - Stealth S3 SR 340 - Hydraulics - Dual Lift

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 45 - Trimax Specification 301-206-453 More Info >	£0.74
2	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
3	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	£5.49
4	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	£5.91
5	Nut - Nyloc 307-206-053 More Info >	£0.33
6	Nut - Nyloc 307-210-053 More Info >	£0.53
7	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
8	Washer - Flat 308-060-013 More Info >	£0.27
9	Washer - Flat 308-100-013 More Info >	£0.33
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
11	Inner Ring 401-000-013 More Info >	£7.50
12	Washer - Nylon Thrust Washer - Trimax Specification 402-000-088 More Info >	£7.24
13	Bush - Composite Pivot Bush 402-000-093 More Info >	£21.65
14	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	£5.28
16	Coupling 408-447-580 More Info >	£19.48
17	Nipple 408-448-280 More Info >	£12.25
18	Lift Ram 409-000-073 More Info >	£493.65
21	Hose Assembly i See notes section for usage notes on this part 409-448-730 More Info >	£63.72
22	Hose Assembly i See notes section for usage notes on this part 409-448-740 More Info >	£59.28
23	Hose Assembly i See notes section for usage notes on this part 409-448-750 More Info >	£51.00
24	Cable Tie - Blue 210-900-015 More Info >	Price on Request
25	Cable Tie - Green 210-900-016 More Info >	Price on Request
26	Cable tie 210-900-017 More Info >	Price on Request
27	Cable tie 210-900-018 More Info >	Price on Request
