NOTES:

Part #	Number on image	Usage Notes
409-448-760	16	Use Part Number 409-000-071 for complete Hose Kit - individual Stealth S3.
409-448-770	17	Use Part Number 409-000-071 for complete Hose Kit - individual Stealth S3.

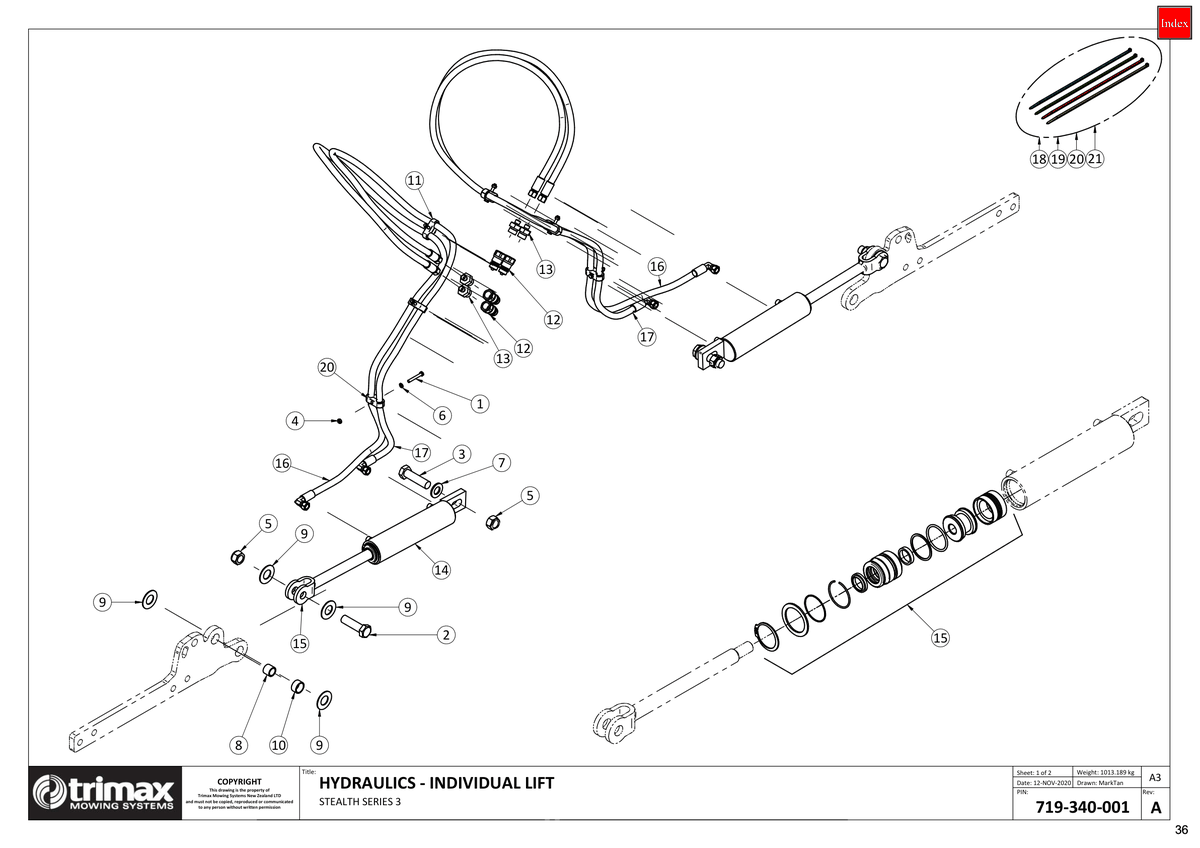

758 - Stealth S3 SR 340 - Hydraulics - Individual Lift

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Bolt 301-206-453 More Info >	£0.74
2	Bolt 301-220-703 More Info >	£5.49
3	Bolt 301-220-753 More Info >	£5.91
4	Nut - Nyloc 307-206-053 More Info >	£0.33
5	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
6	Washer - Flat 308-060-013 More Info >	£0.27
7	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
8	Inner Ring 401-000-013 More Info >	£7.50
9	Washer - Nylon Thrust Washer - 1.9mm - 402-000-088 More Info >	£7.24
10	Bush - Composite Pivot Bush - 25mm 402-000-093 More Info >	£21.65
11	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	£5.28
12	Coupling 408-447-580 More Info >	£19.48
13	Nipple 408-448-280 More Info >	£12.25
14	Lift Ram 409-000-073 More Info >	£493.65
16	Hose Assembly i See notes section for usage notes on this part 409-448-760 More Info >	£64.98
17	Hose Assembly i See notes section for usage notes on this part 409-448-770 More Info >	£64.98
18	Cable Tie - 200x4.8mm - Blue 210-900-015 More Info >	Price on Request
19	Cable Tie - 200x4.8mm - Green 210-900-016 More Info >	Price on Request
20	Cable tie 210-900-017 More Info >	Price on Request
21	Cable tie 210-900-018 More Info >	Price on Request
