NOTES:

Part #	Number on image	Usage Notes
412-000-725	24	412-000-725 - Height Adj. Screw Assy - Wing Outer w Collar/Pin 180mm ST3. Individual parts: 412-000-609 - Set Screw - M16 x 180 ZP 8.8 - Stealth S3 Wings; 412-850-260 - Collar - Height Adjuster Current; 202-447-980 - Roll Pin - 4 x 22 SS.

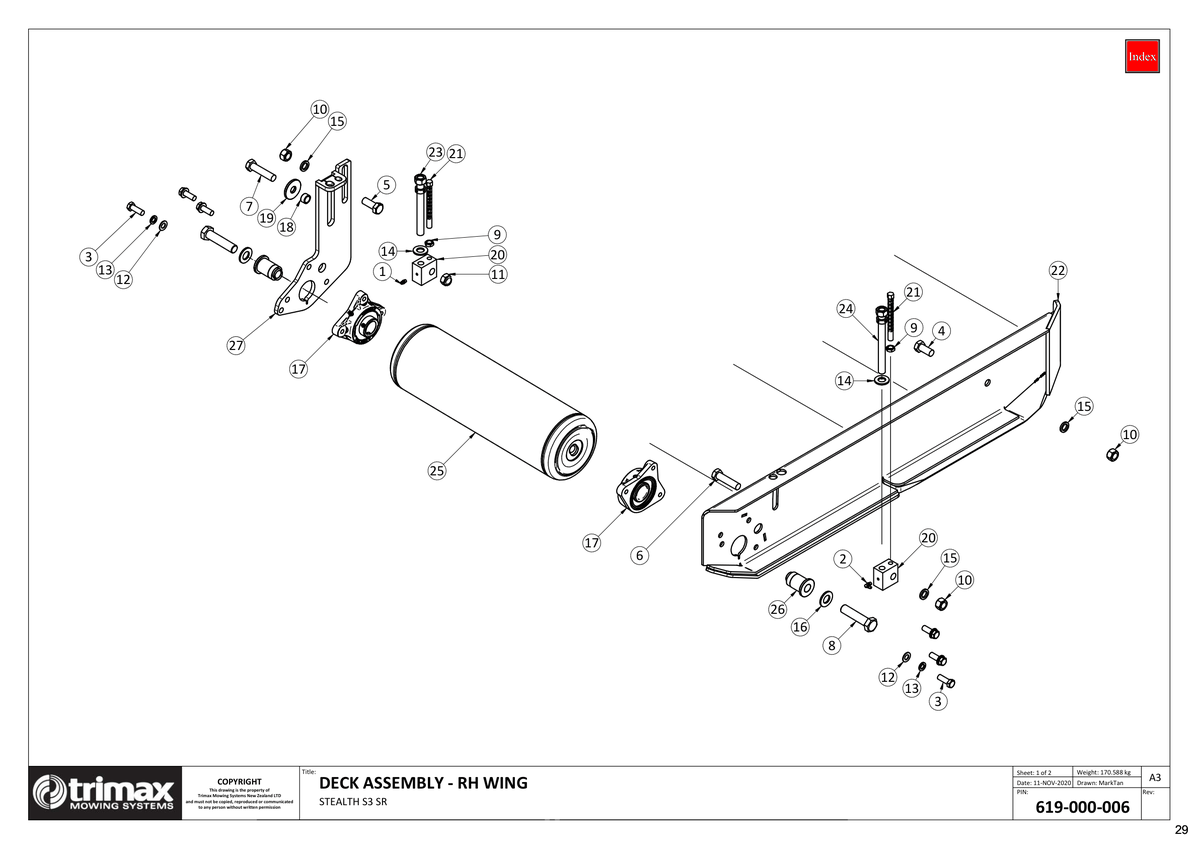

758 - Stealth S3 SR 340 - RH Wing Transport System

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
2	Grease Nipple 208-442-650 More Info >	£2.54
3	Bolt 301-212-353 More Info >	£1.38
4	Bolt 301-216-353 More Info >	£2.59
5	Bolt 301-216-403 More Info >	£2.64
6	Bolt 301-216-653 More Info >	£3.65
8	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	£7.45
9	Nut - Half 307-212-023 More Info >	£1.01
10	Nut - Plain 307-216-013 More Info >	£1.01
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
14	Washer - Heavy Flat 308-160-063 More Info >	£0.58
15	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	£3.07
16	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
17	Roller Bearing Assembly - TriBolt 307-22 Oxide - 401-000-032 More Info >	£61.08
18	Spacer Tube 402-000-091 More Info >	£12.42
19	Heavy Washer 402-840-560 More Info >	£17.58
20	Height Adjuster Block 412-000-255 More Info >	£42.13
21	Height Indicator - Metric 412-000-256 More Info >	£28.41
24	Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725 More Info >	£31.80
25	Roller Weldment - Rear Wing 414-000-075 More Info >	£441.76
26	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	£28.51
27	Roller Mount - Inner Wing RH 414-000-079 More Info >	£171.35
