NOTES:

Part #	Number on image	Usage Notes
417-001-155	19	Transport Lock Arm Spares Kit for Stealth S3 also available: 417-001-155 (AUS), Lock Arm Kit 460-000-208 and Lock Arm 417-001-419 (Global), Lock Arm Kit 460-000-231.

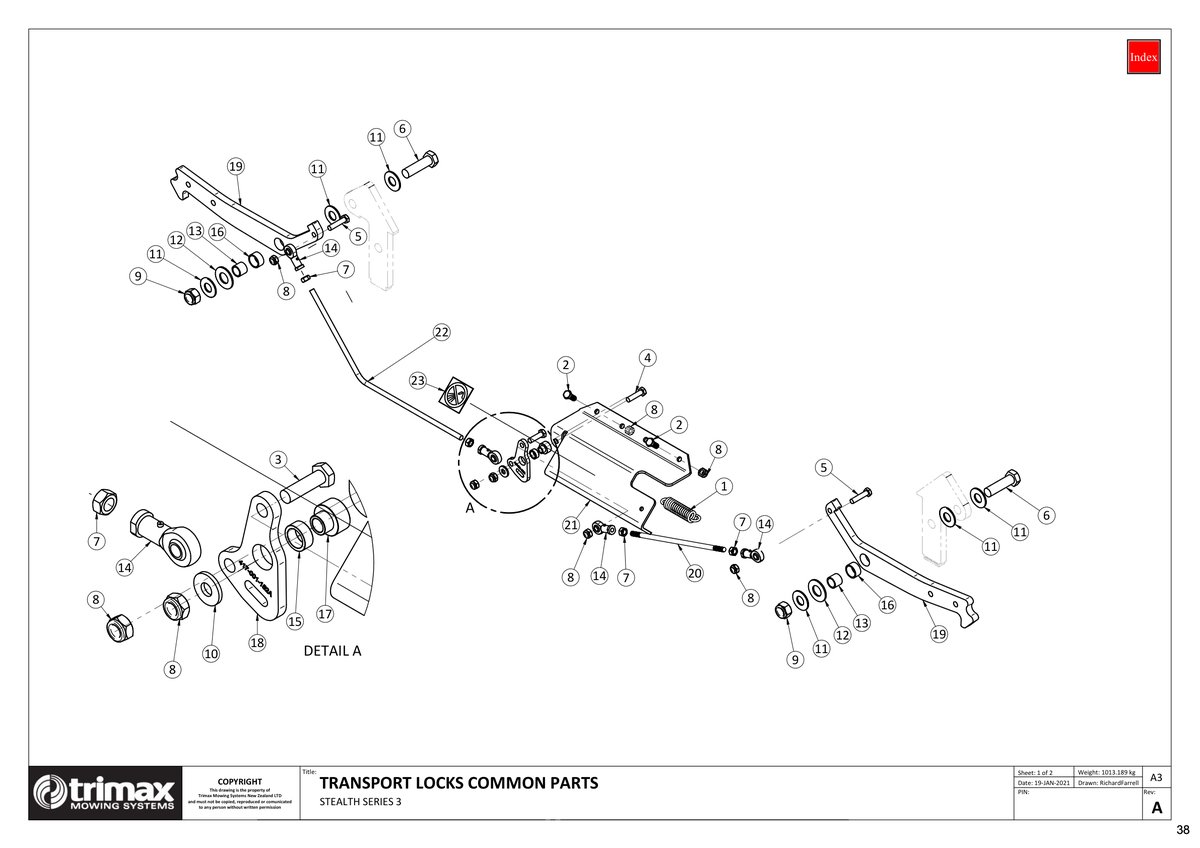

758 - Stealth S3 SR 340 - Transport Locks - Common Parts

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	£48.65
2	Bolt 301-210-253 More Info >	£0.74
3	Bolt 301-210-353 More Info >	£0.91
4	Bolt 301-210-403 More Info >	£0.99
5	Bolt 301-210-453 More Info >	£1.09
6	Bolt 301-220-703 More Info >	£5.49
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	£0.42
8	Nut - Nyloc 307-210-053 More Info >	£0.53
9	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
10	Washer - Heavy Flat 308-100-063 More Info >	£0.33
11	Washer - Fender 308-200-073 More Info >	£0.53
12	Washer - Heavy Flat 308-270-063 More Info >	£1.43
13	Inner Ring 401-000-013 More Info >	£7.50
14	Bearing 401-840-800 More Info >	£20.86
15	Bush 402-000-092 More Info >	£11.36
16	Bush - Composite Pivot Bush - 25mm 402-000-093 More Info >	£21.65
17	Bush 402-000-097 More Info >	£11.72
18	Pivot Plate 417-001-152 More Info >	£9.19
19	Plate - Transport Lock Arm (AUS) - Stealth S3 i See notes section for usage notes on this part 417-001-155 More Info >	£113.02
20	Tie Rod 417-001-179 More Info >	£8.24
23	Decal - Instruction - No Water Blasting 424-000-163 More Info >	Price on Request
