NOTES:

Part #	Number on image	Usage Notes
301-210-303	1	Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
301-220-753	4	Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
401-000-013	10	Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.
401-021-860	12	Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the other wing hinge system listing on page 12.

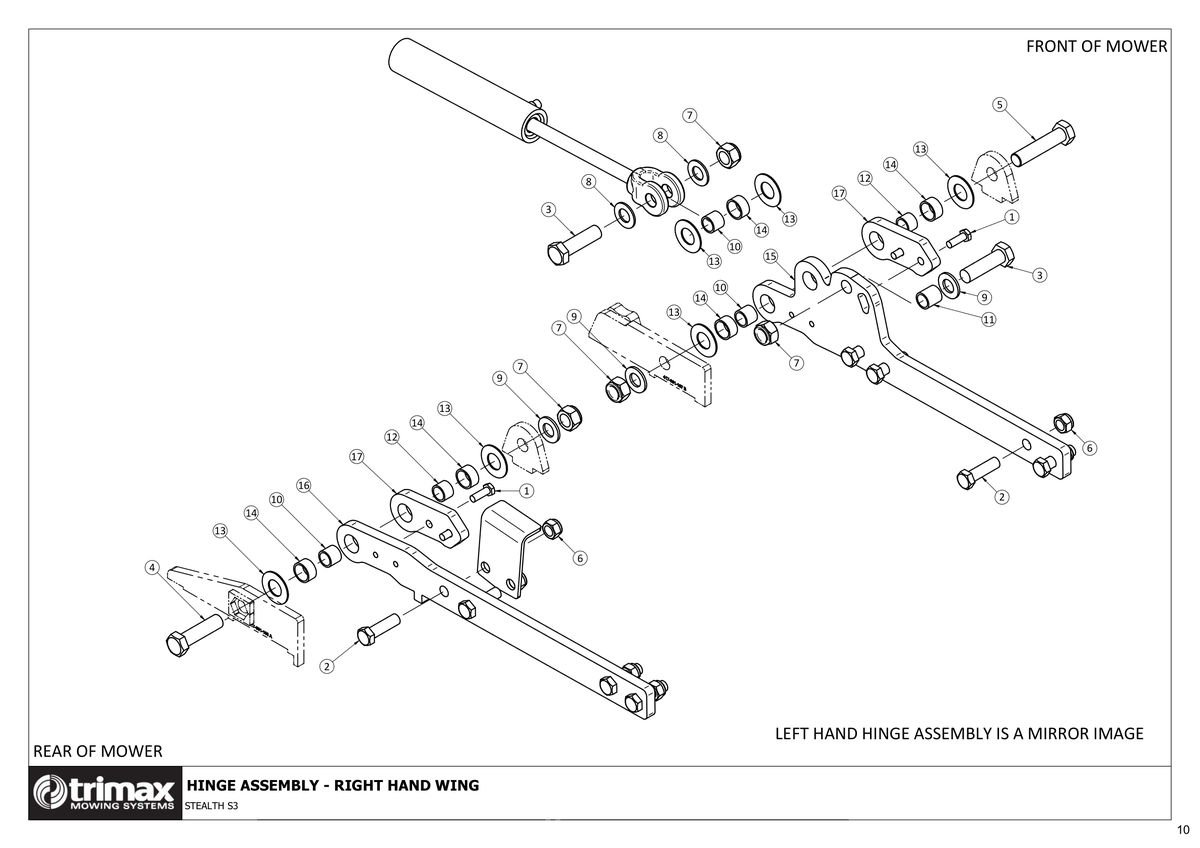

758 - Stealth S3 SR 340 - Wing Hinge System - RH

Stealth S3 SR 340

Grouped product items
No.	Product Name	Price
1	Bolt i See notes section for usage notes on this part 301-210-303 More Info >	£0.80
2	Bolt 301-216-553 More Info >	£3.28
3	Bolt 301-220-703 More Info >	£5.49
4	Bolt i See notes section for usage notes on this part 301-220-753 More Info >	£5.91
6	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
7	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
8	Washer - Flat 308-200-013 More Info >	£0.85
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
10	Inner Ring i See notes section for usage notes on this part 401-000-013 More Info >	£7.50
11	Inner Ring - Lock Bush 401-000-018 More Info >	£17.39
12	Bush - Inner Ring i See notes section for usage notes on this part 401-021-860 More Info >	£22.50
13	Washer - Nylon Thrust Washer - 1.9mm - 402-000-088 More Info >	£7.24
14	Bush - Composite Pivot Bush - 25mm 402-000-093 More Info >	£21.65
15	Plate 417-001-163 More Info >	£131.44
16	Plate 417-001-164 More Info >	£83.78
