NOTES:

Part #	Number on image	Usage Notes
406-000-081	7	PTO Shaft 406-000-081 include PTO Shaft 406-000-001 and PTO Decal. PTO Shaft 406-000-081 include PTO Shaft 406-000-001 and PTO Decal.

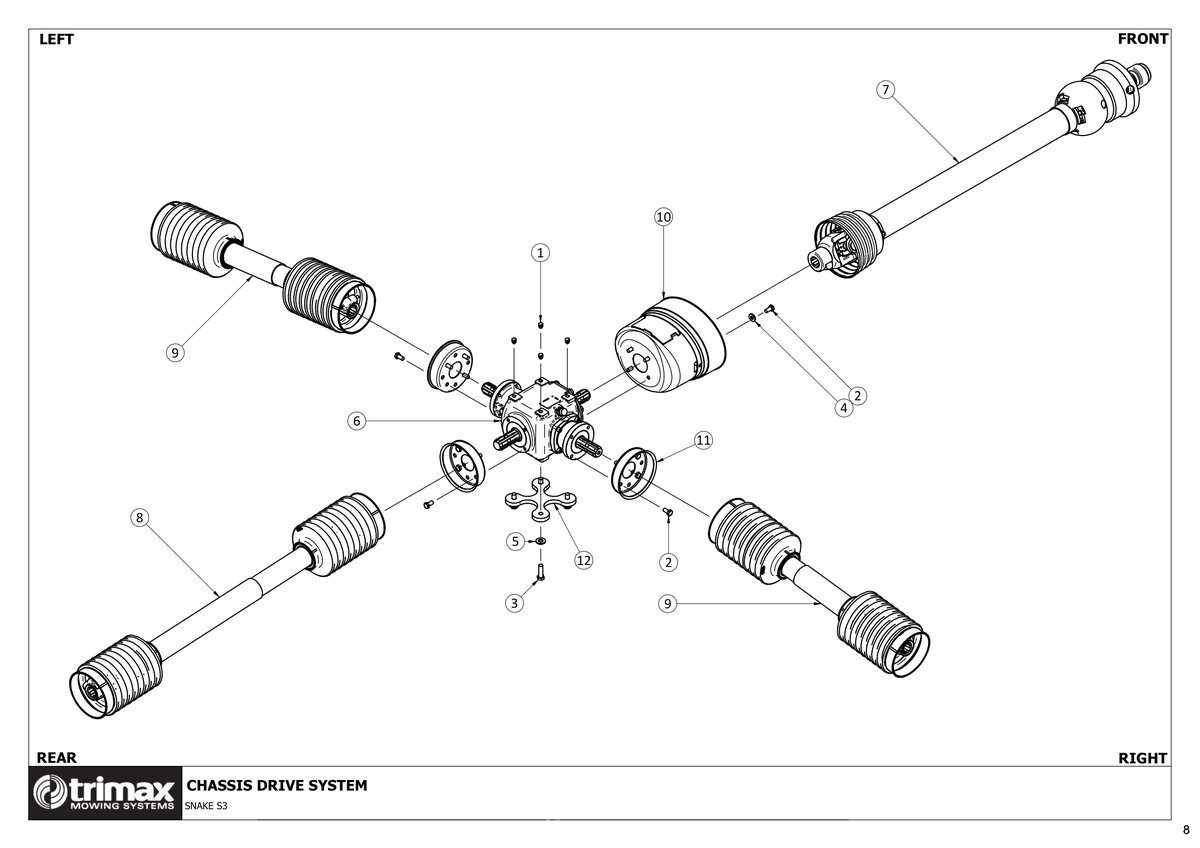

780 - Snake S3 - Chassis Drive System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Blanking Plug 209-900-012 More Info >	£0.91
2	Bolt 301-210-203 More Info >	£0.58
3	Bolt 301-212-403 More Info >	£1.54
4	Washer - Heavy Flat 308-100-063 More Info >	£0.33
5	Washer - Heavy Flat 308-120-063 More Info >	£0.33
6	Gearbox 405-000-021 More Info >	£868.42
7	PTO Shaft - T60 Z6 Assembly i See notes section for usage notes on this part 406-000-081	£901.22
8	PTO Shaft 406-000-017 More Info >	£306.53
9	PTO Shaft 406-000-018 More Info >	£236.27
10	PTO Cone - Wide angle 410-000-257 More Info >	£36.53
11	Mounting Plate 410-000-258 More Info >	£28.08
12	Spacer Plate 418-000-534 More Info >	£99.56
