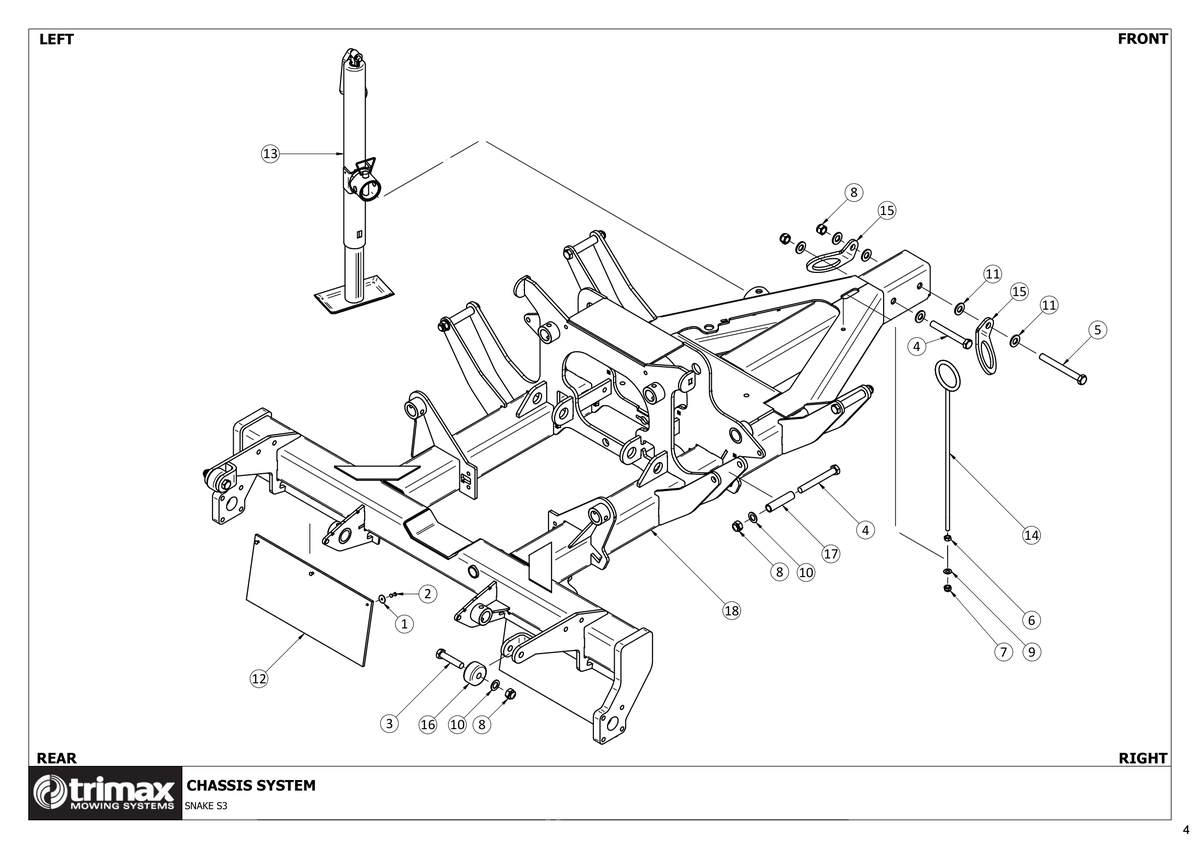

780 - Snake S3 - Chassis System

. .

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
£0.31
2 Blind Rivet [213-000-001] Blind Rivet 213-000-001
£0.24
3 Bolt [301-216-753] Bolt 301-216-753
£3.77
4 Bolt [301-616-133] Bolt 301-616-133
£5.66
5 Bolt [301-616-153] Bolt 301-616-153
£5.92
6 Nut - Plain [307-210-013] Nut - Plain 307-210-013
£0.41
7 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
£0.51
8 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
£1.12
9 Washer - Flat [308-100-013] Washer - Flat 308-100-013
£0.31
10 Washer - Flat [308-160-013] Washer - Flat 308-160-013
£1.99
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
£0.56
12 Debris Flap [410-000-259] Debris Flap 410-000-259
£20.86
13 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
£271.47
14 Guide [418-000-466] Guide 418-000-466
£28.56
16 Roller - Guide [419-000-036] Roller - Guide 419-000-036
£37.08
17 Bush - Transport Guide [419-000-041] Bush - Transport Guide 419-000-041
£8.31
19 Decal Sheet - Chassis Snake S3 [424-000-380] Decal Sheet - Chassis Snake S3 424-000-380
£45.00
21 Decal Sheet - Deck LH/RH Snake S3 320 [424-000-381] Decal Sheet - Deck LH/RH Snake S3 320 424-000-381
£45.00
20 Decal Sheet - Deck Rear Snake S3 320 [424-000-382] Decal Sheet - Deck Rear Snake S3 320 424-000-382
£45.00
23 Decal Sheet - Deck LH Snake S3 400 [424-000-383] Decal Sheet - Deck LH Snake S3 400 424-000-383
£45.00
22 Decal Sheet - Rear Deck Snake S3 400 [424-000-384] Decal Sheet - Rear Deck Snake S3 400 424-000-384
£45.00
24 Decal Sheet - Deck RH Snake S3 400 [424-000-385] Decal Sheet - Deck RH Snake S3 400 424-000-385
£45.00
