NOTES:

Part # Number on image Usage Notes
403-000-091 24
  • Pulley and 2x Bearing 1x Circlip 1x Washer
403-000-192 27
  • Idler Arm and 2x Bearing 1x Circlip 1x Washer
403-000-167 38
  • Kit consists of 2x Bearing 1x Circlip 1x Washer

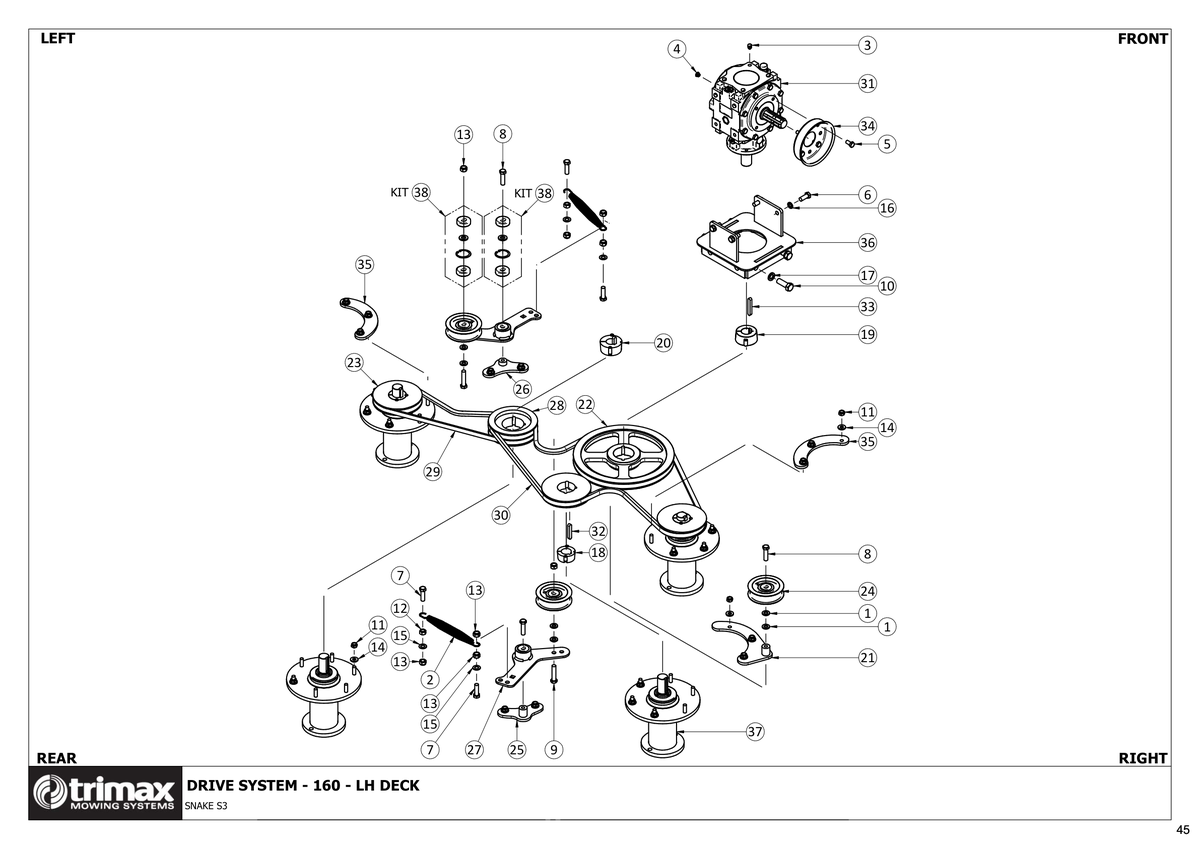

780 - Snake S3 - Drive System 160 LH

Snake S3 400

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
£1.69
2 Spring - Tension [207-000-009] Spring - Tension 207-000-009
£12.42
3 Blanking Plug [209-900-012] Blanking Plug 209-900-012
£0.91
4 Blanking Plug [209-900-014] Blanking Plug 209-900-014
£2.59
5 Bolt [301-210-203] Bolt 301-210-203
£0.58
6 Bolt [301-212-303] Bolt 301-212-303
£1.27
7 Bolt [301-212-403] Bolt 301-212-403
£1.54
8 Bolt [301-212-453] Bolt 301-212-453
£1.64
9 Bolt [301-212-553] Bolt 301-212-553
£2.27
10 Bolt [301-216-453] Bolt 301-216-453
£3.38
11 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
£0.53
12 Nut - Plain [307-212-013] Nut - Plain 307-212-013
£0.80
13 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
£0.53
14 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
£0.33
15 Washer - Flat [308-120-013] Washer - Flat 308-120-013
£0.33
16 Washer - Spring [308-120-043] Washer - Spring 308-120-043
£0.33
17 Washer [308-160-043] Washer 308-160-043
£0.43
18 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
£13.47
19 Bush [402-000-083] Bush 402-000-083
£16.32
20 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
£17.22
21 Idler Tower [403-000-076] Idler Tower 403-000-076
£55.89
22 Pulley [403-000-081] Pulley 403-000-081
£146.90
23 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
£50.73
24 Pulley Assembly [403-000-091] Pulley Assembly i See notes section for usage notes on this part 403-000-091
£77.63
25 Idler Base Weldment - Short [403-000-110] Idler Base Weldment - Short 403-000-110
£45.14
26 Idler Base Weldment - Very Short [403-000-111] Idler Base Weldment - Very Short 403-000-111
£96.87
28 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
£53.47
27 Idler Arm - Assembly - Snake S3 [403-000-192] Idler Arm - Assembly - Snake S3 i See notes section for usage notes on this part 403-000-192
Price on Request
29 Vee Belt [404-040-495] Vee Belt 404-040-495
£28.08
30 Vee Belt [404-040-962] Vee Belt 404-040-962
£42.13
31 Gearbox [405-000-015] Gearbox 405-000-015
£584.56
33 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
£7.97
34 Mounting Plate [410-000-258] Mounting Plate 410-000-258
£28.08
35 Plate [417-001-002] Plate 417-001-002
£34.84
36 Gearbox Mount Weldment [417-001-364] Gearbox Mount Weldment 417-001-364
£190.51
38 Kit - Idler Repair [403-000-167] Kit - Idler Repair i See notes section for usage notes on this part 403-000-167
£20.62
37 Spindle Assembly - With Keyway - Snake S3 Painted [504-000-181] Spindle Assembly - With Keyway - Snake S3 Painted 504-000-181
£622.13
