NOTES:

Part #	Number on image	Usage Notes
409-000-061	11	For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141 For Customers with MLS The Rear Hose Is Longer Use P/N 409-000-141

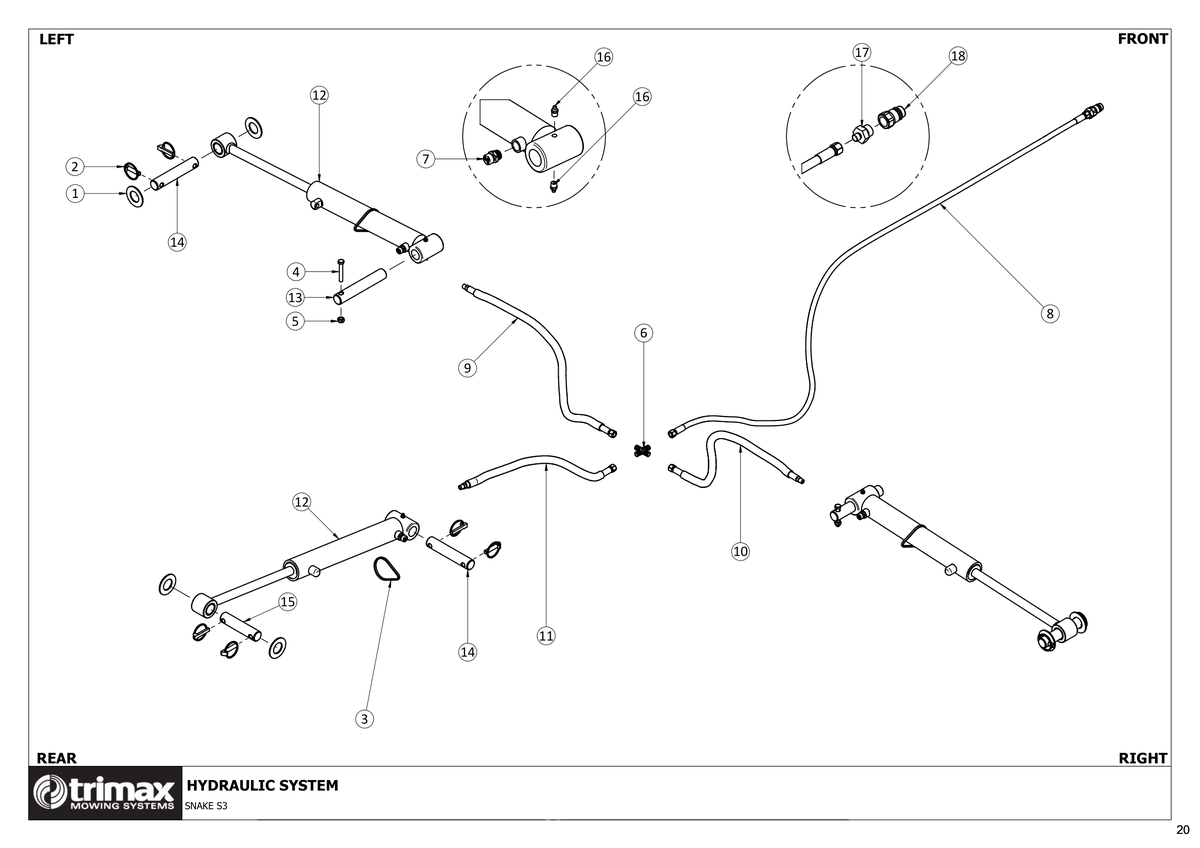

780 - Snake S3 - Hydraulic System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	£1.93
2	Linch Pin 203-300-700 More Info >	£0.97
3	Cable tie 210-900-011 More Info >	Price on Request
4	Bolt 301-210-653 More Info >	£1.73
5	Nut - Nyloc 307-210-053 More Info >	£0.51
6	Cross - Hydraulic 408-000-053 More Info >	£40.29
7	Breather - Capped 3/8" BSP 408-000-083 More Info >	£21.73
8	Hose Assembly - Fron 409-000-059 More Info >	£58.29
9	Hose Assembly 409-000-060 More Info >	£26.32
11	Hose Assembly - Rear i See notes section for usage notes on this part 409-000-061 More Info >	£22.90
12	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake 409-000-086 More Info >	£709.16
13	Pin - Hydraulic Cylinder 419-000-034 More Info >	£16.42
14	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.40
15	Pin - Hydraulic Cylinder 419-000-039 More Info >	£14.33
16	Grease Nipple 208-442-550 More Info >	£2.70
17	Nipple 408-448-280 More Info >	£11.83
18	Coupling 408-447-580 More Info >	£18.82
