NOTES:

Part #	Number on image	Usage Notes
418-000-966	16	Quantity varies by market use as required to minimise lock arm side play Quantity varies by market use as required to minimise lock arm side play

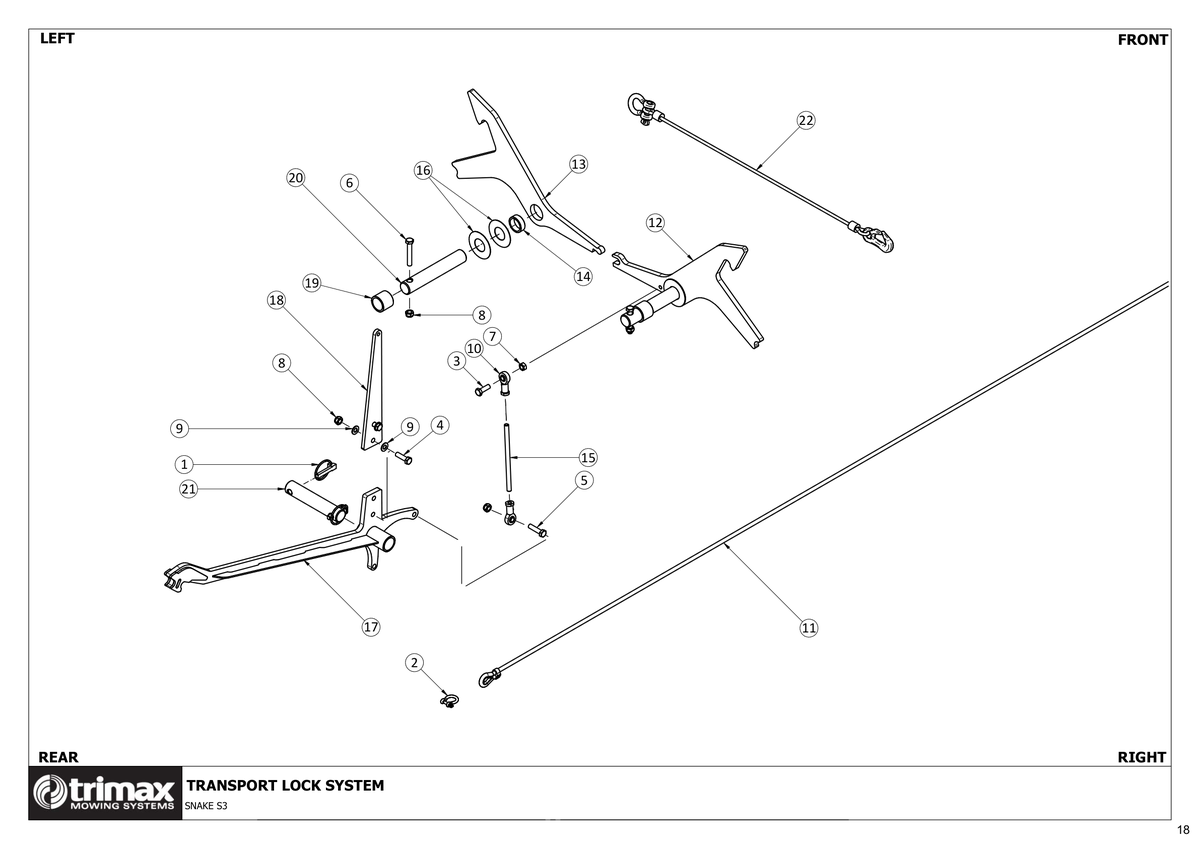

780 - Snake S3 - Transport Lock System

Snake S3 320, Snake S3 400

Grouped product items
No.	Product Name	Price
1	Linch Pin 203-300-700 More Info >	£1.01
2	D-Shackle 214-446-250 More Info >	£6.34
3	Bolt 301-210-303 More Info >	£0.80
4	Bolt 301-210-353 More Info >	£0.91
5	Bolt 301-210-403 More Info >	£0.99
6	Bolt 301-210-653 More Info >	£1.80
7	Nut - Plain 307-210-013 More Info >	£0.42
8	Nut - Nyloc 307-210-053 More Info >	£0.53
9	Washer - Flat 308-100-013 More Info >	£0.33
10	Bearing 401-840-800 More Info >	£20.86
11	Release Rope Assembly 4.5m 404-000-125 More Info >	£34.47
12	Hook 418-000-467 More Info >	£128.96
13	Hook 418-000-469 More Info >	£128.96
14	Bush 418-000-470 More Info >	£20.86
15	Tie Rod 418-000-536 More Info >	£10.56
16	Shim - Outrigger Hinge SS 0.9mm ↨ 70mmØ OD 33mmØ ID i See notes section for usage notes on this part 418-000-966 More Info >	£6.73
17	Rear Lock Weldment - Powder Coated Snake S3 418-001-062 More Info >	£258.34
18	Rear Lock Top - Powder Coated - Snake S3 418-001-063 More Info >	£34.45
20	Pin - Hydraulic Cylinder 419-000-034 More Info >	£17.00
21	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.94
22	Safety Rope Assembly 506-000-079 More Info >	£44.02
