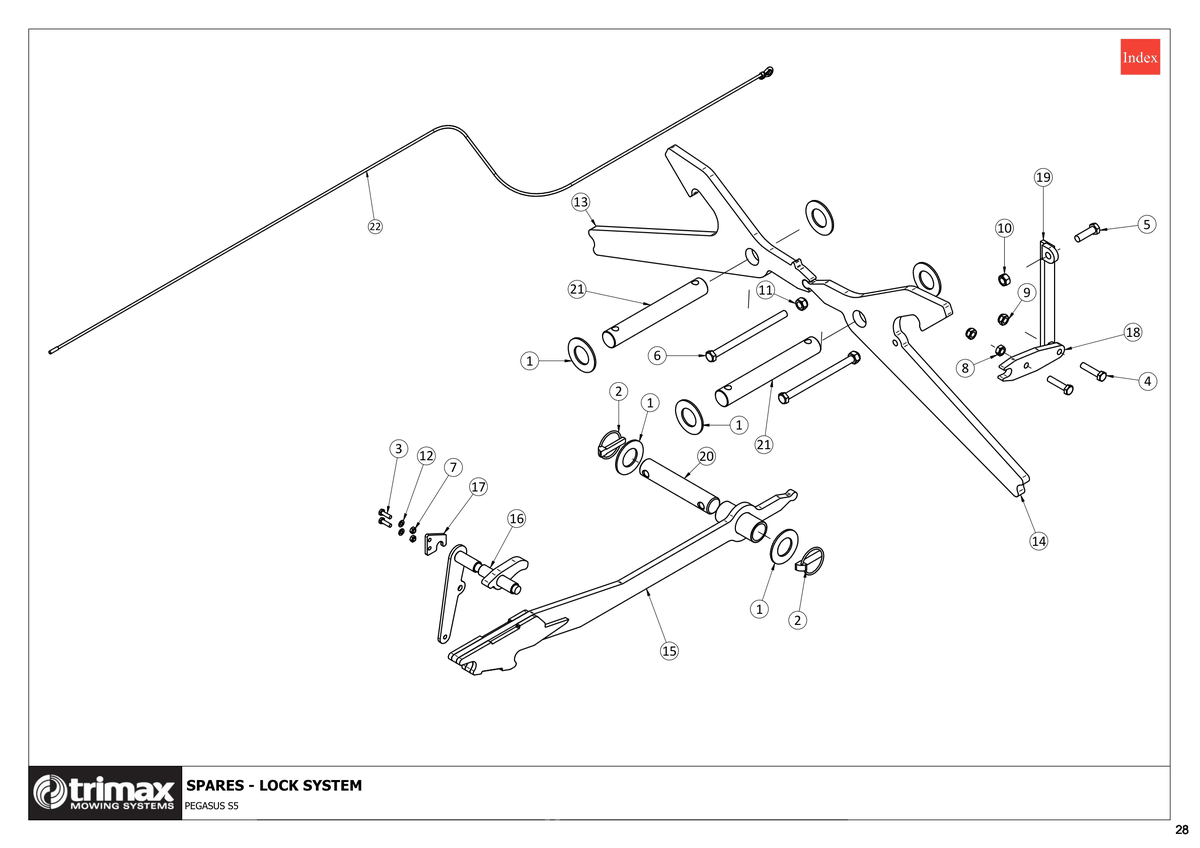

781 - Pegasus S5 - Chassis Lock Release System

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	£2.00
2	Linch Pin 203-300-700 More Info >	£1.01
3	Bolt 301-206-203 More Info >	£0.43
4	Bolt 301-210-453 More Info >	£1.09
5	Bolt 301-212-403 More Info >	£1.54
6	Bolt 301-612-183 More Info >	£5.80
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Nut - Plain 307-210-013 More Info >	£0.42
9	Nut - Nyloc 307-210-053 More Info >	£0.53
10	Nut - Plain 307-212-013 More Info >	£0.80
11	Nut - Nyloc 307-212-053 More Info >	£0.53
12	Washer - Flat 308-060-013 More Info >	£0.27
13	Plate - Lh - Lock Mech 418-000-864 More Info >	£164.96
14	Plate - Rh - Lock Mech 418-000-865 More Info >	£164.96
15	Lock Weldment - Rear 418-000-866 More Info >	£165.21
16	Lever - Weldment - Remote Unlock 418-000-903 More Info >	£109.84
17	Plate - Remote Unlock 418-000-905 More Info >	£2.66
18	Lock Bell Crank 418-000-938 More Info >	£34.27
19	Lock Linkage Weldment 418-000-949 More Info >	£65.23
20	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.94
21	Pin - Lift Ram - Chassis 419-000-068 More Info >	£122.60
22	Release Rope Assembly 4.5m 404-000-125 More Info >	£34.47
