NOTES:

Part #	Number on image	Usage Notes
411-322-753		Use part number 411-322-753 for complete laser blade assembly (S) fits all models Use part number 411-322-753 for complete laser blade assembly (S) fits all models Use part number 411-322-753 for complete laser blade assembly (S) fits all models

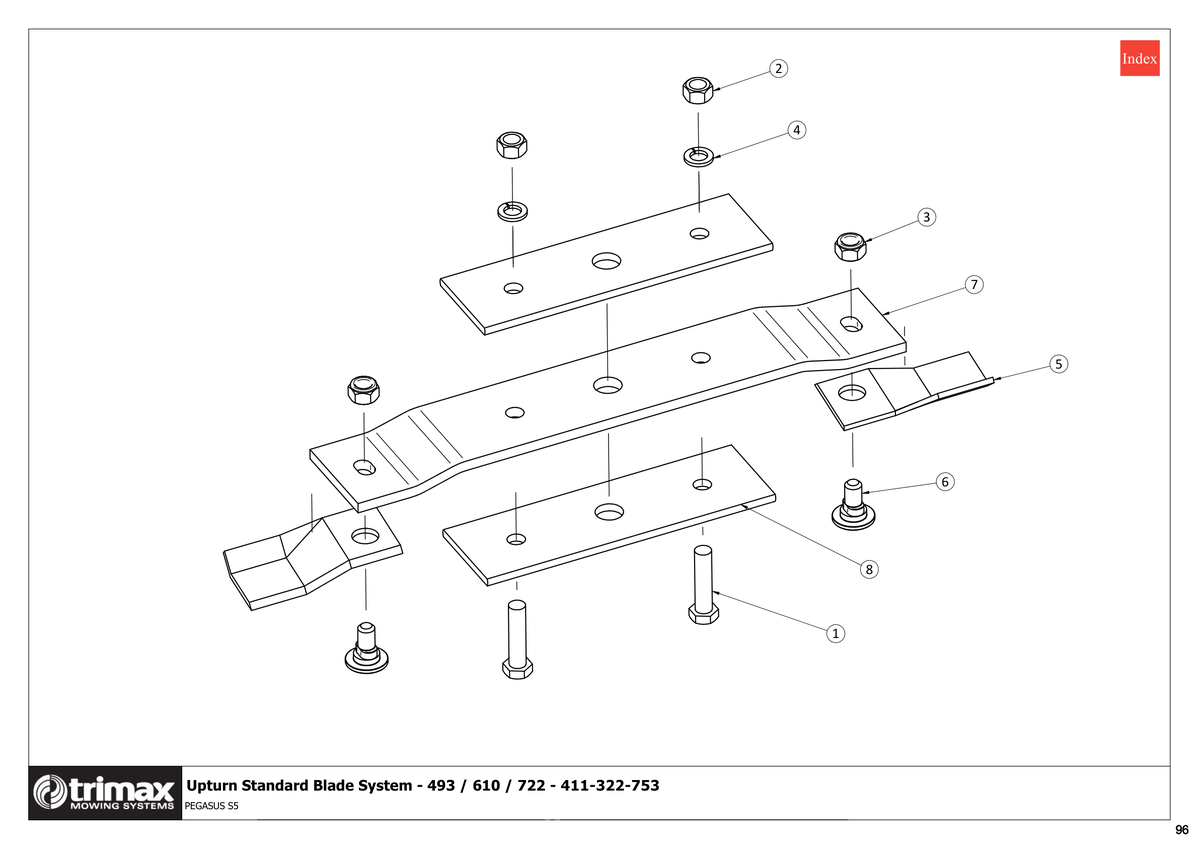

781 - Pegasus S5 - Cutting System

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
	Blade Beam Assembly - LazerBladez i See notes section for usage notes on this part 411-322-753 More Info >	£99.09
1	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	£1.74
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
3	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
5	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	£9.08
6	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	£6.22
7	Blade Beam - LazerBladez 411-322-752 More Info >	£37.75
8	Clamp Plate - LazerBladez 411-322-820 More Info >	£13.05
