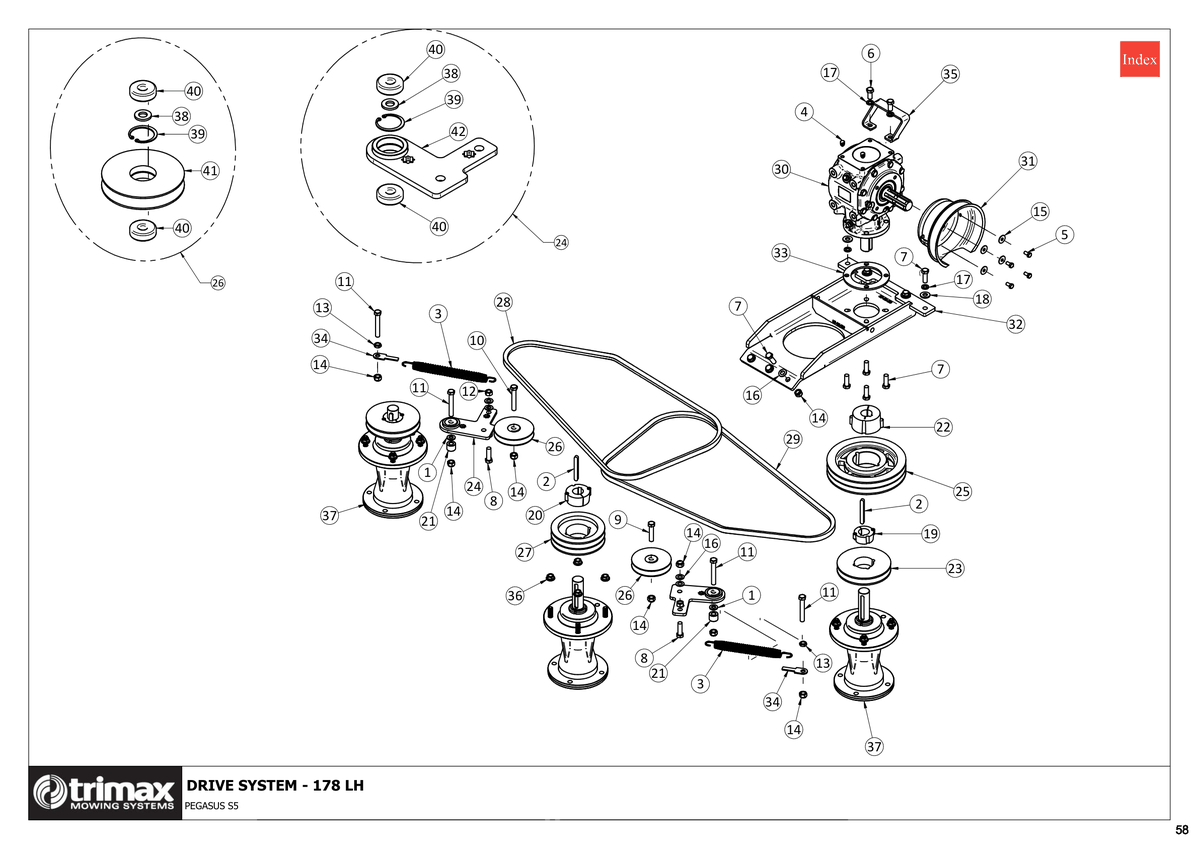

781 - Pegasus S5 - Drive System 178 LH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	£2.97
3	Spring - Tension 207-000-009 More Info >	£12.42
4	Blanking Plug 209-900-012 More Info >	£0.91
5	Bolt 301-208-163 More Info >	£0.53
6	Bolt 301-212-253 More Info >	£1.16
7	Bolt 301-212-353 More Info >	£1.38
8	Bolt 301-212-403 More Info >	£1.54
9	Bolt 301-212-553 More Info >	£2.27
10	Bolt 301-212-753 More Info >	£2.54
11	Bolt 301-212-803 More Info >	£2.75
12	Nut - Plain 307-212-013 More Info >	£0.80
13	Nut - Half 307-212-023 More Info >	£1.01
14	Nut - Nyloc 307-212-053 More Info >	£0.53
15	Washer- Fender M8 ZP 308-080-073 More Info >	£0.33
16	Washer - Flat 308-120-013 More Info >	£0.33
17	Washer - Spring 308-120-043 More Info >	£0.33
18	Washer - Heavy Flat 308-120-063 More Info >	£0.33
19	Bush - Taper Lock 402-000-078 More Info >	£13.47
20	Bush - Taper Lock 402-000-090 More Info >	£17.22
21	Idler Arm Spacer Bush - 19mm 402-000-134 More Info >	£12.42
22	Bush - Taper Lock 402-060-820 More Info >	£31.05
23	Pulley - Taper Lock 403-000-083 More Info >	£50.73
25	Pulley - Taper Lock Ø224 SPB x 2 403-000-130 More Info >	£90.45
26	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
27	Pulley - Taper Lock 403-361-140 More Info >	£53.47
28	Vee Belt 404-040-750 More Info >	£20.01
30	Gearbox 405-200-720 More Info >	£644.30
31	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
32	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
33	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
35	Folding 418-000-633 More Info >	£18.84
36	Nut - Flange 450-000-078 More Info >	£1.80
37	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	£473.49
39	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
40	Bearing 401-021-900 More Info >	£10.30
41	Pulley - Idler 403-360-110 More Info >	£20.59
