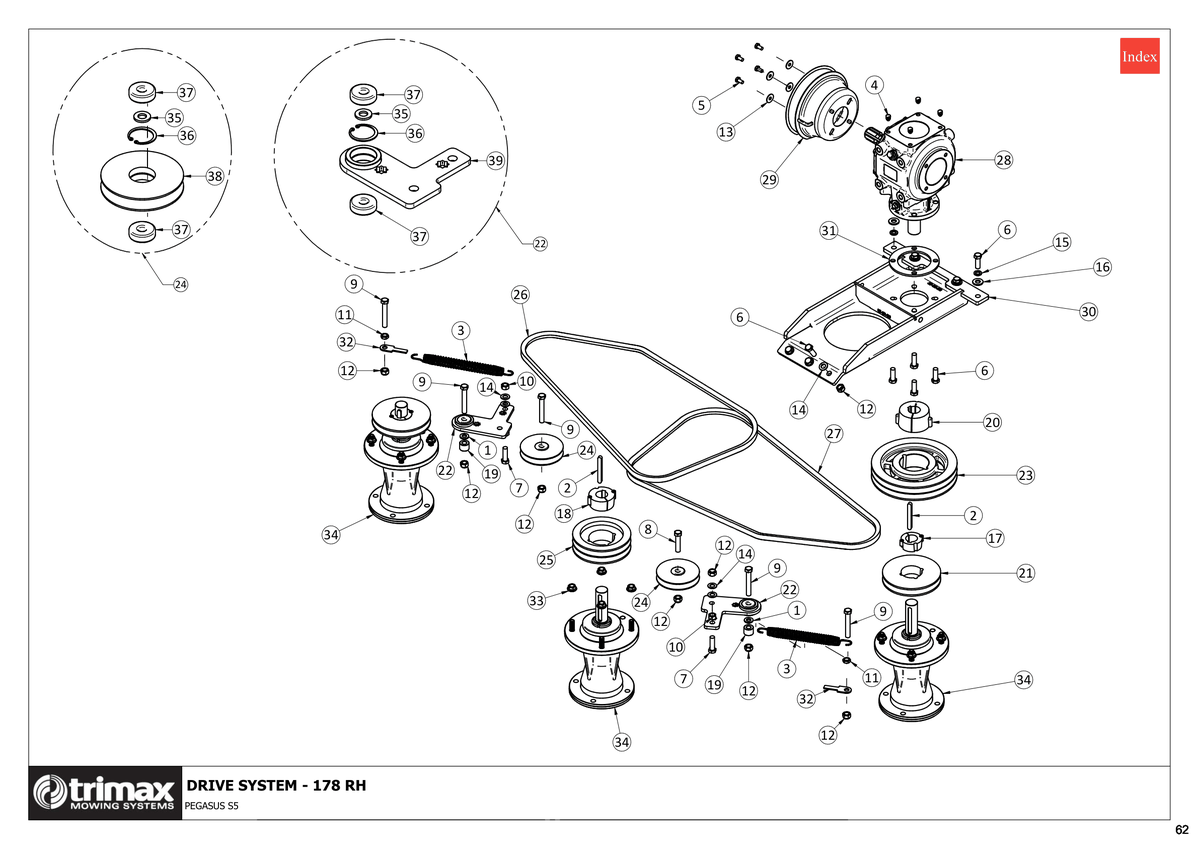

781 - Pegasus S5 - Drive System 178 RH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	£2.97
3	Spring - Tension 207-000-009 More Info >	£12.42
4	Blanking Plug 209-900-012 More Info >	£0.91
5	Bolt 301-208-163 More Info >	£0.53
6	Bolt 301-212-353 More Info >	£1.38
7	Bolt 301-212-403 More Info >	£1.54
8	Bolt 301-212-553 More Info >	£2.27
9	Bolt 301-212-803 More Info >	£2.75
10	Nut - Plain 307-212-013 More Info >	£0.80
11	Nut - Half 307-212-023 More Info >	£1.01
12	Nut - Nyloc 307-212-053 More Info >	£0.53
13	Washer- Fender M8 ZP 308-080-073 More Info >	£0.33
14	Washer - Flat 308-120-013 More Info >	£0.33
15	Washer - Spring 308-120-043 More Info >	£0.33
16	Washer - Heavy Flat 308-120-063 More Info >	£0.33
17	Bush - Taper Lock 402-000-078 More Info >	£13.47
18	Bush - Taper Lock 402-000-090 More Info >	£17.22
19	Idler Arm Spacer Bush - 19mm 402-000-134 More Info >	£12.42
20	Bush - Taper Lock 402-060-820 More Info >	£31.05
21	Pulley - Taper Lock 403-000-083 More Info >	£50.73
23	Pulley - Taper Lock Ø224 SPB x 2 403-000-130 More Info >	£90.45
24	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
25	Pulley - Taper Lock 403-361-140 More Info >	£53.47
26	Vee Belt 404-040-750 More Info >	£20.01
28	Gearbox 405-200-720 More Info >	£644.30
29	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
30	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
31	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
33	Nut - Flange 450-000-078 More Info >	£1.80
34	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	£473.49
36	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
37	Bearing 401-021-900 More Info >	£10.30
38	Pulley - Idler 403-360-110 More Info >	£20.59
