NOTES:

Part #	Number on image	Usage Notes
403-360-111	30	Idler Pulley assembly includes pulley, bearings, circlip, washer, assembled
403-360-110	47	Idler Pulley only "no bearings"

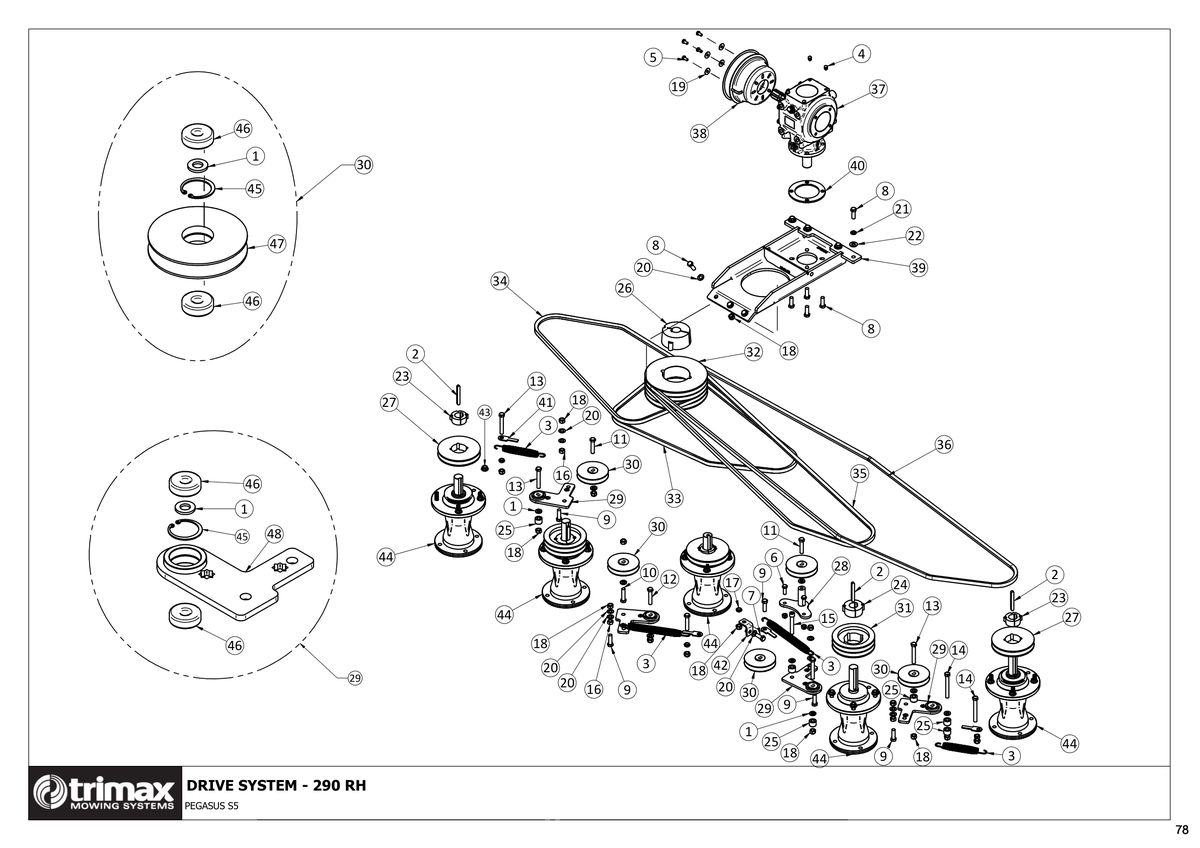

781 - Pegasus S5 - Drive System 290 RH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	£2.97
3	Spring - Tension 207-000-009 More Info >	£12.42
4	Blanking Plug 209-900-012 More Info >	£0.91
5	Bolt 301-208-163 More Info >	£0.53
6	Bolt 301-210-303 More Info >	£0.80
7	Bolt 301-212-303 More Info >	£1.27
8	Bolt 301-212-353 More Info >	£1.38
9	Bolt 301-212-403 More Info >	£1.54
10	Bolt 301-212-503 More Info >	£1.74
11	Bolt 301-212-553 More Info >	£2.27
12	Bolt 301-212-603 More Info >	£2.32
13	Bolt 301-212-803 More Info >	£2.75
14	Bolt 301-612-103 More Info >	£2.64
15	Cap Screw - Socket Head - M12 x 80 303-212-803 More Info >	Price on Request
16	Nut - Plain 307-212-013 More Info >	£0.80
17	Nut - Half 307-212-023 More Info >	£1.01
18	Nut - Nyloc 307-212-053 More Info >	£0.53
19	Washer- Fender M8 ZP 308-080-073 More Info >	£0.33
20	Washer - Flat 308-120-013 More Info >	£0.33
21	Washer - Spring 308-120-043 More Info >	£0.33
22	Washer - Heavy Flat 308-120-063 More Info >	£0.33
23	Bush - Taper Lock 402-000-078 More Info >	£13.47
24	Bush - Taper Lock 402-000-090 More Info >	£17.22
25	Idler Arm Spacer Bush - 19mm 402-000-134 More Info >	£12.42
26	Bush - Taper Lock 402-060-680 More Info >	£43.76
27	Pulley - Taper Lock 403-000-083 More Info >	£50.73
30	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	£45.50
31	Pulley - Taper Lock 403-361-140 More Info >	£53.47
32	Pulley - Taper Lock 403-361-290 More Info >	£160.00
33	Vee Belt 404-040-750 More Info >	£20.01
35	Vee Belt 404-041-150 More Info >	£33.16
36	Vee Belt 404-041-580 More Info >	£45.93
37	Gearbox 405-200-720 More Info >	£644.30
38	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
39	Gearbox Mount Weldment 417-001-297 More Info >	£171.45
40	Gearbox Spacer Disc 417-001-300 More Info >	£41.13
42	Retaining Lug Weldment 417-001-665 More Info >	£44.47
43	Nut - Flange 450-000-078 More Info >	£1.80
44	Spindle Assembly - Steadfast - With Keyway 504-000-133 More Info >	£473.49
45	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
46	Bearing 401-021-900 More Info >	£10.30
47	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	£20.59
