NOTES:

Part #	Number on image	Usage Notes
421-000-612	34	Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 - Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable
421-000-190	39	Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3) Use part number 421-000-158 for Blanking cap assembly - Superseal 2 way for unused but exposed plugs For MLS PCB use part numbers: 421-000-086 – Circuit Board - MLS - Assembled (v2) 421-000-565 – Circuit Board - MLS - Assembled (v3)

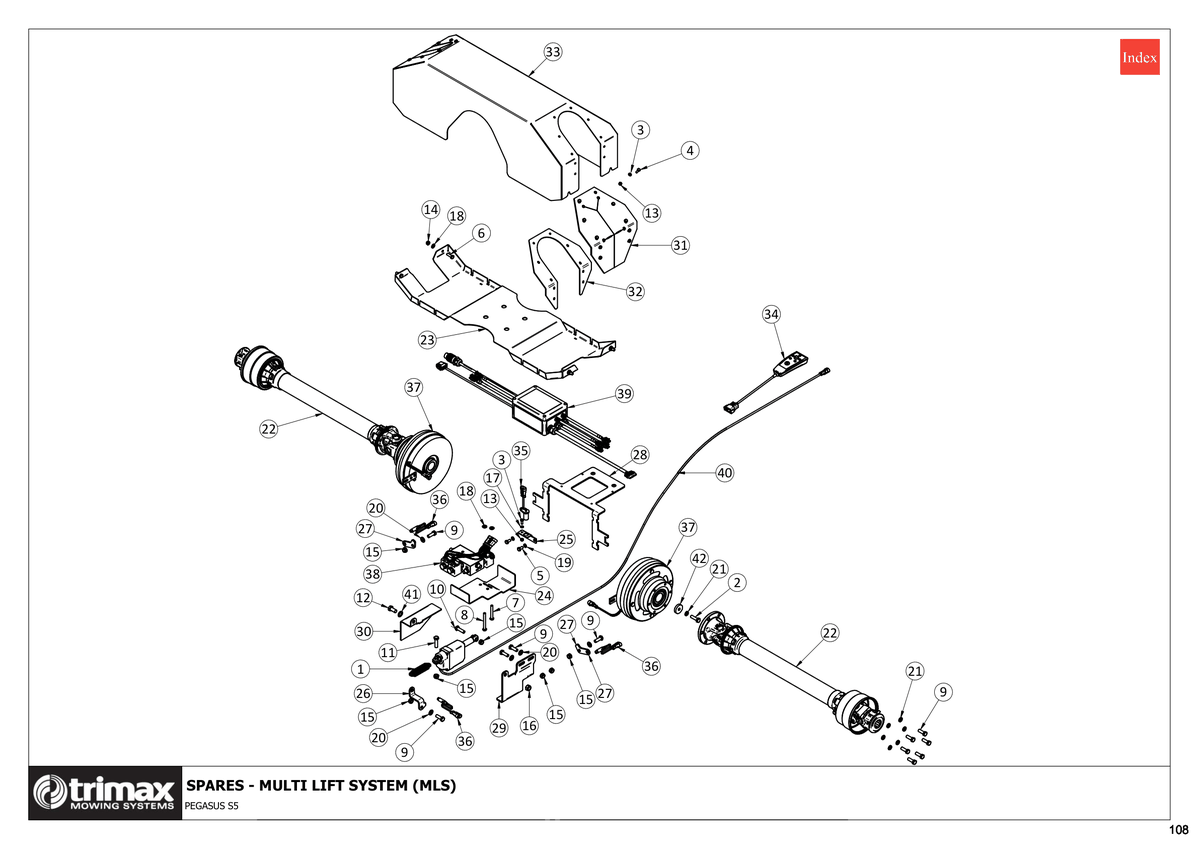

781 - Pegasus S5 - Multi Lift System (MLS)

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	£48.65
2	Bolt 301-110-353 More Info >	£2.06
3	Bolt 301-206-163 More Info >	£0.38
4	Bolt 301-206-203 More Info >	£0.43
5	Bolt 301-208-163 More Info >	£0.53
6	Bolt 301-208-253 More Info >	£0.65
7	Bolt 301-208-603 More Info >	£1.11
8	Bolt 301-208-753 More Info >	£1.30
9	Bolt 301-210-303 More Info >	£0.80
10	Bolt 301-210-353 More Info >	£0.91
11	Bolt 301-210-403 More Info >	£0.99
12	Bolt 301-212-253 More Info >	£1.16
13	Nut - Nyloc 307-206-053 More Info >	£0.33
14	Nut - Nyloc 307-208-053 More Info >	£0.43
15	Nut - Nyloc 307-210-053 More Info >	£0.53
16	Nut - Nyloc 307-212-053 More Info >	£0.53
17	Washer - Flat 308-060-013 More Info >	£0.27
18	Washer - Flat 308-080-013 More Info >	£0.33
19	Washer - Spring 308-080-043 More Info >	£0.33
20	Washer - Flat 308-100-013 More Info >	£0.33
21	Washer - Spring 308-100-043 More Info >	£0.33
22	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	£472.59
23	MLS Bottom Cover 418-000-942 More Info >	£169.24
24	Mount Bracket Folding 418-000-398 More Info >	£30.24
26	Mount - Prox Rear 418-000-838 More Info >	£15.64
27	Mount Tab - Prox L&R 418-000-839 More Info >	£12.50
28	Mount Plate - Mls Electrical Box 418-000-867 More Info >	£64.86
29	Bracket - Remote Unlock 418-000-899 More Info >	£50.01
30	Cover - Remote Unlock 418-000-901 More Info >	£13.86
31	MLS Cover Insert 418-000-943 More Info >	£47.90
32	MLS Insert Retainer Plate 418-000-944 More Info >	£39.94
33	MLS Top Cover 418-000-970 More Info >	£239.13
34	Cab Controller Assembly - MLS with Drive Protect i See notes section for usage notes on this part 421-000-612 More Info >	£222.33
35	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	£99.87
36	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	£99.87
37	Clutch & Plug Assembly - MLS 421-000-138 More Info >	£1,614.02
38	Valve Bank & Plug Assembly - MLS - Pegasus 421-000-154 More Info >	£2,126.98
39	Control box subassembly - MLS with Drive Protect (for Pegasus S5) - Firmware flashed, decal applied, unit tested i See notes section for usage notes on this part 421-000-190 More Info >	Price on Request
40	Actuator Assembly 421-000-397 More Info >	£522.58
41	Washer - Crinkle 450-000-116 More Info >	£1.11
42	Retaining Washer - Electric Clutch 450-844-160 More Info >	£13.47
