NOTES:

Part #	Number on image	Usage Notes
421-000-714	22	6 x each of item #24 and #25 included. For replacement diode for serial# prior to 1088895 use diode P/N 421-000-689. The circuit board diode wouldnt be sold as a spare part.

781 - Pegasus S5 OptiAdjust 610 - Toolbox Electrical System

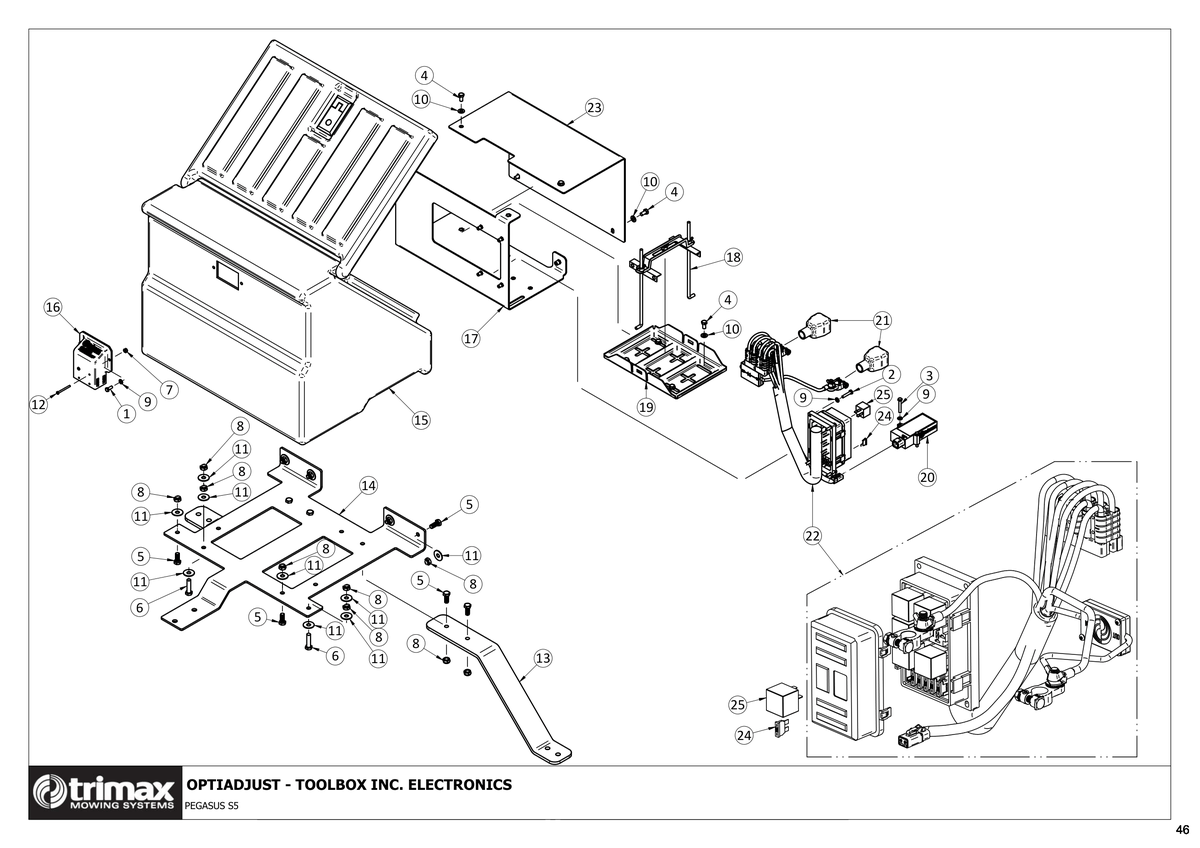

Pegasus S5 OptiAdjust 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	£0.38
2	Bolt - Hex Head - M6 x 30 - Trimax Specification 301-206-303 More Info >	£0.48
3	Bolt - Hex Head - M6 x 40 - Trimax Specification 301-206-403 More Info >	£0.58
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
5	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	£0.74
6	Bolt - Hex Head - M10 x 40 - Trimax Specification 301-210-403 More Info >	£0.99
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Nut - Nyloc 307-210-053 More Info >	£0.53
9	Washer - Flat 308-060-013 More Info >	£0.27
10	Washer - Flat 308-080-013 More Info >	£0.33
11	Washer - Fender 308-100-073 More Info >	£0.33
12	Screw 315-204-453	Price on Request
13	Leg - Front - Toolbox 418-000-921 More Info >	£62.49
14	Leg - Rear - Toolbox 418-000-922 More Info >	£163.35
22	Wiring Loom - Command Box i See notes section for usage notes on this part 421-000-714 More Info >	Price on Request
