NOTES:

Part #	Number on image	Usage Notes
424-000-304	16	For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310 For 610 Pegasus, Use P/N: 424-000-307. For 722 Pegasus , Use P/N: 424-000-310

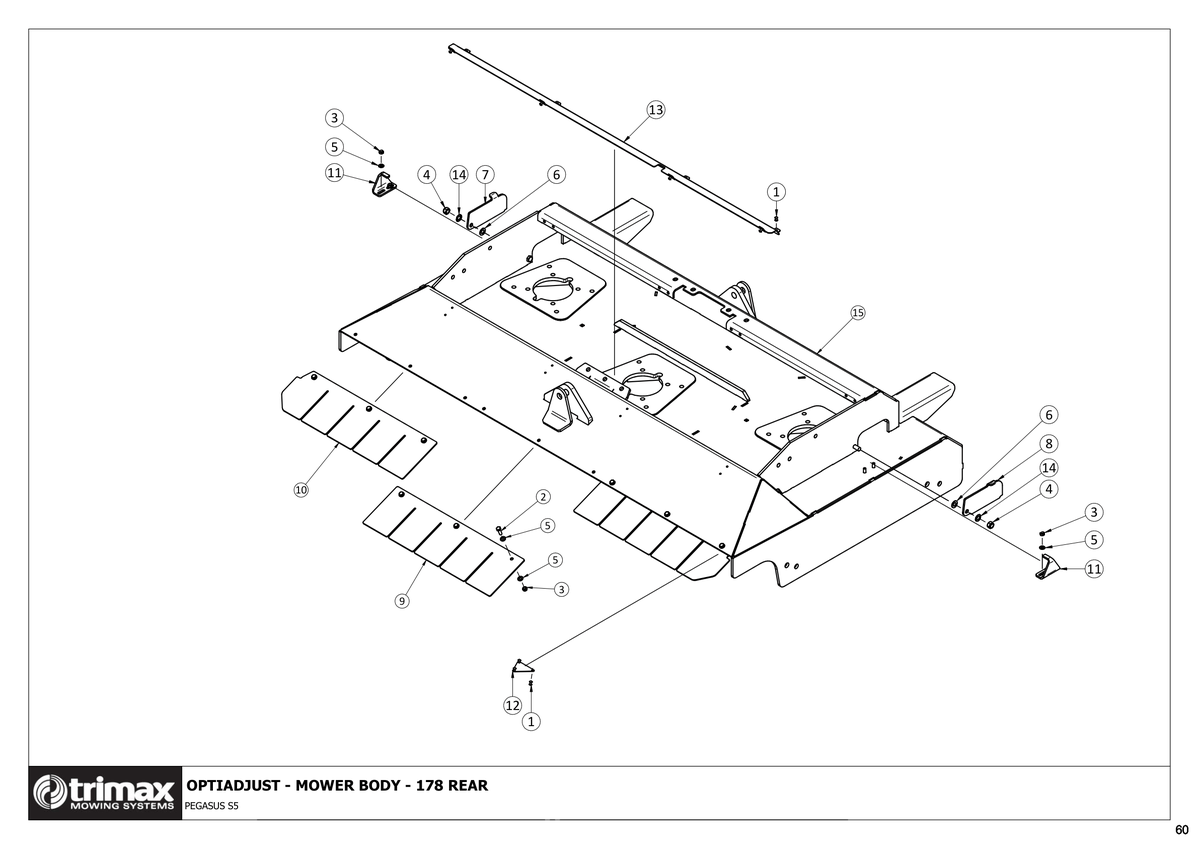

781 - Pegasus S5 OptiAdjust - Mower Body Assembly Rear

Pegasus S5 OptiAdjust 493, Pegasus S5 OptiAdjust 610, Pegasus S5 OptiAdjust 722

Grouped product items
No.	Product Name	Price
1	Blind Rivet 213-443-250 More Info >	£0.28
2	Bolt 301-208-253 More Info >	£0.65
3	Nut - Nyloc 307-208-056 More Info >	£0.53
4	Nut - Nyloc 307-212-053 More Info >	£0.53
5	Washer - Flat 308-080-016 More Info >	£0.33
6	Washer - Flat 308-120-013 More Info >	£0.33
7	Wash Panel - RH 410-000-134 More Info >	£19.16
8	Wash Panel - LH 410-000-135 More Info >	£19.16
9	Rear Flap - Inner - Procut S5 410-000-461 More Info >	£54.99
10	Rear Flap - Outer - Procut S5 410-000-463 More Info >	£25.36
12	Cap Plate 417-001-024 More Info >	£2.33
14	Washer - Crinkle 450-000-116 More Info >	£1.11
16	Decal Sheet – Pegasus S5 - 493 Rear Deck i See notes section for usage notes on this part 424-000-304	£46.58
