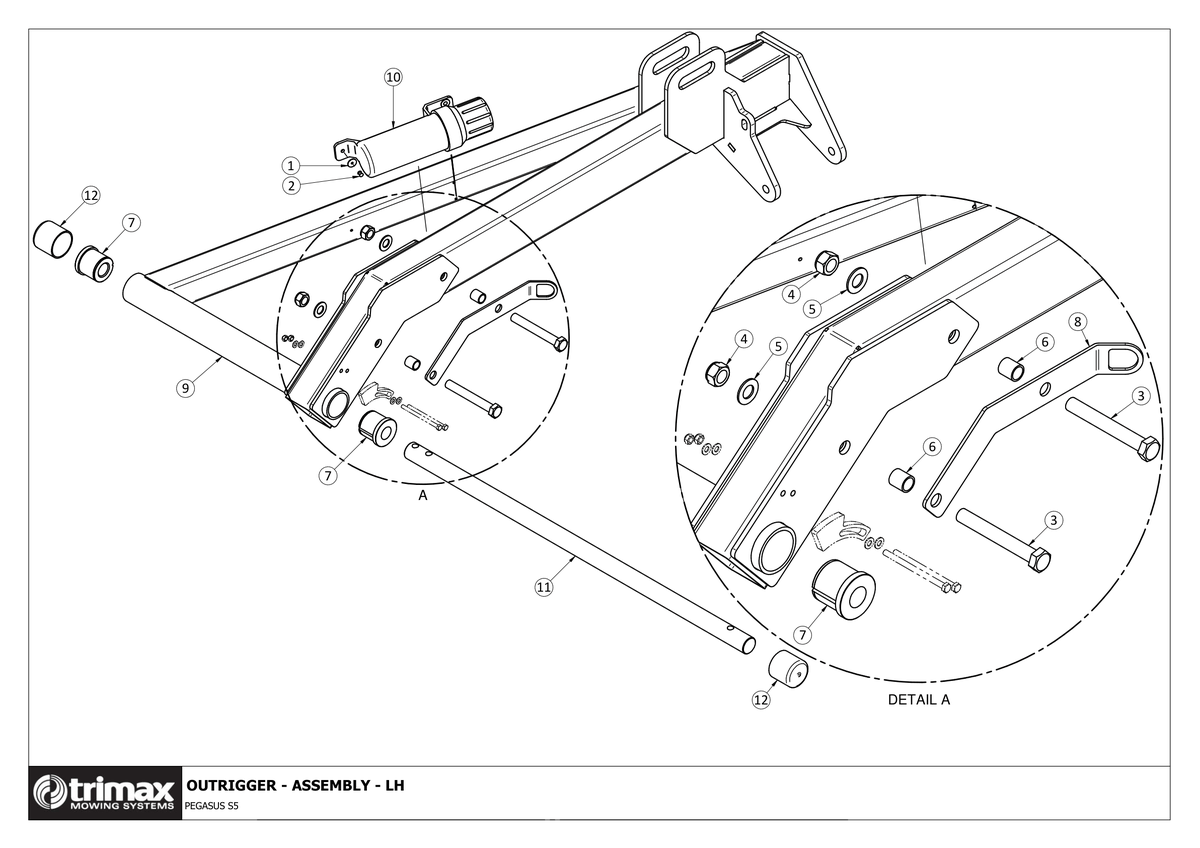

781 - Pegasus S5 - Outrigger Assembly LH

Pegasus S5 493, Pegasus S5 610, Pegasus S5 722

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
£0.33
2 Blind Rivet [213-000-004] Blind Rivet 213-000-004
£0.47
3 Bolt [301-620-153] Bolt 301-620-153
£7.19
4 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
£1.38
5 Washer - Flat [308-200-013] Washer - Flat 308-200-013
£0.85
6 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
£17.39
7 Hinge Bush - Outrigger [402-000-149] Hinge Bush - Outrigger 402-000-149
£39.83
8 Lock Boss Clevis Plate - Rh - Outrigger [418-000-879] Lock Boss Clevis Plate - Rh - Outrigger 418-000-879
£40.28
10 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
£31.95
11 Hinge Pin - Outrigger [419-000-066] Hinge Pin - Outrigger 419-000-066
£210.44
12 Cap - Hinge Pin Ø 1 ¼" [209-000-009] Cap - Hinge Pin Ø 1 ¼" 209-000-009
£5.60
