NOTES:

Part #	Number on image	Usage Notes
412-000-674	17	Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer
412-000-675	18	Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer
412-000-676	19	Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer Only required if the chassis height is adjusted after delivery to customer

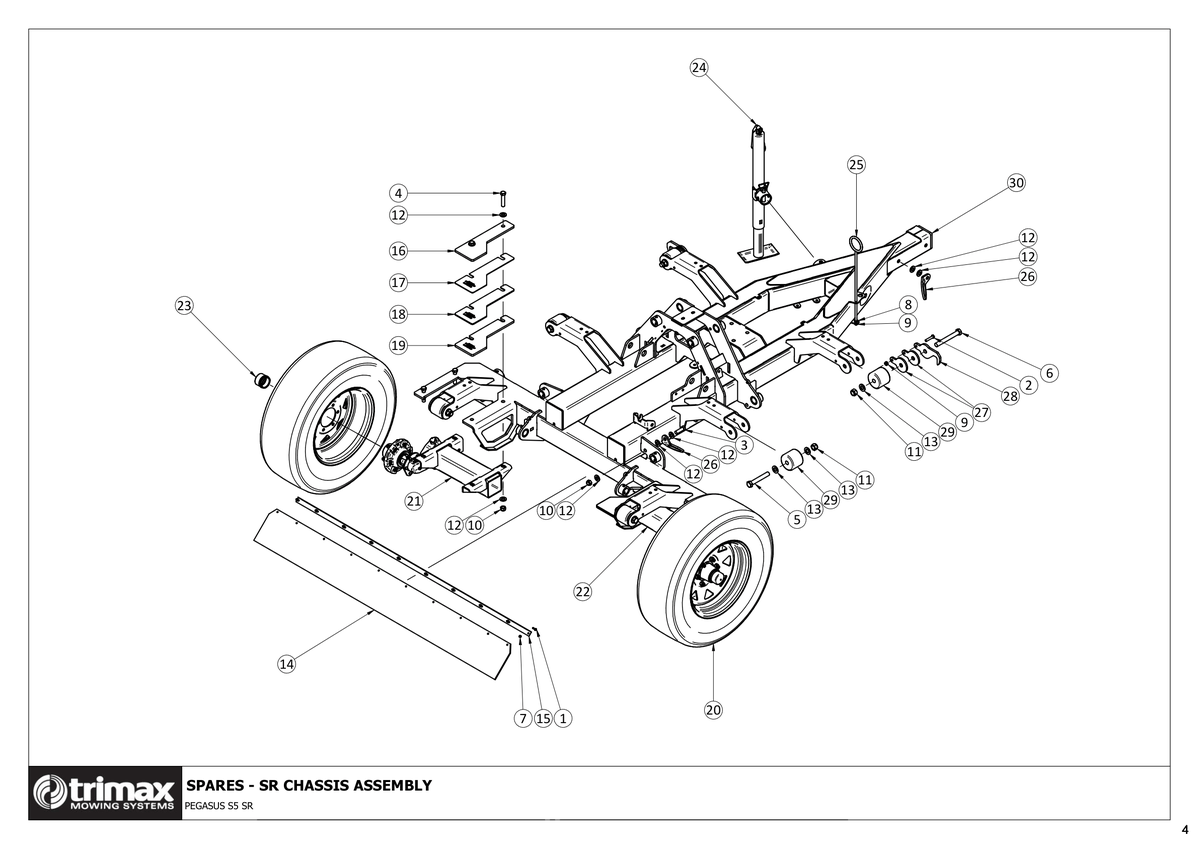

781 - Pegasus S5 SR - Chassis Assembly

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	Bolt 301-206-253 More Info >	£0.43
2	Bolt 301-210-503 More Info >	£1.27
3	Bolt 301-216-503 More Info >	£2.80
4	Bolt 301-216-753 More Info >	£3.91
5	Bolt 301-620-133 More Info >	£6.97
6	Bolt - Hex Head M20 x 160 ZP 8.8 301-620-163 More Info >	Price on Request
7	Nut - Nyloc 307-206-053 More Info >	£0.33
8	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	£0.42
9	Nut - Nyloc 307-210-053 More Info >	£0.53
10	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	£1.16
11	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	£1.38
12	Washer - Heavy Flat 308-160-063 More Info >	£0.58
13	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
14	Safety Flap - Deck - Rear 178 410-841-120 More Info >	£38.28
15	Clamp Strip - Safety Flap 178 410-841-200 More Info >	£38.28
16	Dummy Stem - Wearplate - Rear Deck - Pegasus S5 SR 412-000-673 More Info >	£69.59
17	Dummy Stem - 3mm Packer plate - Rear Deck - Pegasus S5 SR i See notes section for usage notes on this part 412-000-674 More Info >	£10.77
18	Dummy Stem - 5mm Packer plate - Rear Deck - Pegasus S5 SR i See notes section for usage notes on this part 412-000-675 More Info >	£20.01
19	Dummy Stem - 10mm Packer plate - Rear Deck - Pegasus S5 SR i See notes section for usage notes on this part 412-000-676 More Info >	£20.62
20	Tyre and Rim for Pegasus S5 416-000-118 More Info >	£443.61
23	Bearing Buddy - Complete Assembly 416-000-140 More Info >	£143.95
24	Parking Jack Assembly 418-000-217 More Info >	£280.98
25	Guide 418-000-466 More Info >	£29.56
27	Spacer - Transport Guide Hook 418-000-854 More Info >	£8.91
28	Hook - Transport Guide 418-000-855 More Info >	£10.73
29	Guide Roller 418-844-364 More Info >	£46.98
30	Chassis Weldment – Pegasus S5 510-000-072 More Info >	Price on Request
