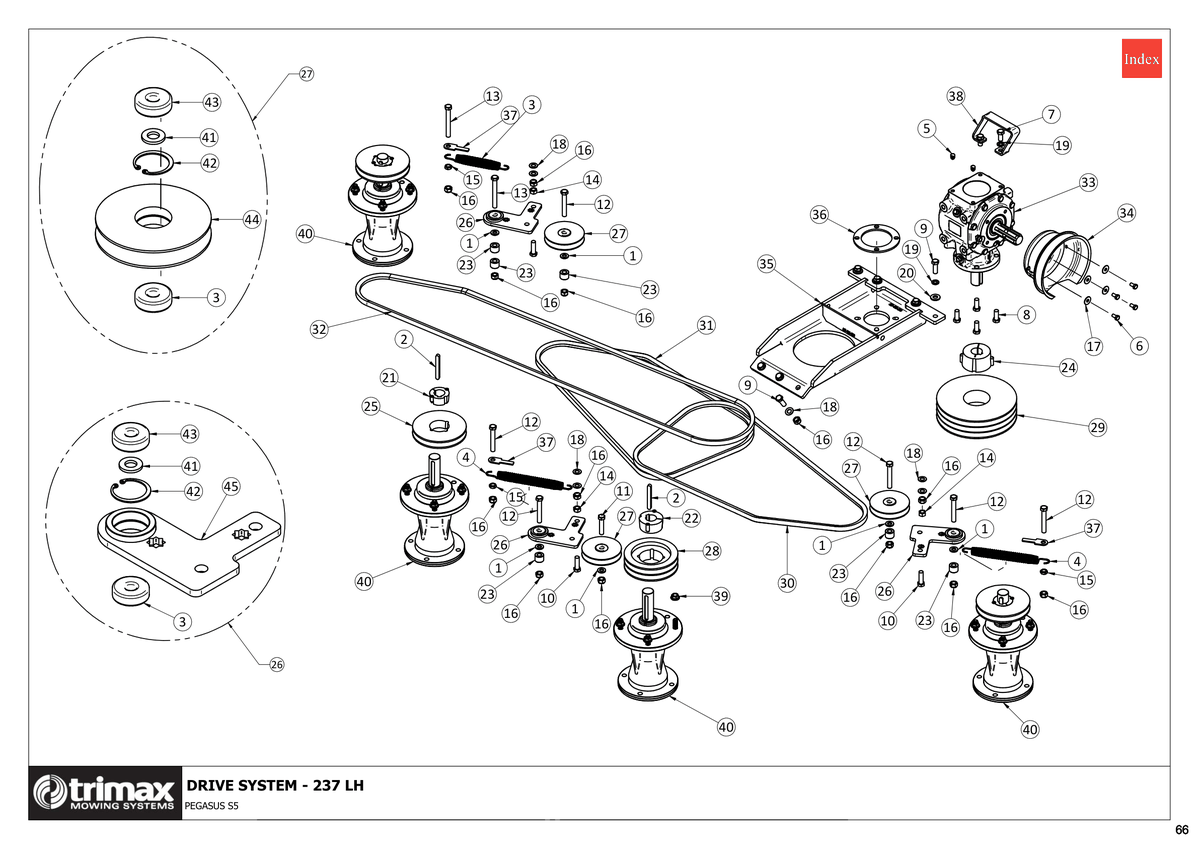

781 - Pegasus S5 SR - Drive System 237 LH

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No. Image Product Name Price Quantity
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
£2.97
3 Spring - Tension [207-000-009] Spring - Tension 207-000-009
£12.42
5 Blanking Plug [209-900-012] Blanking Plug 209-900-012
£0.91
6 Bolt [301-208-163] Bolt 301-208-163
£0.53
7 Bolt [301-212-253] Bolt 301-212-253
£1.16
8 Bolt [301-212-303] Bolt 301-212-303
£1.27
9 Bolt [301-212-353] Bolt 301-212-353
£1.38
10 Bolt [301-212-403] Bolt 301-212-403
£1.54
11 Bolt [301-212-553] Bolt 301-212-553
£2.27
12 Bolt [301-212-803] Bolt 301-212-803
£2.75
13 Bolt [301-612-103] Bolt 301-612-103
£2.64
14 Nut - Plain [307-212-013] Nut - Plain 307-212-013
£0.80
15 Nut - Half [307-212-023] Nut - Half 307-212-023
£1.01
16 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
£0.53
17 Washer- Fender M8 ZP [308-080-073] Washer- Fender M8 ZP 308-080-073
£0.33
18 Washer - Flat [308-120-013] Washer - Flat 308-120-013
£0.33
19 Washer - Spring [308-120-043] Washer - Spring 308-120-043
£0.33
20 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
£0.33
21 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
£13.47
22 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
£17.22
23 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm 402-000-134
£12.42
24 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
£31.05
25 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
£50.73
27 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
£45.50
28 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
£53.47
29 Pulley - Taper Lock [403-361-330] Pulley - Taper Lock 403-361-330
£113.29
30 Vee Belt [404-040-750] Vee Belt 404-040-750
£20.01
32 Vee Belt [404-041-150] Vee Belt 404-041-150
£33.16
33 Gearbox [405-200-720] Gearbox 405-200-720
£644.30
34 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
£26.40
35 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
£171.45
36 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
£41.13
38 Folding [418-000-633] Folding 418-000-633
£18.84
39 Nut - Flange [450-000-078] Nut - Flange 450-000-078
£1.80
40 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
£473.49
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
£1.69
42 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
£1.40
43 Bearing [401-021-900] Bearing 401-021-900
£10.30
44 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
£20.59
