NOTES:

Part #	Number on image	Usage Notes
421-000-392	28	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-393	30	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical
421-000-396	34	LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical LH and RH parts are identical

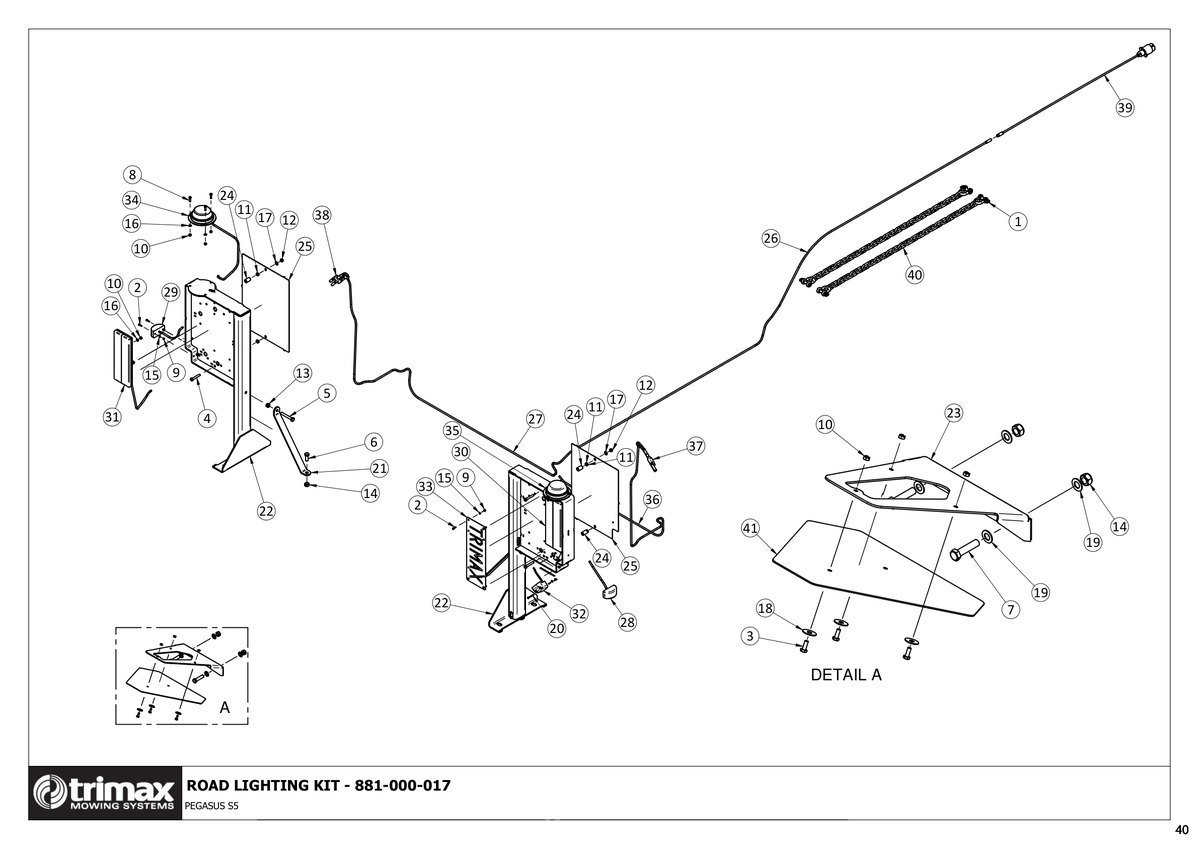

781 - Pegasus S5 SR - Road Kit - Option

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No.	Product Name	Price
1	D-Shackle NZS5467 214-000-002 More Info >	£19.09
2	Bolt 301-204-163 More Info >	£0.38
3	Bolt 301-206-163 More Info >	£0.38
4	Bolt 301-208-503 More Info >	£1.09
5	Bolt 301-210-703 More Info >	£1.87
6	Bolt 301-212-303 More Info >	£1.27
7	Bolt 301-212-503 More Info >	£1.74
9	Nut - Nyloc 307-204-053 More Info >	£0.27
10	Nut - Nyloc 307-206-053 More Info >	£0.33
11	Nut - Plain 307-208-013 More Info >	£0.33
12	Nut - Nyloc 307-208-053 More Info >	£0.43
13	Nut - Nyloc 307-210-053 More Info >	£0.53
14	Nut - Nyloc 307-212-053 More Info >	£0.53
15	Washer - Flat 308-040-013 More Info >	£0.33
16	Washer - Flat 308-060-013 More Info >	£0.27
17	Washer - Flat 308-080-013 More Info >	£0.33
18	Washer- Fender M8 ZP 308-080-073 More Info >	£0.33
19	Washer - Flat 308-120-013 More Info >	£0.33
20	Screw 315-204-356 More Info >	Price on Request
21	Tie Support Rod- Mudguard 410-000-432 More Info >	£9.54
22	Road Lighting - Weldment - L&R 418-000-911 More Info >	£336.38
23	Mount Plate - Slow Moving Triangle 418-000-916 More Info >	£53.68
24	Light Bracket - Cover Plate Spacer 418-000-931 More Info >	£19.57
25	Light Bracket - Cover Plate 418-000-932 More Info >	£38.01
26	Loom - Tail Light Cable 3.7m 5 Core Split End 421-000-067 More Info >	£57.44
27	Loom - Tail Light Cable 1.9m 421-000-069 More Info >	£24.18
28	Light - Side Marker i See notes section for usage notes on this part 421-000-392 More Info >	£59.75
30	Led - Indicator & Stop Combination Pegasus S5 Custom with 500mm Wire & Plug i See notes section for usage notes on this part 421-000-393 More Info >	£105.04
32	Light - Number Plate 421-000-394 More Info >	£57.83
34	Led Strobe Light - Safety Beacon i See notes section for usage notes on this part 421-000-396 More Info >	£74.06
36	Cable - 1.7m 4 Core Gooseneck End 421-000-400 More Info >	£35.88
37	2 Core Splitter Plug - 3 Way NAPA Part Number: 2P4WB 421-000-418 More Info >	£3.21
38	2 Core Splitter Plug - 2 Way 421-000-450 More Info >	£5.59
39	Loom - Trailer Plug inc. Cable 1m /w Steel Plug 421-000-586 More Info >	£49.00
41	Sign - Safety Triangle 450-000-124 More Info >	£81.56
