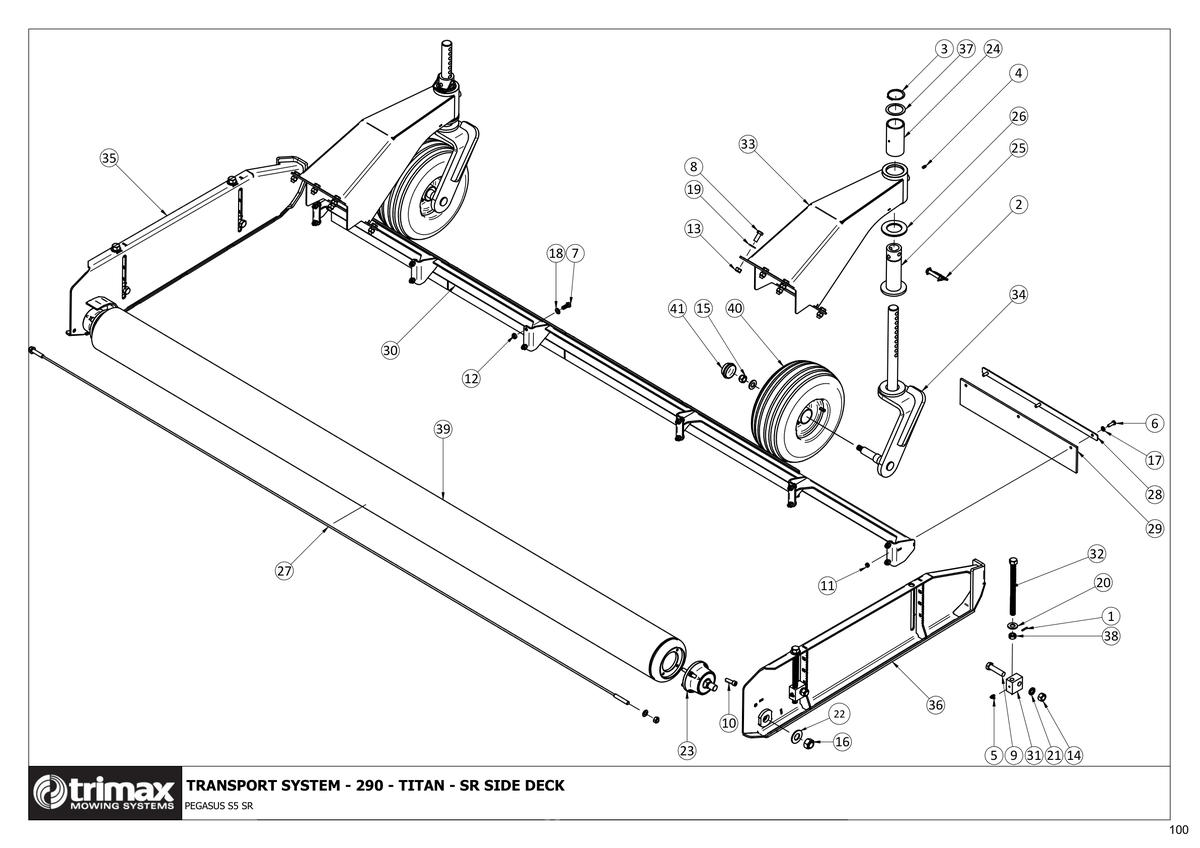

781 - Pegasus S5 SR - Transport System 290 - Side Deck

Pegasus S5 SR 493, Pegasus S5 SR 610, Pegasus S5 SR 722

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
£1.86
2 Shaft Locking Pin [203-000-001] Shaft Locking Pin 203-000-001
£3.17
3 Circlip/Snap Ring - External [204-820-522] Circlip/Snap Ring - External 204-820-522
£1.56
4 Grease Nipple [208-442-600] Grease Nipple 208-442-600
£1.96
5 Grease Nipple [208-442-650] Grease Nipple 208-442-650
£2.54
6 Bolt [301-208-253] Bolt 301-208-253
£0.65
7 Bolt [301-210-253] Bolt 301-210-253
£0.74
8 Bolt [301-212-303] Bolt 301-212-303
£1.27
9 Bolt [301-216-653] Bolt 301-216-653
£3.65
10 Cap Screw [303-210-353] Cap Screw 303-210-353
£1.38
11 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
£0.53
12 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
£0.53
13 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
£0.53
14 Nut - Plain [307-216-013] Nut - Plain 307-216-013
£1.01
15 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
£1.16
16 Nyloc Nut M22 [307-222-053] Nyloc Nut M22 307-222-053
£1.80
17 Washer - Flat [308-080-016] Washer - Flat 308-080-016
£0.33
18 Washer - Flat [308-100-013] Washer - Flat 308-100-013
£0.33
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
£0.33
20 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
£0.58
21 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
£3.07
22 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
£1.33
23 Bearing Assembly - Titan [401-000-035] Bearing Assembly - Titan 401-000-035
£199.34
24 Bush - Pivot [402-320-060] Bush - Pivot 402-320-060
£107.89
25 Boss - Pivot [402-320-070] Boss - Pivot 402-320-070
£219.06
26 Washer - Thrust [402-320-080] Washer - Thrust 402-320-080
£26.67
27 Scraper - Roller 290 [404-320-129] Scraper - Roller 290 404-320-129
£58.61
28 Front Flap - Retaining Strip - Procut S5 [410-000-472] Front Flap - Retaining Strip - Procut S5 410-000-472
£47.68
30 Bumper Weldment - 290 - Procut S5 [410-000-479] Bumper Weldment - 290 - Procut S5 410-000-479
£312.68
31 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
£42.13
32 Screw Height Adj. 220mm 10.9 Grade [412-000-653] Screw Height Adj. 220mm 10.9 Grade 412-000-653
£18.48
33 Castor Arm - Rotating - Weldment - Side Deck - Pegasus S5 SR [412-000-655] Castor Arm - Rotating - Weldment - Side Deck - Pegasus S5 SR 412-000-655
£337.82
34 Castor Fork - Rotating -Weldment - Side Deck - Pegasus S5 SR [412-000-658] Castor Fork - Rotating -Weldment - Side Deck - Pegasus S5 SR 412-000-658
£411.50
35 SR Side Channel - Weldment - LH - Pegasus S5 SR [412-000-668] SR Side Channel - Weldment - LH - Pegasus S5 SR 412-000-668
£430.63
36 SR Side Channel - Weldment - RH - Pegasus S5 SR [412-000-669] SR Side Channel - Weldment - RH - Pegasus S5 SR 412-000-669
£430.63
37 Washer - Retaining - Pegasus S5 SR [412-000-671] Washer - Retaining - Pegasus S5 SR 412-000-671
£1.05
38 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
£14.44
39 Roller Weldment [414-000-159] Roller Weldment 414-000-159
£683.57
40 Wheel Assembly [416-449-010] Wheel Assembly 416-449-010
£183.01
41 Grease Cap - Front Castor [416-449-015] Grease Cap - Front Castor 416-449-015
£12.78
