NOTES:

Part #	Number on image	Usage Notes
406-000-001	15	Use part number 406-000-001 - For 6 Spline Yoke Use part number 406-000-072 - For 21 Spline Yoke
406-000-072	16	Use part number 406-000-001 - For 6 Spline Yoke Use part number 406-000-072 - For 21 Spline Yoke
406-340-870	27	Use part number 406-000-075 - For X-WAM DR Variants Use part number 406-340-870 - For X-WAM ZR Variants

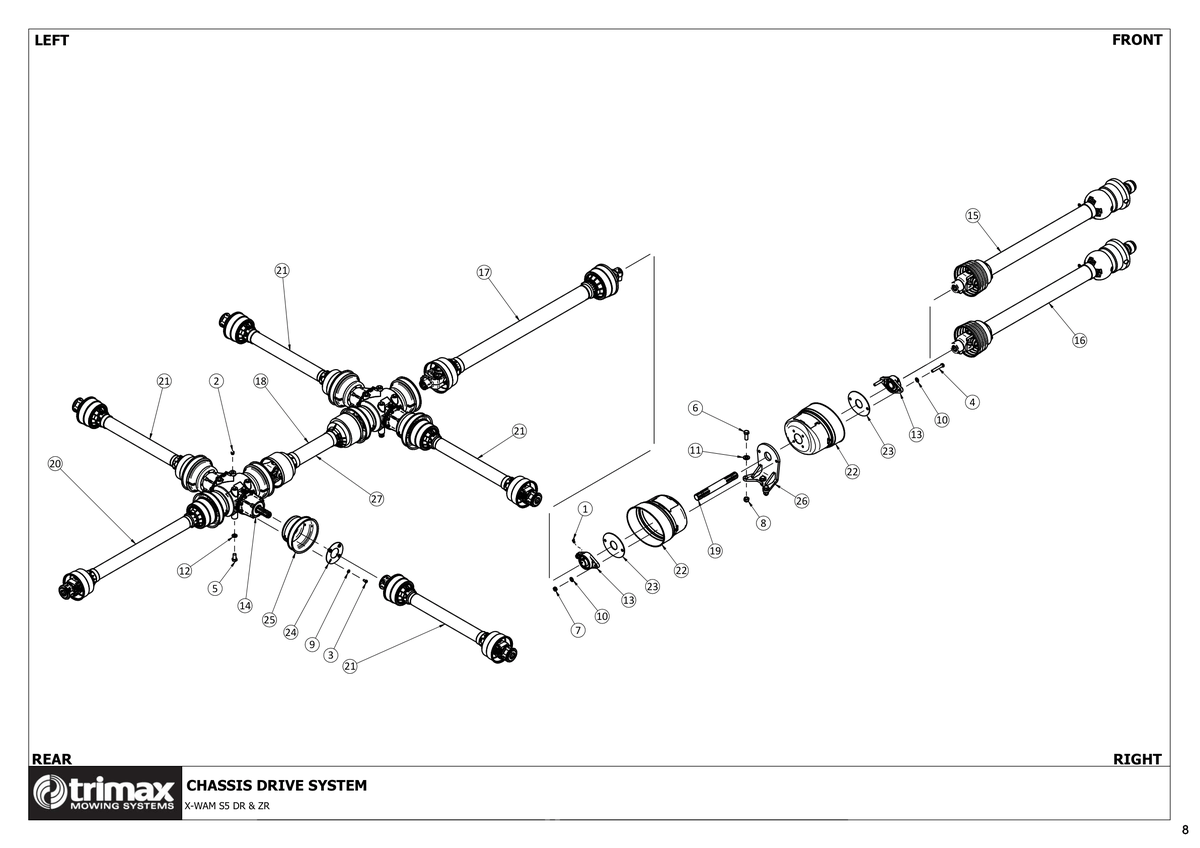

783 - X-WAM S5 - Chassis Drive System

X-WAM S5

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-620 More Info >	£2.07
2	Blanking Plug 209-900-013 More Info >	£0.96
3	Bolt 301-208-163 More Info >	£0.53
4	Bolt 301-212-753 More Info >	£2.54
5	Bolt 301-216-303 More Info >	£2.39
6	Bolt 301-216-403 More Info >	£2.64
7	Nut - Nyloc 307-212-053 More Info >	£0.53
8	Nut - Nyloc 307-216-053 More Info >	£1.16
9	Washer - Flat 308-080-013 More Info >	£0.33
10	Washer - Flat 308-120-013 More Info >	£0.33
11	Washer - Heavy Flat 308-160-063 More Info >	£0.58
12	Washer - Nordloc 308-160-083 More Info >	£3.07
13	Bearing Assembly 401-020-701 More Info >	£50.83
14	Gearbox 405-201-020 More Info >	£1,127.83
15	PTO Shaft i See notes section for usage notes on this part 406-000-001 More Info >	£906.93
16	PTO Shaft - T60 1-3/8" 21 Spline x 1350 i See notes section for usage notes on this part 406-000-072	Price on Request
20	PTO Shaft 406-340-570 More Info >	£334.81
21	PTO Shaft 406-340-590 More Info >	£322.38
24	PTO Guard Cone Retaining Disc 410-000-586 More Info >	Price on Request
25	Cone - PTO Holes Punched 410-440-402 More Info >	£20.44
27	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) i See notes section for usage notes on this part 406-340-870 More Info >	£322.38
