NOTES:

Part #	Number on image	Usage Notes
409-000-086	17	Use part number 408-000-075 - Seal Kit for Rear Hydraulic Cylinder
409-000-113	29	Use part number 409-000-090 - Hydraulic Cylinder on X-WAM S5 DR variants only. Use part number 409-000-113 - Hydraulic Cylinder LH on X-WAM S5 ZR variants only. Use part number 409-000-114 - Hydraulic Cylinder RH on X-WAM S5 ZR variants only. Use part number 408-000-071 - Seal Kit for X-WAM S5 DR Side Hydraulic Cylinder Use part number 408-000-098 - Seal Kit for X-WAM S5 ZR Side Hydraulic Cylinder
409-000-114	30	Use part number 409-000-090 - Hydraulic Cylinder on X-WAM S5 DR variants only. Use part number 409-000-113 - Hydraulic Cylinder LH on X-WAM S5 ZR variants only. Use part number 409-000-114 - Hydraulic Cylinder RH on X-WAM S5 ZR variants only. Use part number 408-000-071 - Seal Kit for X-WAM S5 DR Side Hydraulic Cylinder Use part number 408-000-098 - Seal Kit for X-WAM S5 ZR Side Hydraulic Cylinder

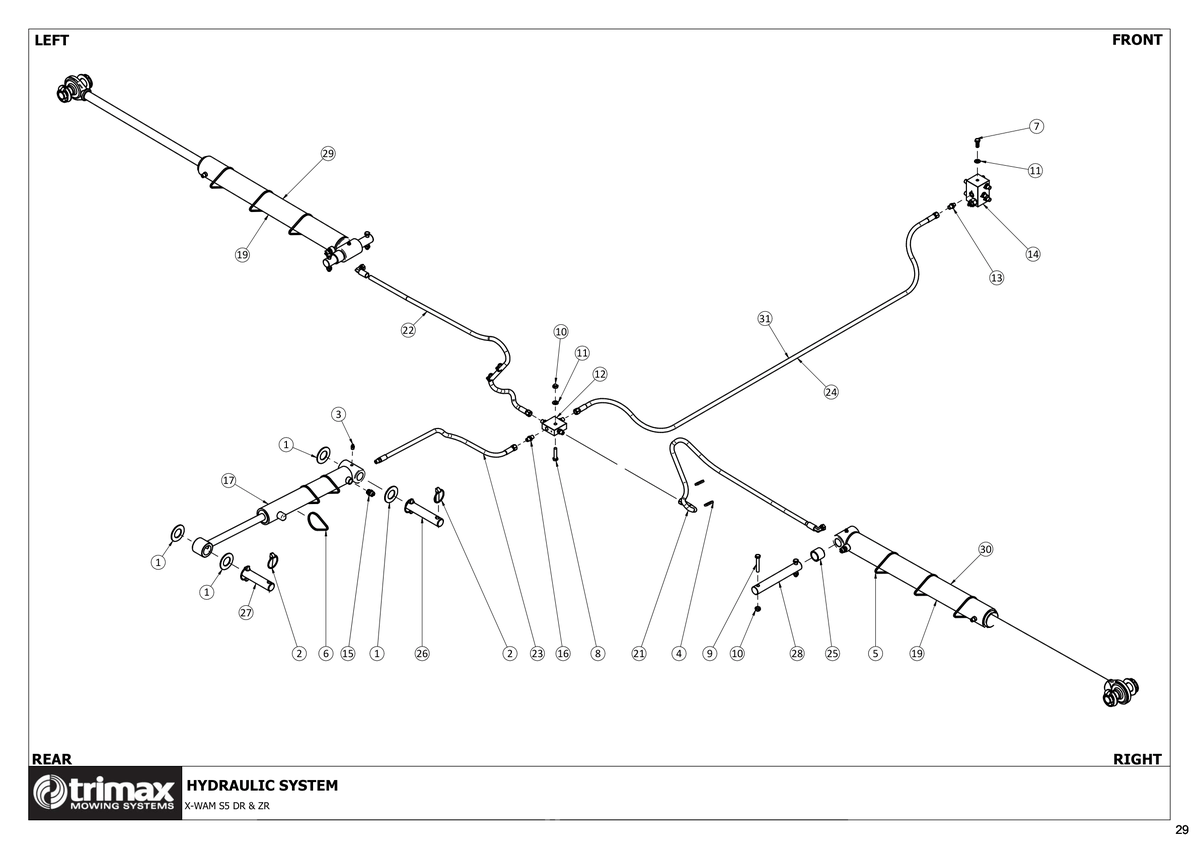

783 - X-WAM S5 - Hydraulic System - Rear

X-WAM S5

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	£2.00
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Grease Nipple - Straight 1/8" (Trimax Specification) 208-442-550 More Info >	£2.80
4	Cable Tie - 382x7.5mm - Black 210-900-011 More Info >	Price on Request
7	Bolt 301-210-253 More Info >	£0.74
8	Bolt 301-210-453 More Info >	£1.09
9	Bolt 301-210-653 More Info >	£1.80
10	Nut - Nyloc 307-210-053 More Info >	£0.53
11	Washer - Flat 308-100-013 More Info >	£0.33
13	Adaptor 408-000-030 More Info >	Price on Request
15	Breather - Capped 3/8" BSP 408-000-083 More Info >	£22.50
17	Hydraulic Cylinder - Ø2" x 335 Stroke - Snake i See notes section for usage notes on this part 409-000-086 More Info >	£733.99
25	Spacer Tube 418-000-510 More Info >	£24.92
26	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.94
27	Pin - Hydraulic Cylinder 419-000-039 More Info >	£14.84
28	Pin - Lift Ram - Chassis 419-000-068 More Info >	£122.60
29	Cylinder i See notes section for usage notes on this part 409-000-113	£775.47
30	Cylinder i See notes section for usage notes on this part 409-000-114	£775.47
