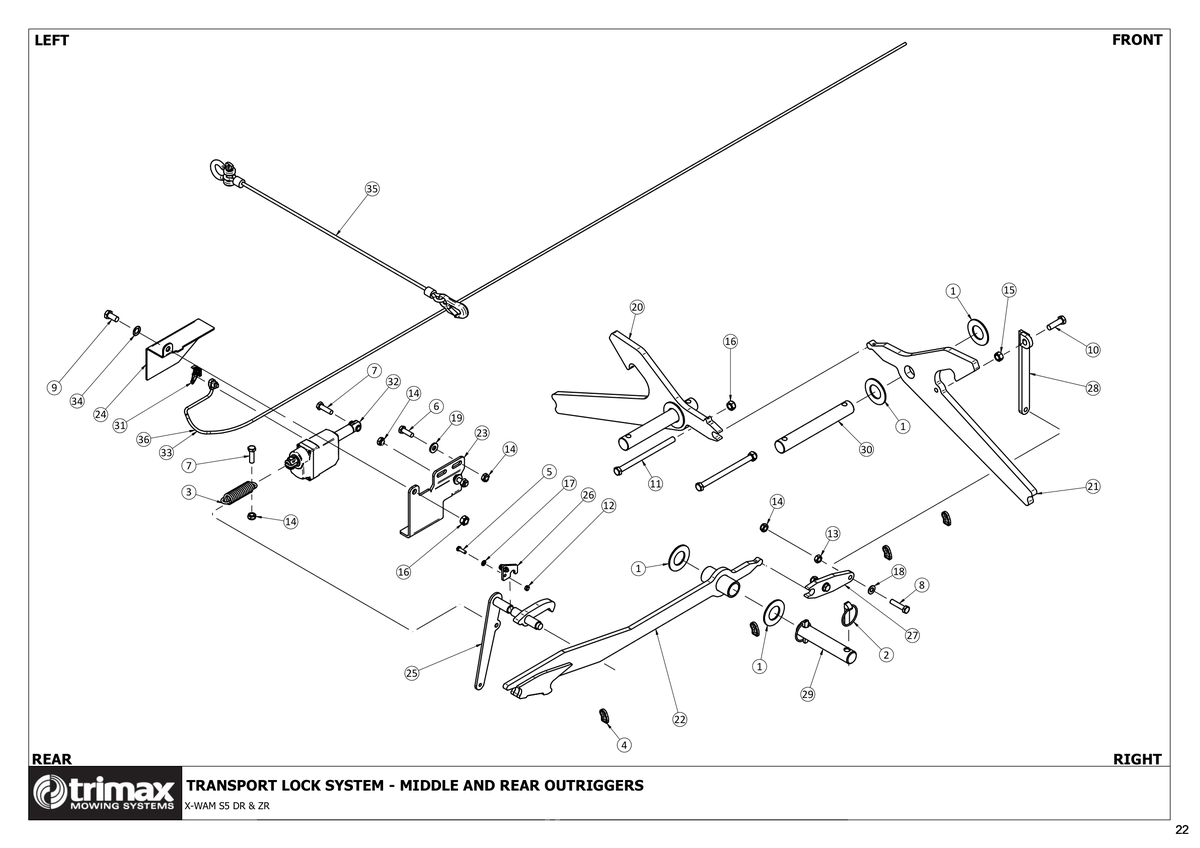

783 - X-WAM S5 - Transport Lock System - Middle and Rear Outriggers

X-WAM S5

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	£2.00
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
3	Spring - Tension 207-000-008 More Info >	£48.65
4	Cable Tie - 382x7.5mm - Black 210-900-011 More Info >	Price on Request
5	Bolt 301-206-203 More Info >	£0.43
6	Bolt 301-210-303 More Info >	£0.80
7	Bolt 301-210-353 More Info >	£0.91
8	Bolt 301-210-453 More Info >	£1.09
9	Bolt 301-212-253 More Info >	£1.16
10	Bolt 301-212-403 More Info >	£1.54
11	Bolt 301-612-183 More Info >	£5.80
12	Nut - Nyloc 307-206-053 More Info >	£0.33
13	Nut - Plain 307-210-013 More Info >	£0.42
14	Nut - Nyloc 307-210-053 More Info >	£0.53
15	Nut - Plain 307-212-013 More Info >	£0.80
16	Nut - Nyloc 307-212-053 More Info >	£0.53
17	Washer - Flat 308-060-013 More Info >	£0.27
18	Washer - Flat 308-100-013 More Info >	£0.33
19	Washer - Heavy Flat 308-100-063 More Info >	£0.33
20	Plate - Lh - Lock Mech 418-000-864 More Info >	£164.96
21	Plate - Rh - Lock Mech 418-000-865 More Info >	£164.96
22	Lock Weldment - Rear 418-000-866 More Info >	£165.21
23	Bracket - Remote Unlock 418-000-899 More Info >	£50.01
24	Cover - Remote Unlock 418-000-901 More Info >	£13.86
25	Lever - Weldment - Remote Unlock 418-000-903 More Info >	£109.84
26	Plate - Remote Unlock 418-000-905 More Info >	£2.66
27	Lock Bell Crank 418-000-938 More Info >	£34.27
28	Lock Linkage Weldment 418-000-949 More Info >	£65.23
29	Pin - Hydraulic Cylinder 419-000-035 More Info >	£15.94
30	Pin - Lift Ram - Chassis 419-000-068 More Info >	£122.60
31	Actuator 421-000-082	£4.35
32	Actuator - 50mm Stroke 421-000-188	Price on Request
34	Washer - Crinkle 450-000-116 More Info >	£1.11
35	Safety Rope Assembly 506-000-079 More Info >	£44.02
