NOTES:

Part #	Number on image	Usage Notes
408-000-054	26	For mowers with 2 blades per spindle use 408-000-068, for mowers with Quattro option (4 blades per spindle) use 408-000-065 For mowers with 2 blades per spindle use 408-000-068, for mowers with Quattro option (4 blades per spindle) use 408-000-065
418-000-651	34	Bolt on Cams from serial number onwards: 727-493-410-0058 Painted NZ / 727-610-400-0063 Painted NZ / 727-493-410-0001 Galv NZ / 727-610-410-0063 Galv NZ. Prior mowers had weld on cams Bolt on Cams from serial number onwards: 727-493-410-0058 Painted NZ / 727-610-400-0063 Painted NZ / 727-493-410-0001 Galv NZ / 727-610-410-0063 Galv NZ. Prior mowers had weld on cams

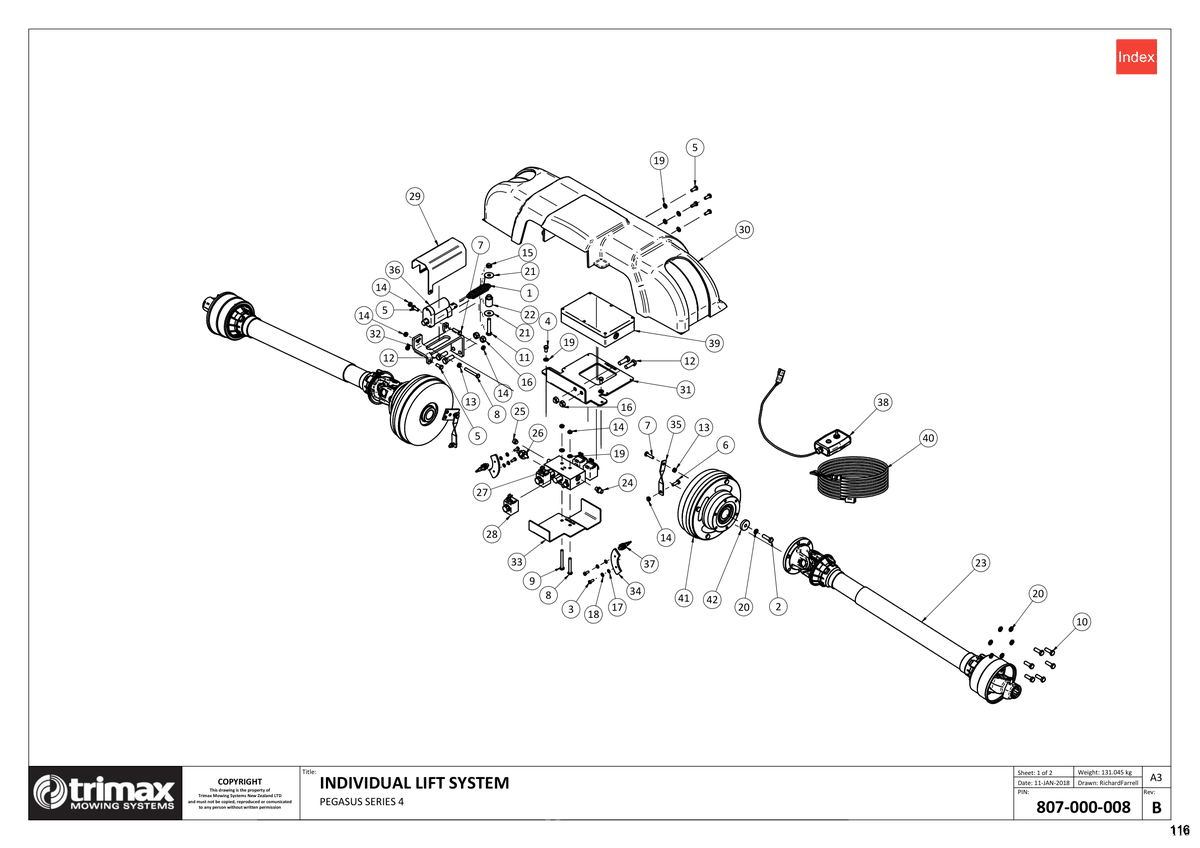

Individual Lift System - Pegasus S4

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Spring - Tension 207-000-008 More Info >	£48.65
2	Bolt 301-110-353 More Info >	£2.06
3	Bolt - Hex Head - M6 x 12 - Trimax Specification 301-206-123 More Info >	£0.38
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
5	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	£0.58
6	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	£0.65
7	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	£0.78
8	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	£1.11
9	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	£1.30
10	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
11	Bolt - Hex Head - M10 x 60 - Trimax Specification 301-210-603 More Info >	£1.35
12	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
13	Nut - Plain 307-208-013 More Info >	£0.33
14	Nut - Nyloc 307-208-056 More Info >	£0.53
15	Nut - Nyloc 307-210-053 More Info >	£0.53
16	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
17	Washer - Flat 308-060-013 More Info >	£0.27
18	Washer - Spring 308-060-043 More Info >	£0.27
19	Washer - Flat 308-080-016 More Info >	£0.33
20	Washer - Spring 308-100-043 More Info >	£0.33
21	Washer - Fender 308-100-073 More Info >	£0.33
22	Pivot Bush 402-000-102 More Info >	£35.74
23	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	£472.59
24	Adaptor 408-000-030 More Info >	Price on Request
25	Plug 408-000-031 More Info >	Price on Request
26	Needle Valve i See notes section for usage notes on this part 408-000-054 More Info >	Price on Request
27	Hydraulic Cartridge Valve Bank 409-000-043 More Info >	£2,126.98
28	Coil 409-000-044 More Info >	£107.06
29	Sheild - Electric Unlock Actuator 410-000-287 More Info >	£33.16
30	Cover - Command Module 410-000-304 More Info >	£937.47
31	Mount Bracket Folding 418-000-396 More Info >	£163.39
32	Mount Bracket Folding 418-000-397 More Info >	£38.96
33	Mount Bracket Folding 418-000-398 More Info >	£30.24
34	Proximity Cam i See notes section for usage notes on this part 418-000-651 More Info >	£38.06
35	Clutch Mount Bracket 418-844-170 More Info >	£6.39
36	Unlock Actuator w Wiring/Plug - ILS 421-000-003 More Info >	£518.83
37	Proximity Sensor Kit - Unshielded incl. Connector 421-000-042 More Info >	£163.27
38	Switch Box 421-000-065 More Info >	£248.47
39	Electronic Control Unit 421-000-070 More Info >	Price on Request
40	Cable Gland/Plug/Spade - ILS/QuikLift Switchbox/Joystick 5m 421-000-071 More Info >	£165.27
41	Magnetic Clutch 421-441-250 More Info >	£1,551.26
42	Retaining Washer - Electric Clutch 450-844-160 More Info >	£13.47
