NOTES:

Part #	Number on image	Usage Notes
421-000-091	29	Use P/N 421-000-186 Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable Use P/N 421-000-186 Extension Adaptor Hand Controller cable for MLS units with short hand control cable or when replacing a hand controller with long cable

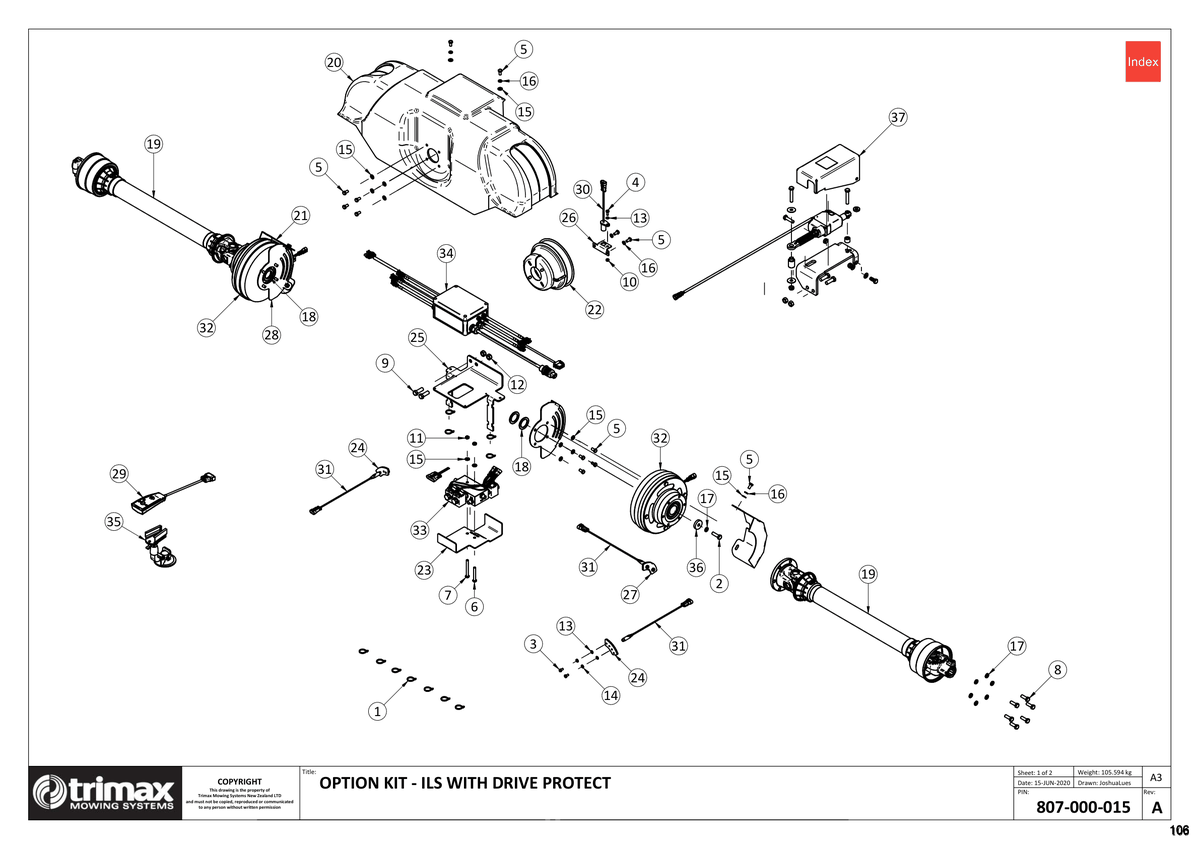

Option Kit - ILS With Drive Protect

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Cable tie 210-900-014 More Info >	Price on Request
2	Bolt 301-110-353 More Info >	£2.06
3	Bolt - Hex Head - M6 x 12 - Trimax Specification 301-206-123 More Info >	£0.38
4	Bolt - Hex Head - M6 x 16 - Trimax Specification 301-206-163 More Info >	£0.38
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
6	Bolt - Hex Head - M8 x 60 - Trimax Specification 301-208-603 More Info >	£1.11
7	Bolt - Hex Head - M8 x 75 - Trimax Specification 301-208-753 More Info >	£1.30
8	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	£0.80
9	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
10	Nut - Nyloc 307-206-053 More Info >	£0.33
11	Nut - Nyloc 307-208-056 More Info >	£0.53
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
13	Washer - Flat 308-060-013 More Info >	£0.27
14	Washer - Spring 308-060-043 More Info >	£0.27
15	Washer - Flat 308-080-016 More Info >	£0.33
16	Washer - Spring 308-080-043 More Info >	£0.33
17	Washer - Spring 308-100-043 More Info >	£0.33
18	Thrust Washer 402-000-104 More Info >	£25.45
19	PTO Shaft - 6 Bolt Flange 406-340-592 More Info >	£472.59
20	Cover - Command Module 410-000-304 More Info >	£937.47
21	Clutch Cover Weldment - MLS 410-000-357 More Info >	£51.08
22	PTO Cone - MLS - sensor/holes punched 410-440-404 More Info >	£8.49
23	Mount Bracket Folding 418-000-398 More Info >	£30.24
24	Proximity Cam 418-000-650 More Info >	£17.58
25	Folding 418-000-773 More Info >	Price on Request
27	Plate 418-000-777 More Info >	Price on Request
28	Clutch Cover Mount MLS Weldment 418-000-779 More Info >	£52.97
29	Cab Controller Assembly - ILS with Drive Protect i See notes section for usage notes on this part 421-000-091 More Info >	£229.04
30	Sensor & Cable Assembly - PTO Sensor - MLS 421-000-117 More Info >	£99.87
31	Sensor & Cable Assembly - Prox Sensor - MLS 421-000-118 More Info >	£99.87
32	Clutch & Plug Assembly - MLS 421-000-138 More Info >	£1,614.02
33	Valve Bank & Plug Assembly - MLS - Pegasus 421-000-154 More Info >	£2,126.98
34	Control box subassembly - ILS with Drive Protect - Firmware flashed, decal applied, unit tested 421-000-161 More Info >	£570.88
35	Cab Controller Mount Assembly - MLS 421-000-172 More Info >	£106.05
36	Retaining Washer - Electric Clutch 450-844-160 More Info >	£13.47
37	Remote Unlock parts kit for MLS OR Remote Unlock update kit - Pegasus S4 807-000-017 More Info >	£550.80
