NOTES:

Part #	Number on image	Usage Notes
504-000-133	28	The new spindle with keyway is backwards compatible with prior machines

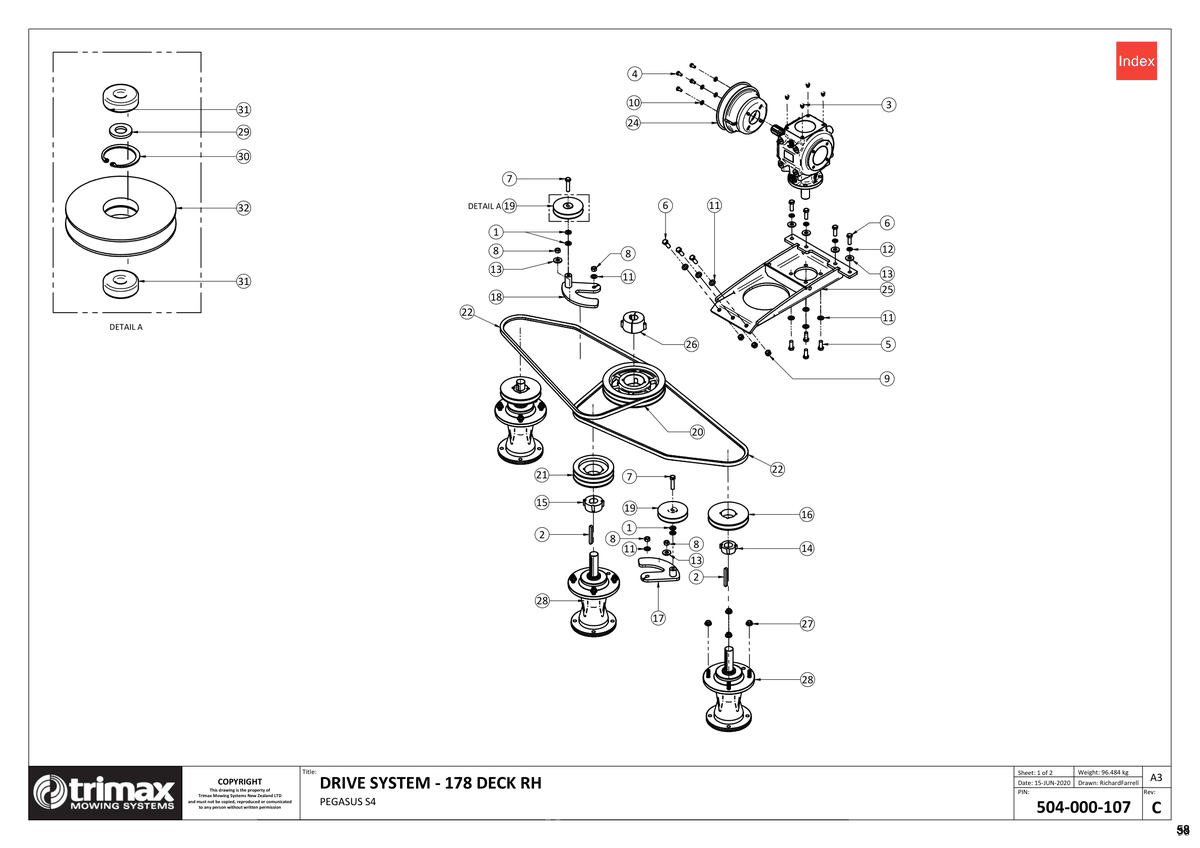

Pegasus S4 Drive System 178 Deck RH – Current

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	£1.69
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	£2.97
3	Blanking Plug - M12 209-900-012 More Info >	£0.91
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	£0.53
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	£1.27
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	£1.38
7	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	£1.74
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
10	Washer - Flat 308-080-013 More Info >	£0.33
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
12	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
13	Washer - Heavy Flat 308-120-063 More Info >	£0.33
14	Bush - Taper Lock 402-000-078 More Info >	£13.47
15	Bush - Taper Lock 402-000-090 More Info >	£17.22
16	Pulley - Taper Lock 403-000-083 More Info >	£50.73
17	Idler Tower Incl Base 403-330-423 More Info >	£55.89
18	Idler Tower Incl Base 403-330-432 More Info >	£39.97
19	Pulley Assembly - Idler 403-360-111 More Info >	£45.50
20	Pulley - Taper Lock - Trimax Specification 403-000-128 More Info >	£84.78
21	Pulley - Taper Lock 403-361-140 More Info >	£53.47
22	Vee Belt - Trimax Specification 404-040-750 More Info >	£20.01
23	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
24	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	£26.40
25	Gearbox Mount Weldment 417-001-197 More Info >	£547.81
26	Bush - Taper Lock 402-060-820 More Info >	£31.05
27	Nut - Flange 450-000-078 More Info >	£1.80
28	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	£473.49
30	Circlip/Snap Ring - Internal 204-820-371 More Info >	£1.40
31	Bearing - Trimax Specification - 401-021-900 More Info >	£10.30
32	Pulley - Idler 403-360-110 More Info >	£20.59
