NOTES:

Part #	Number on image	Usage Notes
402-061-050	7	Early type Needle roller bearings and Nylon bushes are now directly replaced with a Greasable Hardened Steel Bush.
412-320-112	11	For serial numbers PCD352 and earlier, use [412-320-110] Wing Skid 160mm.
414-320-015	18	For serial numbers PCD192 to PCD352, use [414-320-009] 5" Front Roller. For serial numbers PCD191 and earlier, use [414-320-007] 5" Front Roller.
414-320-014	19	For serial numbers PCD352 and earlier, use [414-320-008] 5" Rear Roller.
410-330-373	38	For serial numbers PCD300 to STD036, use [410-330-373] Left Body Cover. For serial numbers PCD192 to PCD299, use [410-330-373] Left Body Cover. For serial numbers PCD191 and earlier, use [410-330-363] Left Body Cover.
410-330-374	39	For serial numbers PCD300 to STD036, use [410-330-374] Right Body Cover. For serial numbers PCD192 to PCD299, use [410-330-374] Right Body Cover. For serial numbers PCD191 and earlier, use [410-330-364] Right Body Cover.
410-330-383	40	For serial numbers PCD300 to STD036, use [410-330-383] Left Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-377] Left Wing Cover. For serial numbers PCD191 and earlier, use [410-330-367] Left Wing Cover.
410-330-384	41	For serial numbers PCD300 to STD036, use [410-330-384] Right Wing Cover. For serial numbers PCD192 to PCD299, use [410-330-378] Right Wing Cover. For serial numbers PCD191 and earlier, use [410-330-368] Right Wing Cover.
410-330-375	42	For serial numbers PCD300 and earlier, use [410-330-365] Filler Rubber.
423-080-220	45	For serial numbers STD041 and earlier, use [423-080-200] Cover Latch.

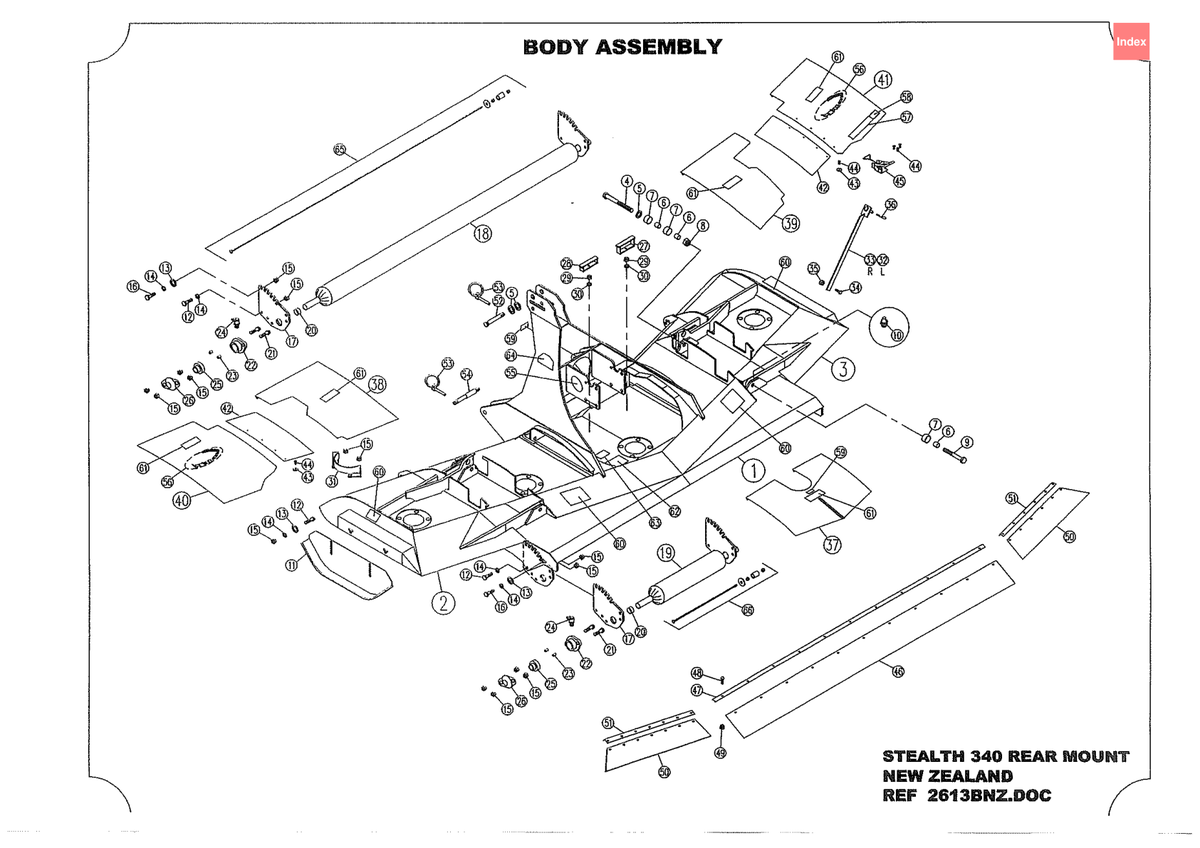

Stealth S1 - Body Assembly

Stealth S1 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	£17.53
5	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	£0.64
6	Bush - Inner Ring 401-021-860 More Info >	£22.50
7	Bush i See notes section for usage notes on this part 402-061-050 More Info >	£16.95
9	Bolt 301-220-803 More Info >	£6.87
10	Grease Nipple - 1/4" Short 208-442-600 More Info >	£1.96
11	Skid Weldment - Rear Mount ��6" Rollers ST i See notes section for usage notes on this part 412-320-112 More Info >	£133.60
12	Bolt 301-212-353 More Info >	£1.38
13	Washer - Heavy Flat 308-120-063 More Info >	£0.33
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
16	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	£1.54
18	Roller Weldment - FrST/RrSTFM i See notes section for usage notes on this part 414-320-015 More Info >	£583.12
19	Roller Weldment - Rear i See notes section for usage notes on this part 414-320-014 More Info >	£286.25
20	Sleeve 402-464-062 More Info >	£5.86
21	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	£1.74
23	Sleeve 402-480-740 More Info >	£4.23
24	Grease Nipple 208-442-620 More Info >	£2.07
26	Cap 410-464-072 More Info >	£19.11
29	Nut - Nyloc 307-208-053 More Info >	£0.43
30	Washer - Spring 308-080-043 More Info >	£0.33
32	Stay 417-332-064 More Info >	£26.70
33	Stay 417-332-065 More Info >	£26.70
34	Bolt 301-212-453 More Info >	£1.64
35	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	£0.53
36	R-Clip 206-443-400 More Info >	£1.01
38	Cover i See notes section for usage notes on this part 410-330-373 More Info >	£243.87
39	Cover i See notes section for usage notes on this part 410-330-374 More Info >	£243.87
40	Cover i See notes section for usage notes on this part 410-330-383 More Info >	£201.49
41	Cover i See notes section for usage notes on this part 410-330-384 More Info >	£201.49
42	Filler Rubber i See notes section for usage notes on this part 410-330-375 More Info >	£41.76
43	Washer - Fender 108-031-413 More Info >	£0.33
44	Blind Rivet 213-443-250 More Info >	£0.28
45	Adjustable Catch - Covers i See notes section for usage notes on this part 423-080-220 More Info >	£13.05
46	Flap 410-332-011 More Info >	Price on Request
47	Clamp Strip 410-332-032 More Info >	Price on Request
48	Bolt 301-206-203 More Info >	£0.43
49	Nut - Nyloc 307-206-053 More Info >	£0.33
50	Flap 410-332-000 More Info >	Price on Request
51	Clamp Strip 410-332-044 More Info >	Price on Request
52	Pin - Linkage - Top Link 419-301-150 More Info >	£7.60
53	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	£1.01
54	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	£17.85
55	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	£25.88
56	Decal 424-100-350 More Info >	Price on Request
57	Decal - Branding Stealth 424-100-410 More Info >	Price on Request
61	Decal - Safety - Service/Read OpMan/Belt Warning/No Step 424-101-080 More Info >	£6.02
65	Roller Scraper 404-320-127 More Info >	£41.50
66	Roller Scraper 404-320-128 More Info >	£14.58
