NOTES:

Part #	Number on image	Usage Notes
403-361-270	6	For serial numbers PCD353 and earlier, use [403-360-800] Gearbox Pully x4.
402-060-680	7	For serial numbers PCD353 and earlier, use [402-060-250] Gearbox Pully Bush x2.
405-425-940	9	Only use on serial numbers PCD354 and later.

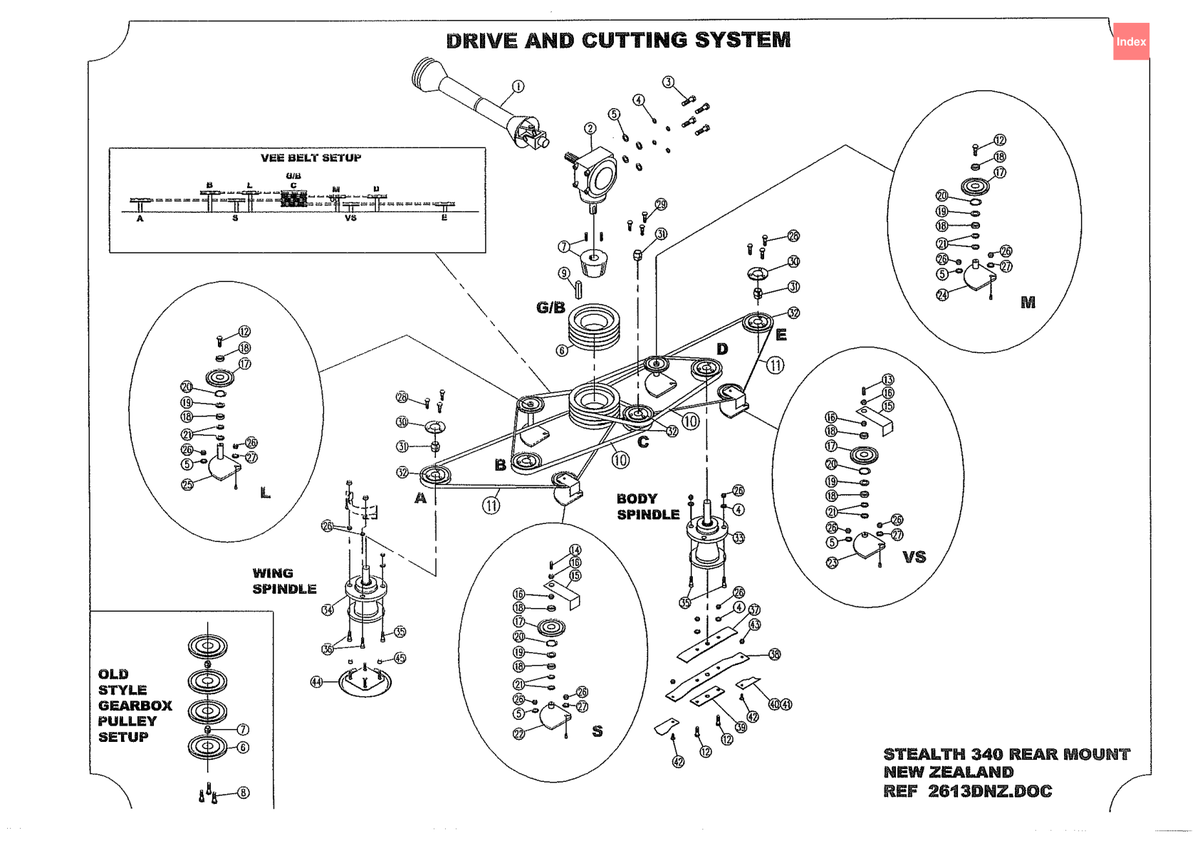

Stealth S1 - Drive & Cutting System

Stealth S1 340

Grouped product items
No.	Product Name	Price
1	PTO Complete Driveshaft - 900mm - 540/1000rpm (Trimax Specification) 406-340-840 More Info >	£391.79
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	£644.30
3	Bolt 301-212-303 More Info >	£1.27
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	£0.33
5	Washer - Heavy Flat 308-120-063 More Info >	£0.33
6	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-270 More Info >	£131.97
7	Bush - Taper Lock i See notes section for usage notes on this part 402-060-680 More Info >	£43.76
9	Key i See notes section for usage notes on this part 405-425-940 More Info >	£7.94
10	Vee Belt 404-040-830 More Info >	£22.91
11	Vee Belt 404-041-300 More Info >	£37.91
12	Bolt 301-212-453 More Info >	£1.64
14	Stud 403-330-443 More Info >	£1.43
15	Belt Retainer Guide 417-330-450 More Info >	£16.56
16	Nut - Half 307-212-023 More Info >	£1.01
17	Pulley - Idler 403-360-110 More Info >	£20.59
18	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	£10.30
19	Washer - Flat 108-071-413 More Info >	£1.22
21	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	£0.33
22	Idler Tower Incl Base 403-330-423 More Info >	£55.89
23	Idler Tower Incl Base 403-330-424 More Info >	£53.82
24	Idler Tower Incl Base 403-330-432 More Info >	£39.97
25	Idler Tower Incl Base 403-330-442 More Info >	£49.52
26	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	£0.80
28	Bolt 301-208-203 More Info >	£0.58
29	Bolt 301-208-403 More Info >	£1.01
30	Retainer Ring 402-060-450 More Info >	£6.66
31	Bush 402-060-320 More Info >	£20.19
32	Pulley 403-360-300 More Info >	£35.19
33	Spindle Assembly - Type 5b Ext 50mm 504-328-013 More Info >	£443.67
35	Cap Screw 303-212-505 More Info >	£2.01
36	Bolt 301-212-553 More Info >	£2.27
37	Backing Plate - Blade Beam 411-322-710 More Info >	£16.11
38	Beam - Std - Blade Mounting 411-322-760 More Info >	£28.03
39	Clamp Plate - Blade Beam 411-322-800 More Info >	£5.28
40	Blade - Spindle - Flat 411-160-700 More Info >	£7.42
41	Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702 More Info >	£7.42
42	Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100 More Info >	£3.28
43	Nut - Nyloc 307-210-053 More Info >	£0.53
44	Disc Anti-scalp Rotating - E Type 4 Stud 503-325-475 More Info >	£111.65
45	Bush 402-060-970 More Info >	£0.33
